Resistors
BB1110TB, BB1110B, BB1110I and
BB2110DI DDR SDRAM
Terminator Networks
BB 1110 / 2110 Series
18 Bit SSTL_2 Termination Sets.
Compliant to JEDEC Std. 8-9B.
Superior High Frequency Performance.
Minimal stray capacitance and inductance are achieved
by placing resistors and BGA termination on the same
side of ceramic substrate.
The device can be easily surface mounted using automatic
Pick and Place equipment
Make Possible
All Pb-free parts comply with EU Directive 2011/65/EU (RoHS2)
Description
This “BB” family of networks is for terminating SSTL_2 Class I and Class II systems, such as DDR SDRAM. These
specialty networks employ solder balls for surface mount flip chip attachment. Their unique construction yields
extremely low capacitance and inductance parasitics making them ideal for high-speed bus applications.
Electrical
Parameter (Maximum)
Resistance, Nominal
Absolute Tolerance
Temperature Coefficient of
Resistance
Interlead Capacitance, Maximum
Operation Temperature
Power Rating (per package)
Limit
Various
1
200
0.1
-55 to 125
1
Units
Ω
%
ppm/°C
pF
°C
watt

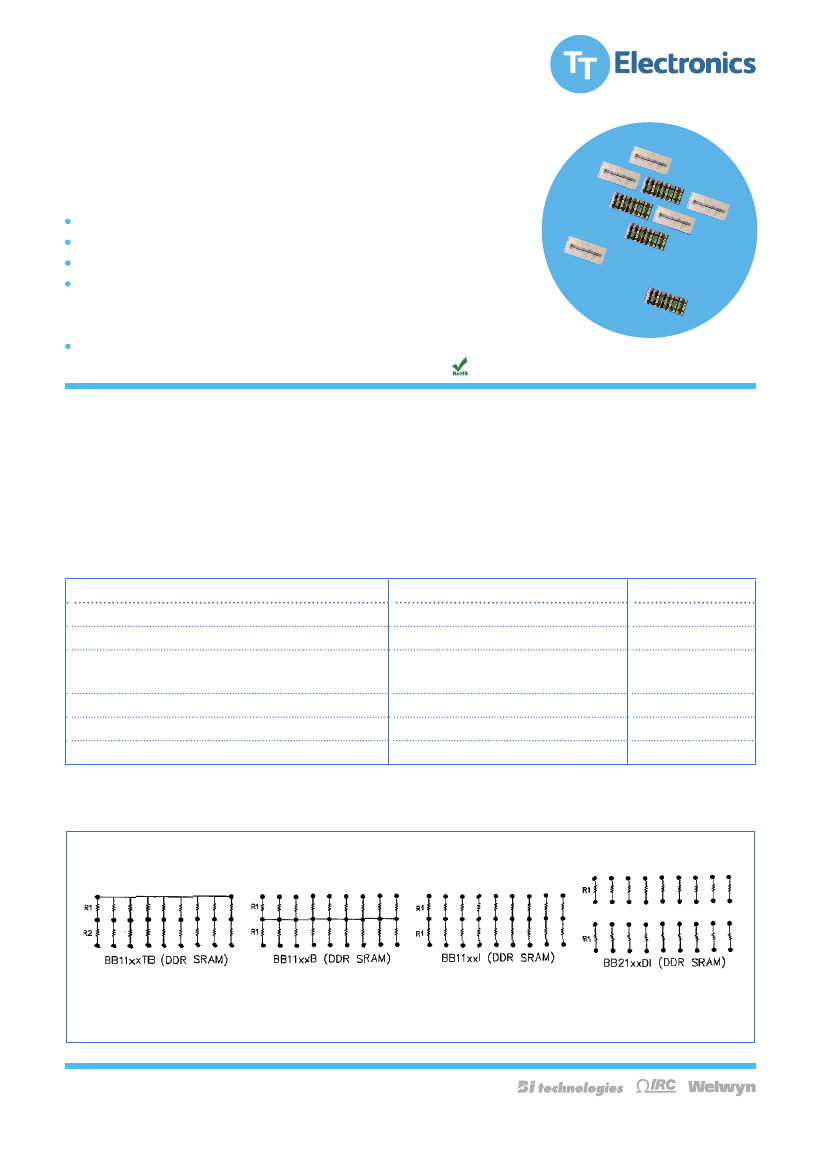

Schematic
xx denotes part number options. See ordering information for details.
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsresistors.com
© TT Electronics plc
07.14
BB1110TB, BB1110B, BB1110I
and BB2110DI DDR SDRAM Terminator Networks
BB 1110 / 2110 Series
Make Possible

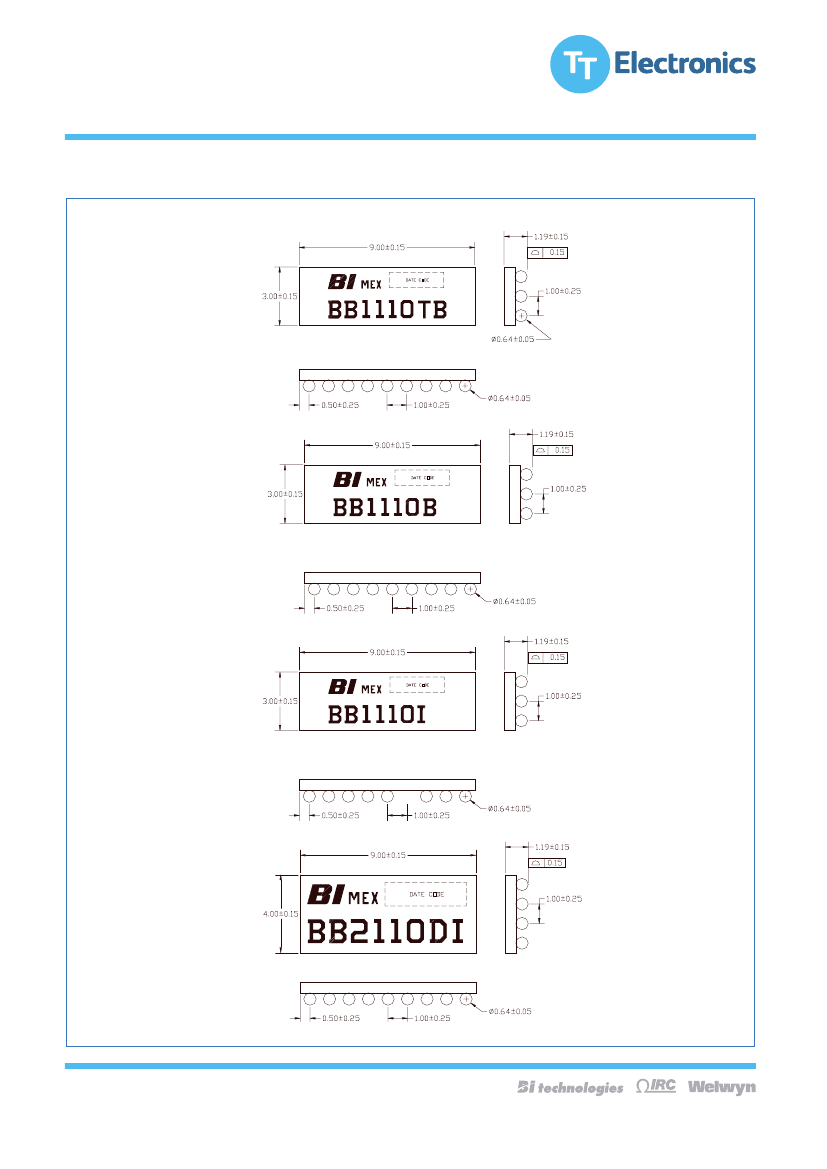

Dimensions (mm)
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsresistors.com
© TT Electronics plc
07.14
BB1110TB, BB1110B, BB1110I
and BB2110DI DDR SDRAM Terminator Networks
BB 1110 / 2110 Series
Make Possible
Ordering Information
Part Number
BB1110TB
BB1111TB
BB1112TB
BB1113TB
BB1110B
BB1111B
BB1112B
BB1110DI
BB1111DI
BB11112DI
BB11113DI
BB1110I
Resistor Number
R1/R2
R1/R2
R1/R2
R1/R2
R1
R1
R1
R1
R1
R1
R1
R1
Resistor value (Ω)
50/25
25/22
60/25
60/60
50
100
25
25
22
33
47
25
Array
3X9
3X9
3X9
3X9
3X9
3X9
3X9
4X9
4X9
4X9
4X9
3X9
Pitch (mm)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Tape/Reel
Capacity 7”
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Tape/Reel
Capacity 13”
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
4000
Add 7 for 7-inch reel or 13 for 13-inch reel to part number.
Example:
BB1110B7 (1000 parts packaged in 7 inch reel)
BB1110B13 (4000 parts packaged in 13 inch reel)
Application Notes
Schematics per JEDEC Standard No. 8-9B.
BB1110B
BB2110DI

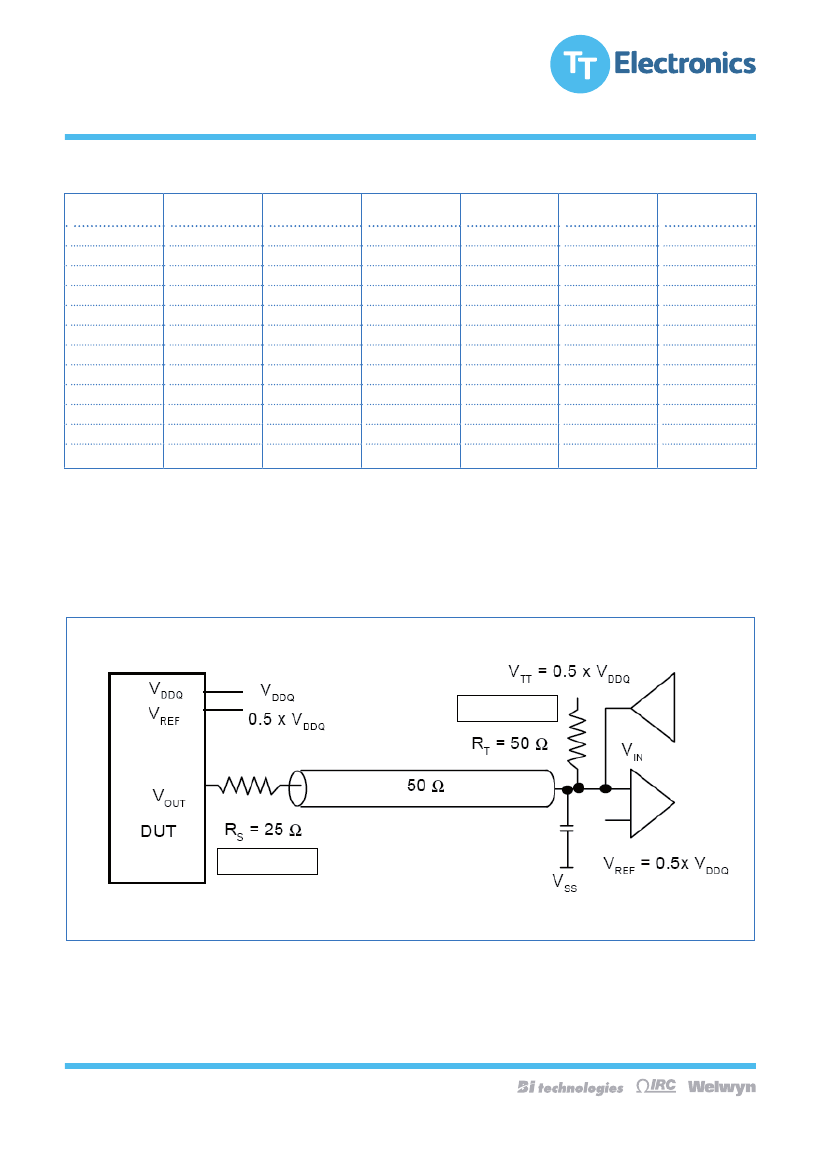

SSTL_2, Class I, symmetrically single parallel terminated output load, and series resistor
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsresistors.com
© TT Electronics plc
07.14
BB1110TB, BB1110B, BB1110I
and BB2110DI DDR SDRAM Terminator Networks
BB 1110 / 2110 Series
Make Possible
BB1110B
BB1110B

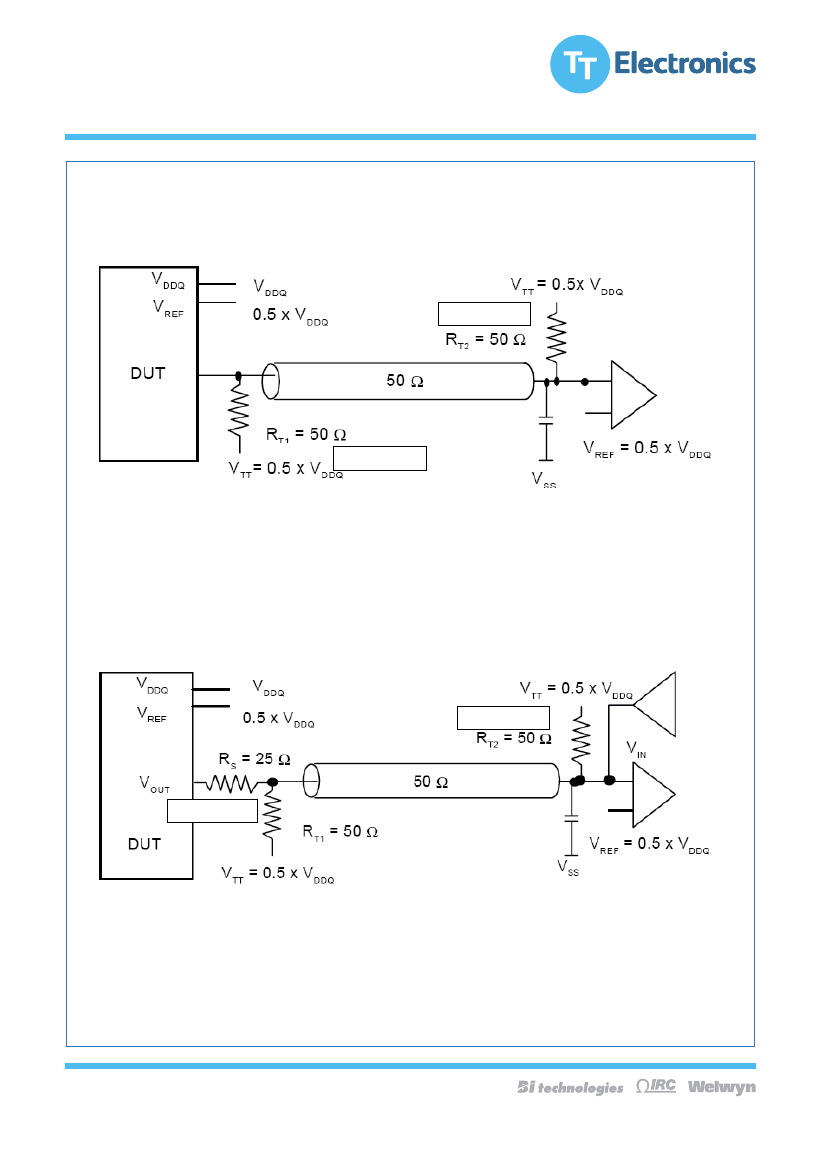

SSTL_2, Class I, buffer with symmetrically double parallel terminated output load
BB1110B
BB1110TB
SSTL_2, Class II, symmetrically double parallel terminated output load with series resistor
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
www.ttelectronicsresistors.com
© TT Electronics plc
07.14
