391002210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 391002210

391002210: DescriptionBarrier Strip Terminal Block, 40A, 2 Row(s), 1 Deck(s),; CategoryThe connector; File Size174KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

391002210 Overview

Barrier Strip Terminal Block, 40A, 2 Row(s), 1 Deck(s),

391002210 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, PA66
Fastening method	SCREW
Manufacturer's serial number	39100
Number of layers	1
Rows	2
Number of channels	10
Rated current	40 A
Rated voltage	600 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	8 AWG

Preview

Download Datasheet

View All

PART NUMBER DATA

CIRCUITS

PART

NUMBER

391002202

391002203

391002204

391002205

391002206

391002207

391002208

391002209

391002210

391002211

391002212

ENGINEERING

NUMBER

M800-03-02-5-M1

M800-03-03-5-M1

M800-03-04-5-M1

M800-03-05-5-M1

M800-03-06-5-M1

M800-03-07-5-M1

M800-03-08-5-M1

M800-03-09-5-M1

M800-03-10-5-M1

M800-03-11-5-M1

M800-03-12-5-M1

COLOR

WHITE

A IN mm

.79

1.26

1.73

2.20

2.68

3.15

3.62

4.09

4.57

5.04

5.51

20.0

32.0

44.0

56.0

68.0

80.0

92.0

104.0

116.0

128.0

140.0

B IN mm

.472

.945

1.417

1.890

2.362

2.835

3.307

3.780

4.252

4.724

5.197

12.00

24.00

36.00

48.00

60.00

72.00

84.00

96.00

108.00

120.00

132.00

.472

12.00

.91

REF. LAST 2 DIGITS OF PART NUMBER EQUAL CIRCUIT COUNT

NOTE: IF THIS PRODUCT IS STORED IN AN

ENVIRONMENT WITH A RELATIVE HUMIDITY

OF LESS THAN 50%, MOISTURE MUST BE

ADDED. REFER TO TECHNICAL ADVISORY

AS 45499-001 FOR INSTRUCTIONS.

.472

12.00

.374

.88

.35

.54

CONTACT FACTORY FOR OPTIONAL COLORS

D E

.63

3910022

600V 40A

1.Material:

(A) Screw: Steel, Zinc plated

(B) Body: PA66 UL94 V-0

(D) Terminal: Stainless Steel

2.Rating: 600V, 40amps

3.Wire range: 20-8 AWG

4.Max torque: 7.0 in lbs.

5.Dielectric voltage withstand: DC 3000V for 1 minute.

7.Rated Impulse Voltage: 4000V, Plus and Minus 5 times each

8.Strip Length: .24 in. (6.0mm)

3910022

600V 40A

SPECIFICATIONS:

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

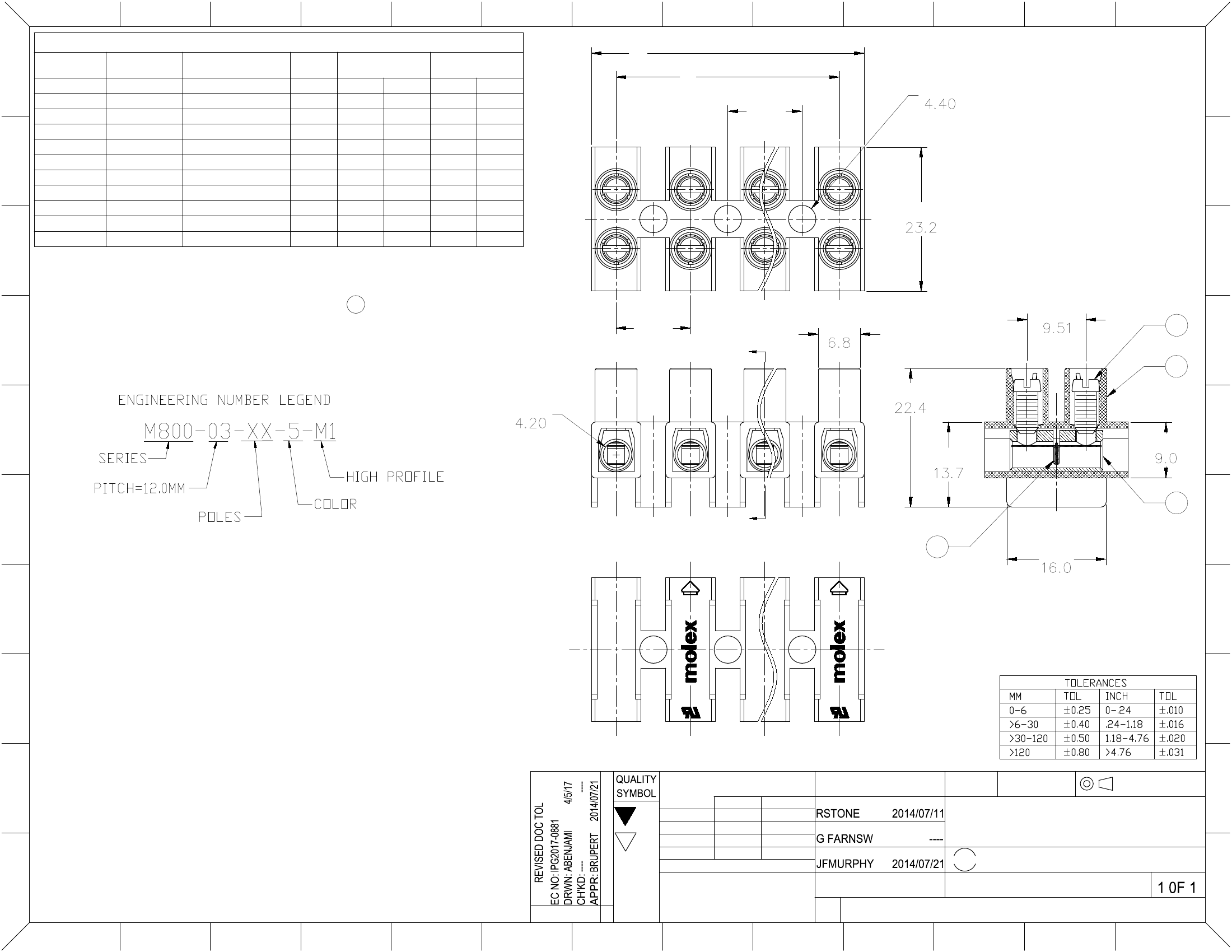

molex

TERMINAL STRIP 12MM

HIGH PROFILE 600V

----

MOLEX INCORPORATED

SHEET NO.

11.All dims. shown are for reference only

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39100-015

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
