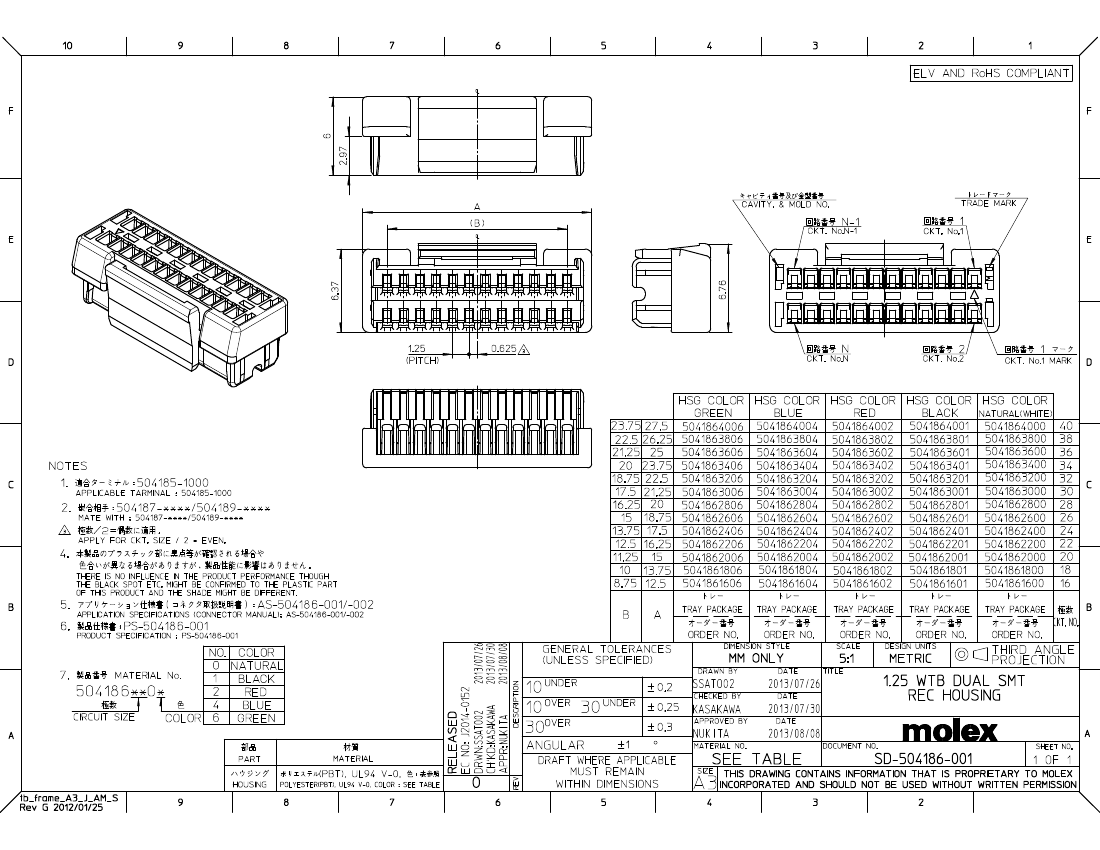

5041862600 Overview

125 WB DUAL REC HSG 26P

5041862600 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
body width0.251 inch
subject depth0.236 inch
body length0.738 inch
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
Durability30 Cycles
Minimum insulation diameter0.031 inch
Insulation resistance100000000 Ω
Insulator colorNATURAL
Plug contact pitch0.049 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts26
Maximum wire diameter26 AWG
Minimum wire diameter30 AWG
