Part Number:
Status:
Description:
0014600247
Active
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,
Single Row, Version C, Front Ribs, Wire Size 24, 3.81µm (150µ") Tin/Lead (SnPb), 24
Circuits
Documents:
3D Model

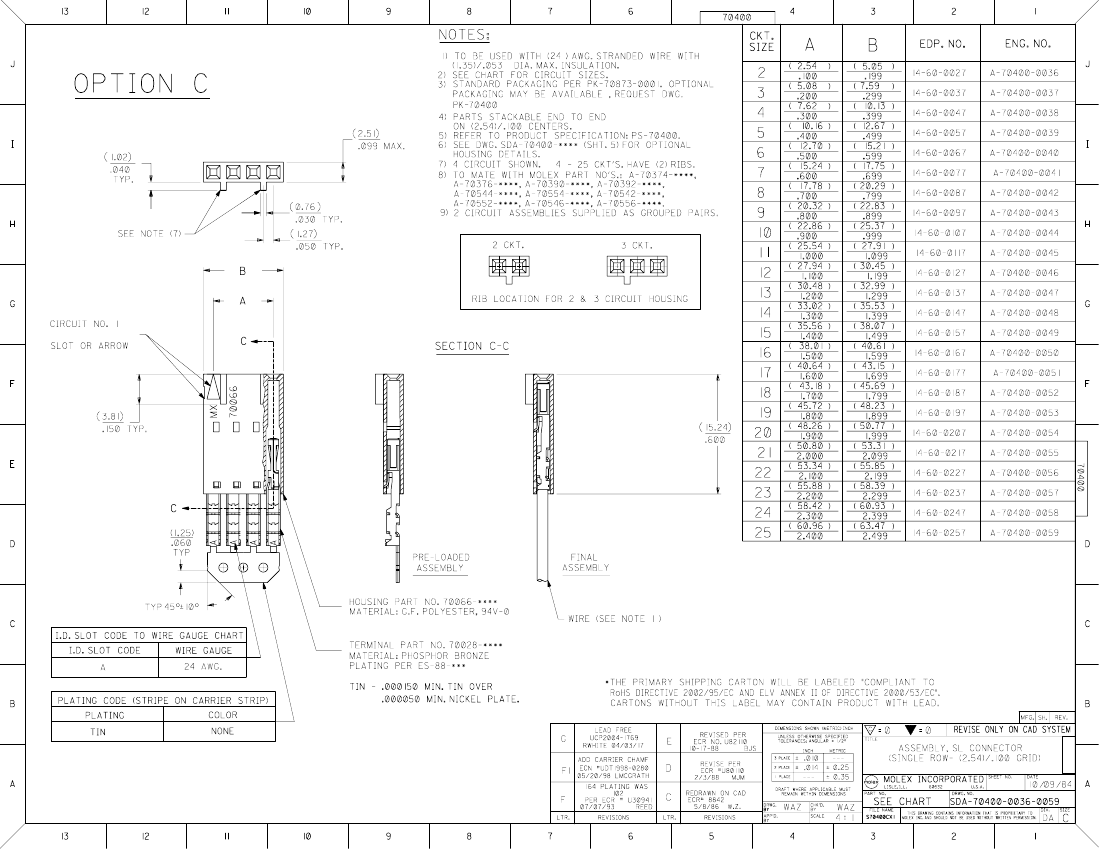

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
70400
Terminals Preloaded
Housing
No
SL™
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
24
Black
25
Vertical
94V-0
None
Phosphor Bronze
Tin
Tin
Polyester Alloy
1
None
Tube
0.100 In
2.54 mm
150
3.75
75
1.875
Yes
Yes
N/A
-40°C to +105°C
IDT or Pierce
1.35mm (.053") max.
24
Discrete Wire, Ribbon Cable
Search Parts in this Series
70400Series
Mates With
70544, 70546, 70554 , 70556
Use With
7307 Tinned 28AWG, 7767 Topcoat
28AWG, 24241 Tinned 26AWG, 8996
Topcoat 26AWG, 24226 Tinned 24AWG,
8997 Topcoat 24AWG, 24369 High Flex
26AWG, 24389 High Flex 24AWG
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hawk Semi-
0011201337
Automatice Discrete
Wire Terminator for
SL - Rebuilt US*
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
