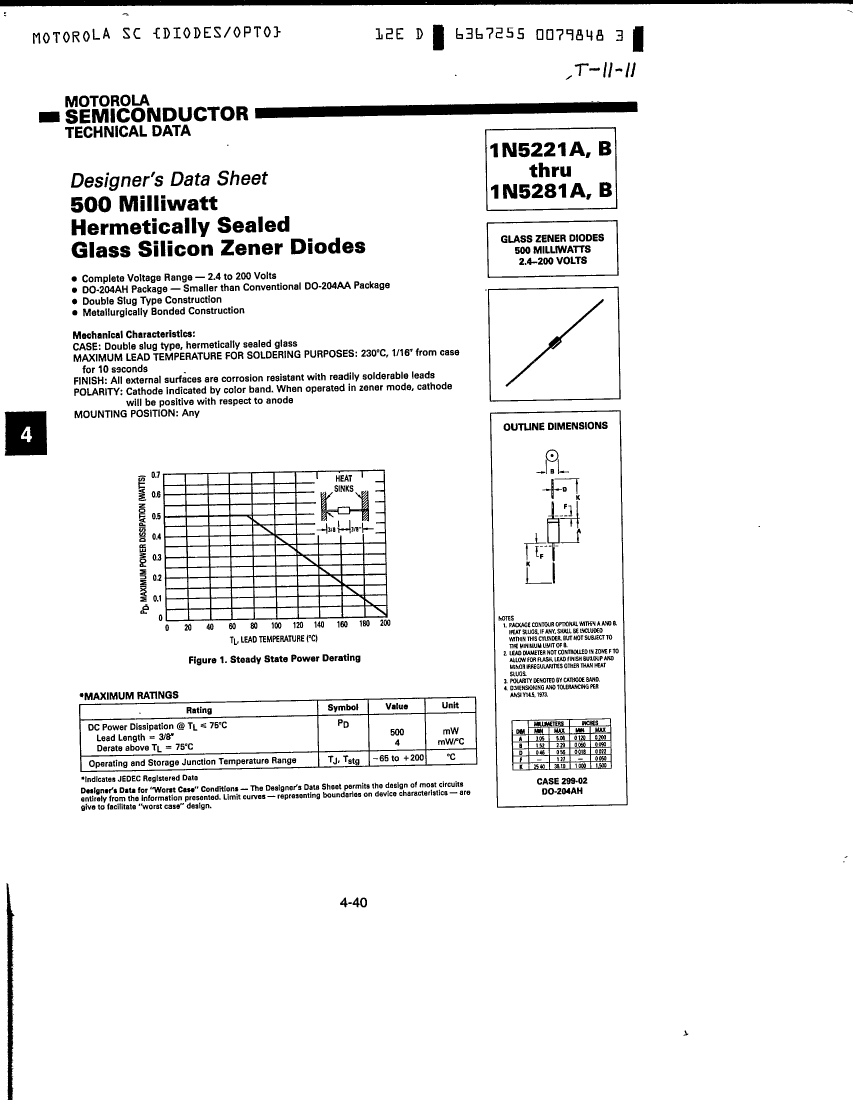

Zener Diode, 9.1V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH

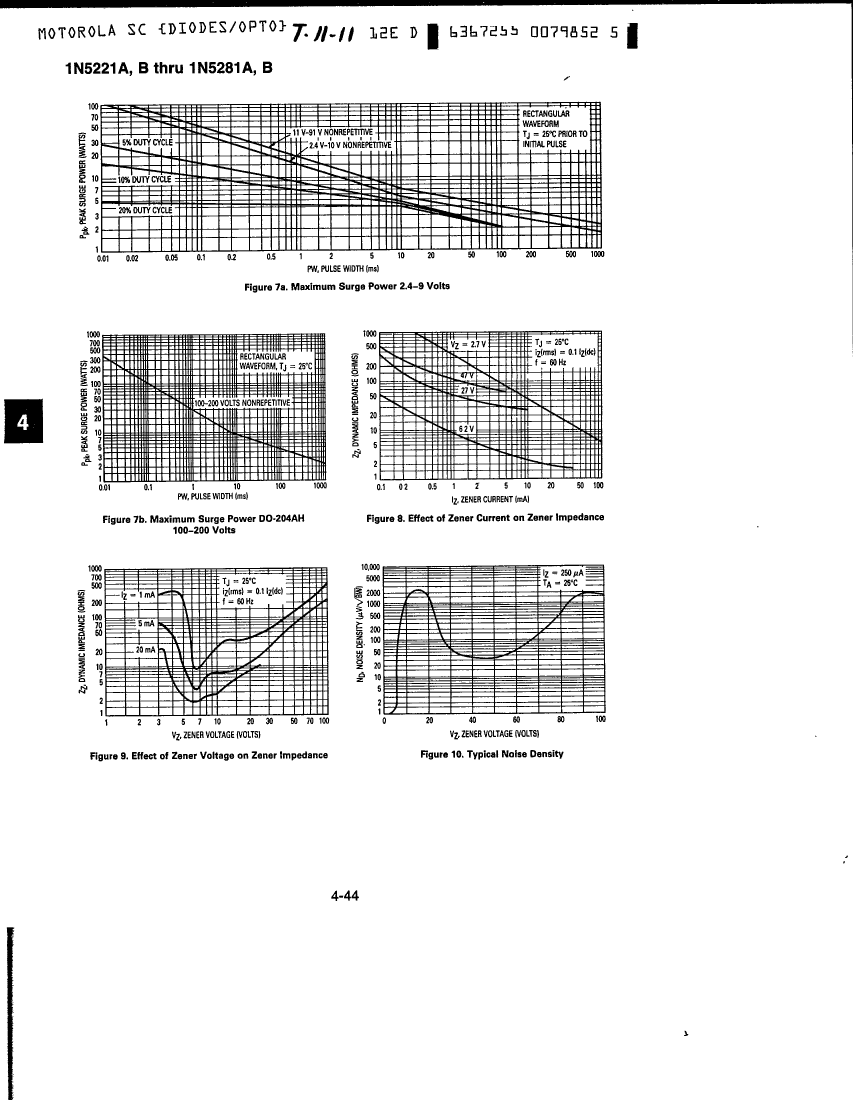

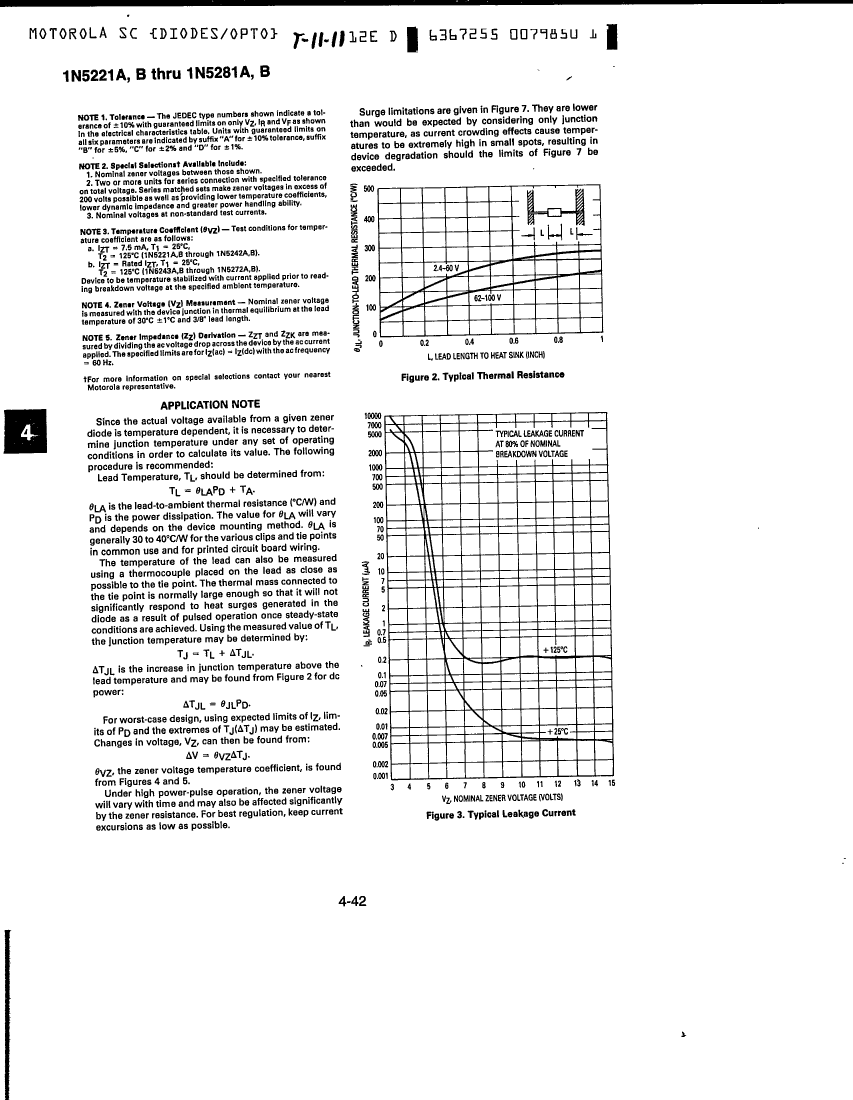

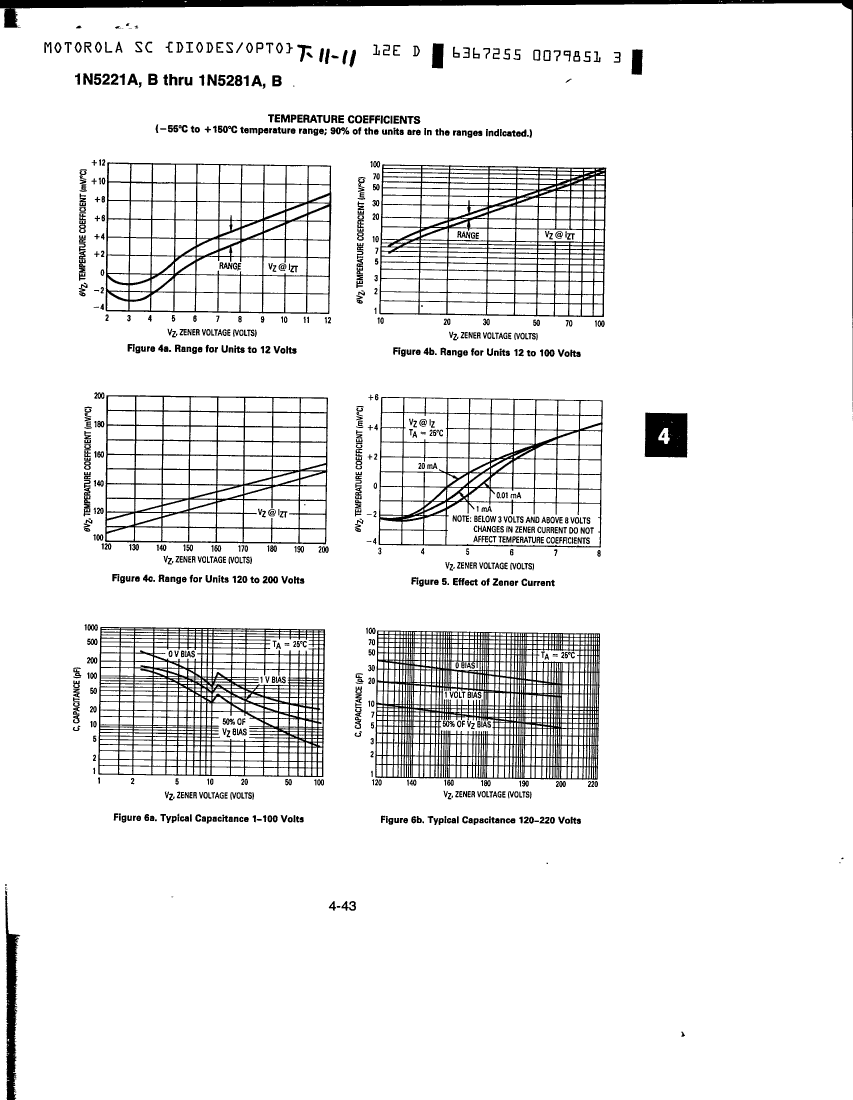

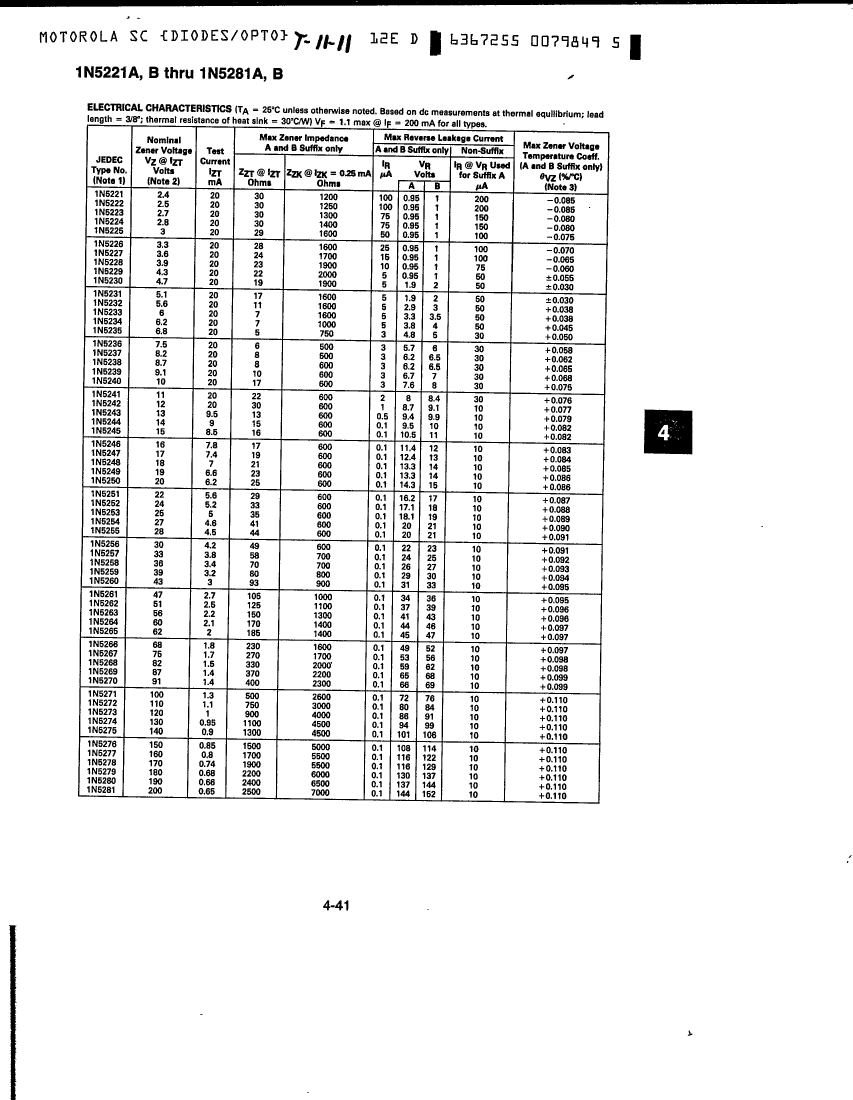

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | O-LALF-W2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| Maximum dynamic impedance | 10 Ω |
| JEDEC-95 code | DO-204AH |
| JESD-30 code | O-LALF-W2 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -65 °C |
| Package body material | GLASS |
| Package shape | ROUND |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 0.5 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 9.1 V |
| Maximum reverse current | 30 µA |
| surface mount | NO |
| technology | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage tolerance | 10% |
| Working test current | 20 mA |
| 1N5239 | 1N5221 | 1N5227 | 1N5228 | 1N5234 | 1N5240 | 1N5264 | 1N5265 | 1N5275 | 1N5280 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Zener Diode, 9.1V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 2.4V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH, | Zener Diode, 3.6V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 3.9V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 6.2V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 10V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 60V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 62V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 140V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH | Zener Diode, 190V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-204AH |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JEDEC-95 code | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH | DO-204AH |
| JESD-30 code | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Package body material | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 9.1 V | 2.4 V | 3.6 V | 3.9 V | 6.2 V | 10 V | 60 V | 62 V | 140 V | 190 V |
| Maximum reverse current | 30 µA | 200 µA | 100 µA | 75 µA | 50 µA | 30 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage tolerance | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% |
| Working test current | 20 mA | 20 mA | 20 mA | 20 mA | 20 mA | 20 mA | 2.1 mA | 2 mA | 0.9 mA | 0.66 mA |
| package instruction | O-LALF-W2 | O-LALF-W2 | - | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | - | - | O-LALF-W2 | O-LALF-W2 |
| Maximum dynamic impedance | 10 Ω | - | - | 23 Ω | - | - | 170 Ω | 185 Ω | 1300 Ω | 2400 Ω |
