M2058/M2059 Series
SPECIFICATION FOR 5.0x7.0mm LVPECL/LVDS SMT OSCILLATOR
FEATURES
LVPECL/LVDS Differential Output
RMS Phase Jitter < 100 fs, 12 kHz to 20 MHz
(156.25 MHz, PECL output)
Low Phase Noise
rd
3 Overtone crystal technology
Compliant to RoHS directive
APPLICATIONS
10 Gigabit Ethernet switches/routers
Network Interface
Ordering Information:
Product Family
(Supply Voltage Option)
Temperature Range
Code
2
6
Value
-40 °C to +85 °C
-20 °C to +70 °C
Stability *
Code
3
4
6
8
Value
±100 ppm
±50 ppm
±25 ppm
±20 ppm
Code
B
U
S
Enable/Disable
Value
Enable High (pad 1)
No Enable/Disable
Enable High (pad 2)
Logic Type
Code
P
L
Value
LVPECL
LVDS
Package/Lead
Configuration
Code
N
Value
Leadless
Frequency
M2058
(3.3V)
XXX.XXXX MHz
M2059
(2.5V)
Example: M206024BPN 156.2500 MHz
M2058
2
4
B
P
Stability includes initial tolerance @ +25°C, deviation over operating temperature, variations to supply voltage, load, vibration and shock
.
N
156.2500 MHz
LVPECL Electrical Specifications:
Parameter
Frequency of Operation
Frequency Stability
Aging
Output Type
Output Load
Symmetry (duty cycle)
Logic Level “1”
Logic Level “0”
Rise/Fall Time
Start-up Time
Enable Logic
Disable Logic
Operating Voltage
Supply Current
Phase Jitter (RMS)
V
CC
I
CC
Φ
J
3.135
3.300
Other Parameters
0.100
ps
12 KHz to 20 MHz
156.25 MHz
Revision 1
06/10/15
Page 1 of 6
The information contained herein is proprietary to MtronPTI and is submitted in confidence.
This information may not be copied or divulged without written permission from MtronPTI.
Symbol
F
O
F/F
Min.
25
Typ.
Max.
220
Units
MHz
Conditions
Frequency Stability
-5
See ordering information
+5
ppm
1
st
year
RF Output
LVPECL Compatible
50
Ω
to (Vcc-2.0) V
DC
V
OH
V
OH
T
DC
T
R
/T
F
T
SU
45
V
cc
-1.025
V
cc
-1.810
0.2
70% V
CC
or
N/C
30% V
CC
55
V
cc
-0.880
V
cc
-1.620
0.4
10
V
%
V
V
ns
ms
V
V
V
mA
Ref. to 50% of waveform
20% to 80% of waveform
T
ambient
= +25°C
Pad 1 or Pad 2:
Output Enabled
Pad 1 or Pad 2:
Output Disabled to high-Z
Supply Voltage & Power Consumption
3.465
75
M2058/M2059 Series
SPECIFICATION FOR 5.0x7.0mm LVPECL/LVDS SMT OSCILLATOR
LVDS Electrical Specifications:
Parameter
Frequency of Operation
Frequency Stability
Aging
Output Type
Output Load
Symmetry (duty cycle)
Differential Output
Voltage
Output Offset Voltage
Rise/Fall Time
Start-up Time
Enable Logic
Disable Logic
Operating Voltage
Supply Current
Phase Jitter (RMS)
V
CC
I
CC
Φ
J
3.135
3.300
Symbol
F
O
F/F
-5
Min.
25
Typ.
Max.
220
Units
MHz
Conditions
Frequency Stability
See ordering information
+5
ppm
1
st
year
RF Output
LVDS Compatible
100
Ω
Differential
V
OH
V
DIFF
V
OS
T
R
/T
F
T
SU
45
250
1.125
70% V
CC
or
N/C
30% V
CC
350
1.250
0.2
55
450
1.375
0.4
10
V
%
mV
V
ns
ms
V
V
V
mA
ps
12 KHz to 20 MHz
156.25 MHz
Ref. to 50% of waveform
peak-to-peak differential
output voltage
20% to 80% of waveform
T
ambient
= +25°C
Pad 1 or Pad 2:
Output Enabled
Pad 1 or Pad 2:
Output Disabled to high-Z
Supply Voltage & Power Consumption
3.465
40
Other Parameters
0.150
Environmental & Packaging Requirements:
Storage Temperature
Mechanical Shock
Vibration
Aging
Humidity
Thermal Cycle
Hermeticity
Moisture Sensitivity Level
Solderability
Max. Soldering Conditions
Pad Termination
Package Type
-55°C to 125°C
Per MIL-STD-202, Method 213, Condition E
Per MIL-STD-202, Method 204D, Condition D
+85°C ±3°C, 720H (No BIAS)
+40°C ±2°CX90~95%, 96H (NO BIAS)
Per MIL-STD-883, Method 1011, Condition A
Per MIL-STD-202, Method 112 (1 x 10
-8
atm cc/s of Helium)
MSL1
Per EIAJ-STD-002, Method 208
See solder profile, Figure 1
Gold, 1 µm maximum thickness
6-pad 5.0 X 7.0 mm leadless ceramic. RoHS compliant.
Page 2 of 6
The information contained herein is proprietary to MtronPTI and is submitted in confidence.
This information may not be copied or divulged without written permission from MtronPTI.
M2058/M2059 Series
SPECIFICATION FOR 5.0x7.0mm LVPECL/LVDS SMT OSCILLATOR
Marking, Pin Out:
Pad
1
2
3
4
5
6
Function
Enable/Disable or N/C
Enable/Disable or N/C
Ground
Output
Complementary Output
+V
CC
Line 1
Line 2
Line 3
Part Marking
M2058/M2059
FFFMFFFF
M yy ww vv
M
F
yy
ww
vv
Legend
MtronPTI
Frequency
Year
Work Week
Factory code

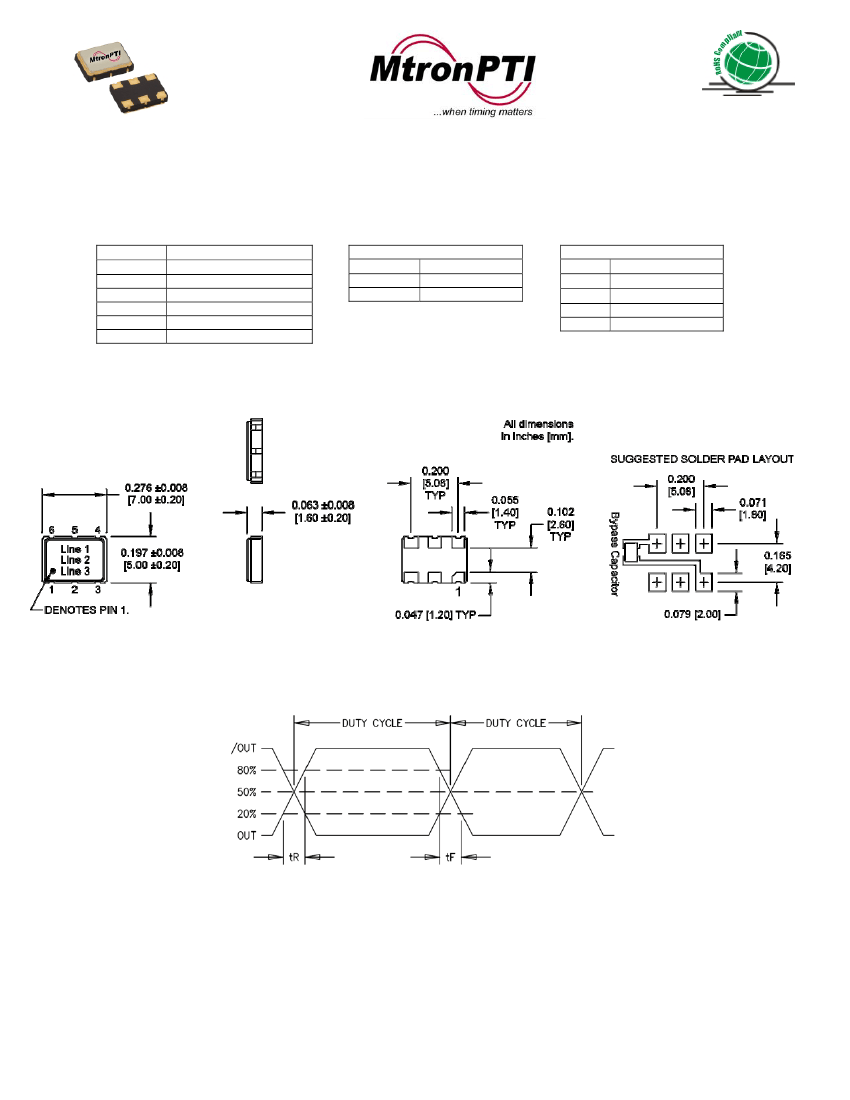

Dimensions:
Output Waveform:
Page 3 of 6
The information contained herein is proprietary to MtronPTI and is submitted in confidence.
This information may not be copied or divulged without written permission from MtronPTI.
M2058/M2059 Series
SPECIFICATION FOR 5.0x7.0mm LVPECL/LVDS SMT OSCILLATOR

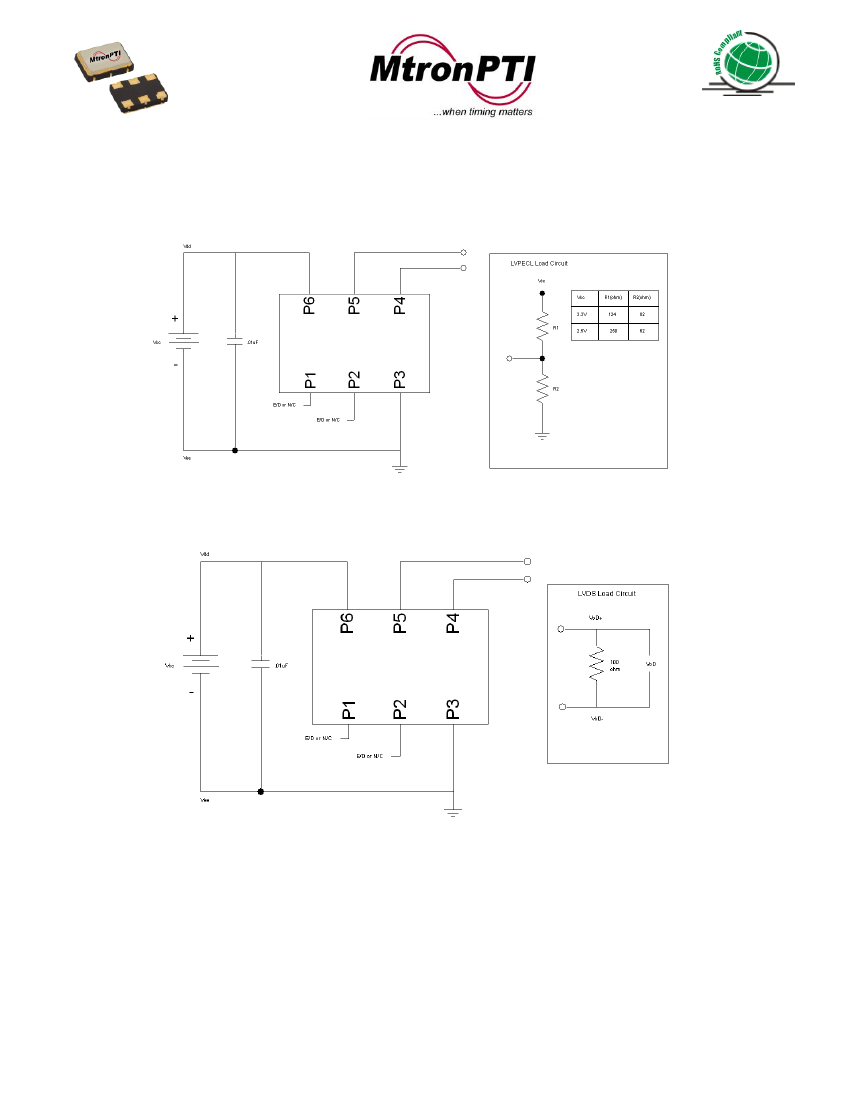

Typical LVPECL Test Circuit & Load Circuit Diagrams:
Typical LVDS Test Circuit & Load Circuit Diagrams:
Page 4 of 6
The information contained herein is proprietary to MtronPTI and is submitted in confidence.
This information may not be copied or divulged without written permission from MtronPTI.
M2058/M2059 Series
SPECIFICATION FOR 5.0x7.0mm LVPECL/LVDS SMT OSCILLATOR

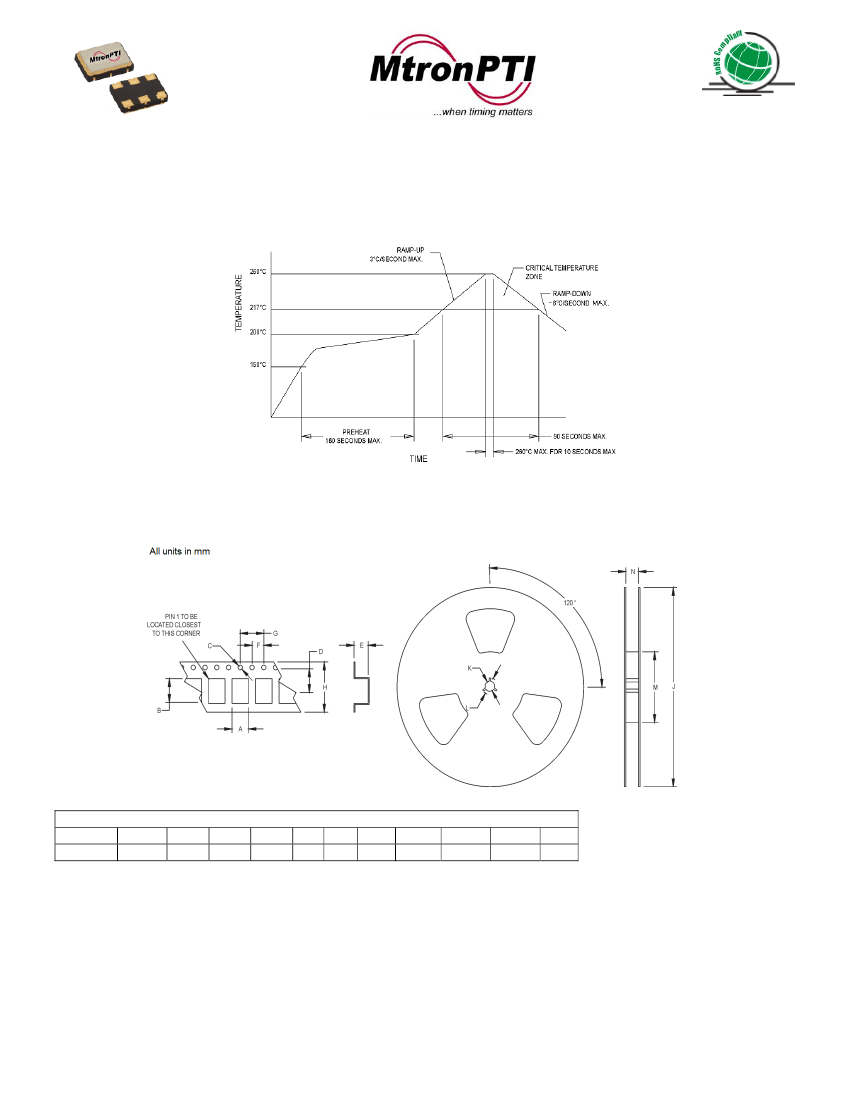

Soldering Conditions:
Figure 1
Figure 1
Tape and Reel Specifications:
Tape and Reel Specifications
A
B
C
D
5.32
7.28
1.5
7.5
E
2.2
F
4
G
8
H
16
J
178
K
13.5
L
24.8
M
80
Page 5 of 6
The information contained herein is proprietary to MtronPTI and is submitted in confidence.
This information may not be copied or divulged without written permission from MtronPTI.
