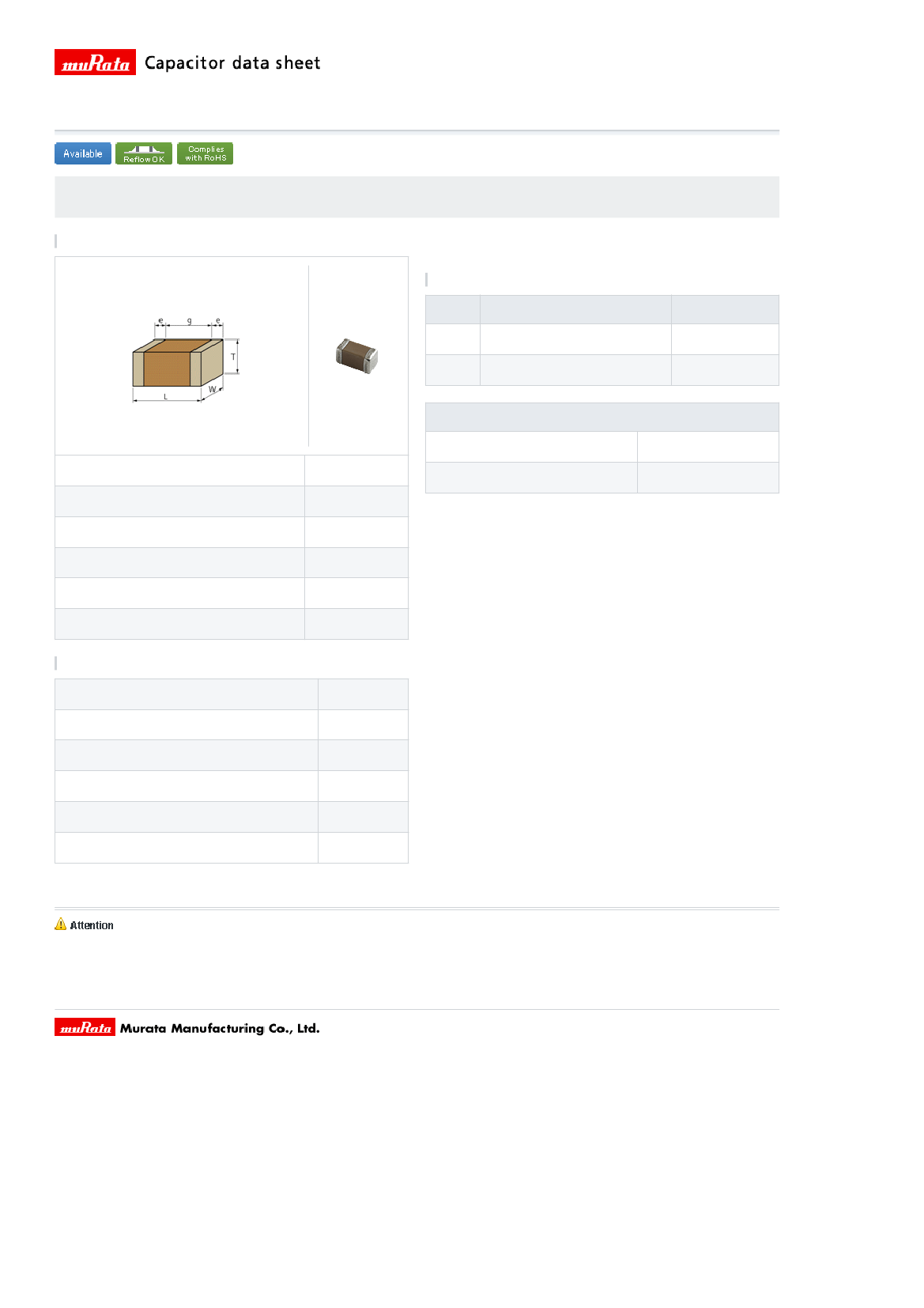

Preview

GRM32ER71H475MA88K: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM32ER71H475MA88K Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT

GRM32ER71H475MA88K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

GRM32ER71H475MA88#

# indicates a package specification code.

< List of part numbers with package codes >

GRM32ER71H475MA88L , GRM32ER71H475MA88K

Shape

References

Packaging

L

K

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

1000

4000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

3.2 ±0.3mm

2.5 ±0.2mm

0.3mm min.

1.0mm min.

1210 (3225)

φ180mm Reel

110mg

168g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

4.7µF ±20%

50Vdc

X7R(EIA)

±15.0%

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
