LQW2UASR10G0CL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQW2UASR10G0CL

LQW2UASR10G0CL: DescriptionGeneral Purpose Inductor, 0.1uH, 2%, 1 Element, Non-magnetic-Core, SMD, CHIP, 1008; CategoryPassive components inductor; File Size696KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQW2UASR10G0CL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LQW2UASR10G0CL	-	-	View	Buy Now

LQW2UASR10G0CL Overview

General Purpose Inductor, 0.1uH, 2%, 1 Element, Non-magnetic-Core, SMD, CHIP, 1008

LQW2UASR10G0CL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 1008
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Samacsys Description	LQW2UAS_0C Series Inductor 100nH ±2% 1008 (2520)
core material	NON-MAGNETIC
DC Resistance	0.56 Ω
Nominal inductance(L)	0.1 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.65 A
self resonant frequency	1000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 350 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	25 MHz
Tolerance	2%

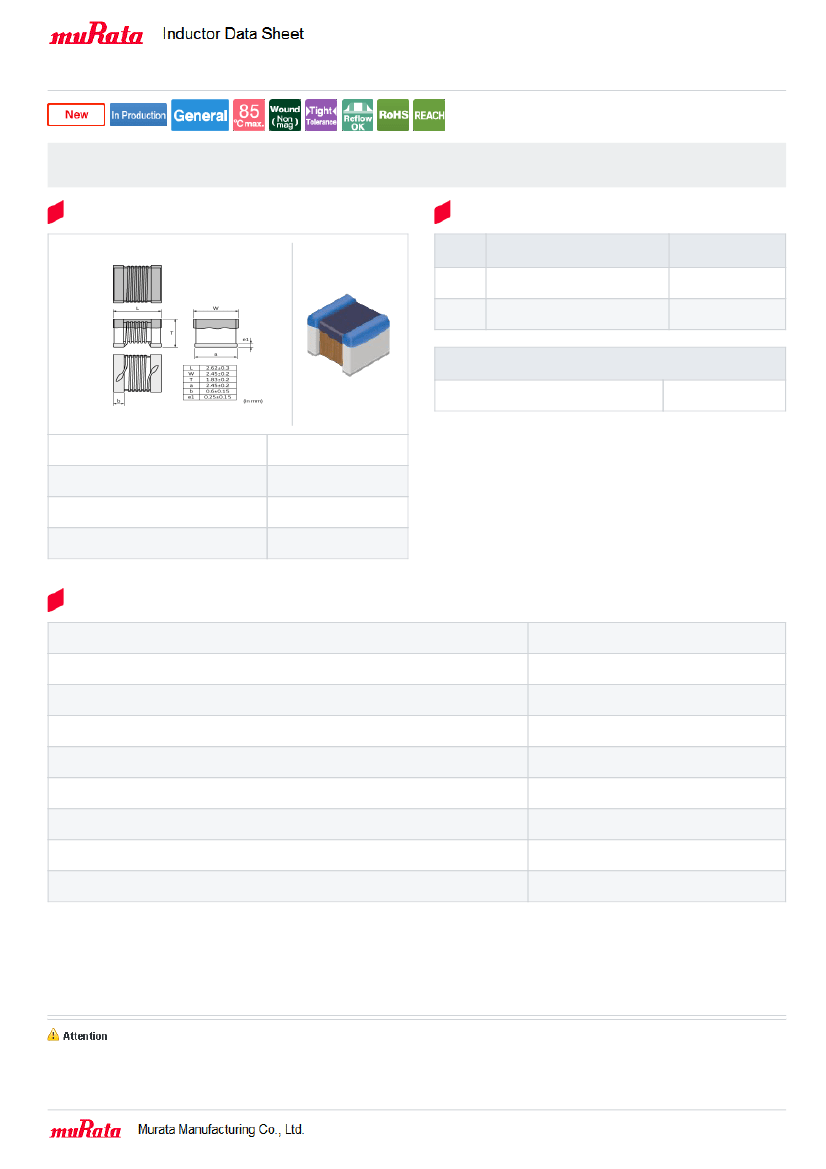

Preview

Download Datasheet

View All

LQW2UASR10G0C#

< List of part numbers with package codes >

“#” indicates a package specification code.

LQW2UASR10G0CL , LQW2UASR10G0CB

Shape

References

Packaging

code

Specifications

φ180mm

Embossed taping

Packing in bulk

Minimum quantity

2000

500

Mass (Typ.)

1 piece

0.039g

L size

W size

T size

Size code in inch (mm)

2.62 ±0.3mm

2.45 ±0.2mm

1.83 ±0.2mm

1008 (2520)

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

Series

100nH ±2%

25MHz

650mA

0.56Ω

350MHz

1000MHz

-40℃ to 85℃

LQW2UAS_0C

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/12/04
