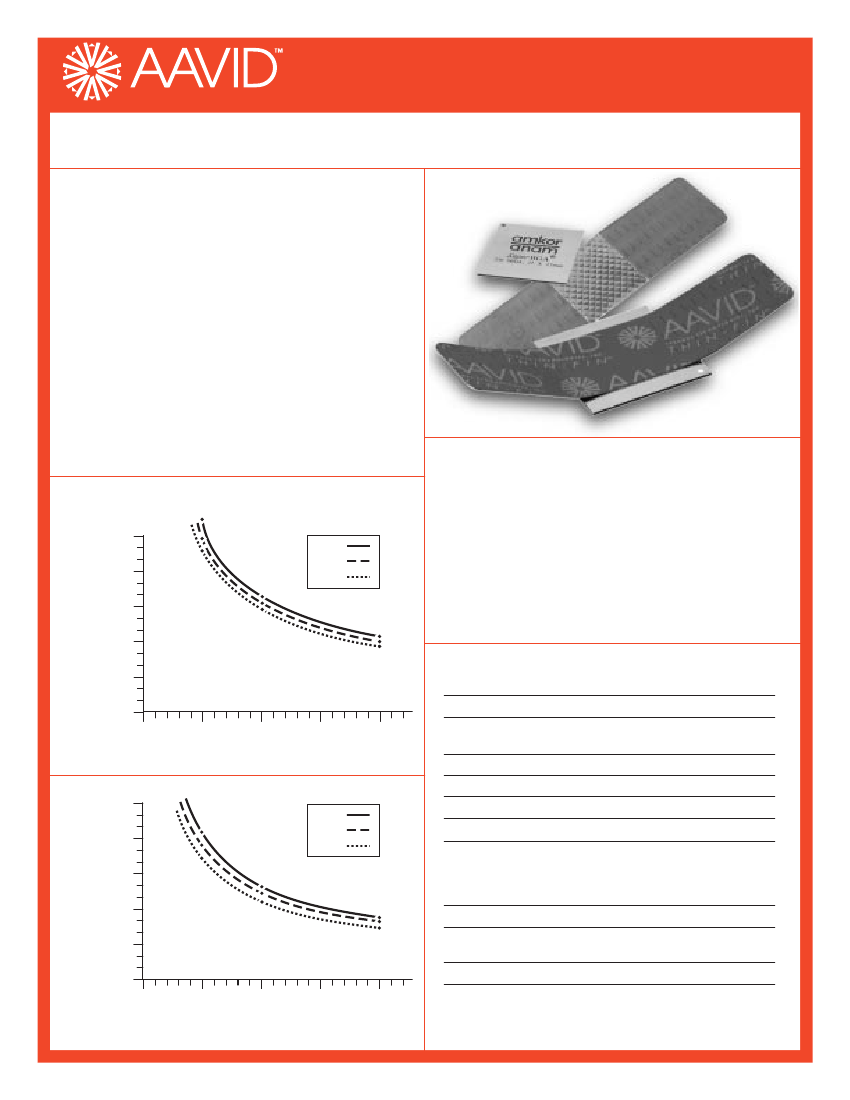

THIN-FIN
™
HEAT SINKS
T H E R M A L P R O D U C T S, I N C.
FOR COMPUTER AND CUSTOM APPLICATIONS
LOW PROFILE COPPER HEAT SINKS IDEAL FOR PCI AND AGP CHIP SETS
When space is at a premium, Aavid’s Thin-fin
heat sinks reduce package case temperature
by as much as 20º C. These flexible, copper
spreaders attach to the electronic package using
pre-applied adhesive, providing an off-the-shelf
solution for PCI and AGP chip sets. A laminated
dielectric coating prevents shorting, making the
Thin-Fin ideal for BGA devices and multimedia
appliances.
THIN FIN HEAT SINKS OFFER:
• Significant cooling with limited headroom
• Pre-applied adhesive for rapid assembly
• Dielectric coating to prevent shorting
THERMAL PERFORMANCE
T H E R M A L R E S I S TA N C E ( C - A )
°
C / Wa t t
ORDERING INFORMATION:
Part Number
“A”
“B”
“C”
341600F00000
50.8 (2.0)
12.7 (0.5)
12.7 (0.5)
341700F00000
76.2 (3.0)
12.7 (0.5)
12.7 (0.5)
341800F00000
76.2 (3.0)
19.1 (0.75)
19.1 (0.75)
341900F00000*
76.2 (3.0)
25.4 (1.0)
25.4 (1.0)
342000F00000
101.6 (4.0)
25.4 (1.0)
25.4 (1.0)
342100F00000
101.6 (4.0)
38.1 (1.5)
38.1 (1.5)
*
Recommended for use in cooling microprocessor chip sets, such as PCI and AGP.
Notes:
Dimensions are in mm (inches)
Contact our Applications Engineering Department for custom configurations
25
20
15
10
5
0
50
100
3416
3417
3418
PRODUCT SPECIFICATIONS:
Properties
Color
Value
Black
0.33 mm (0.013 inches)
16.8 Pa (0.039 oz/in
2
Polyvinylfluoride
Silicone PSA
>1600 Volts/mil (ASTM D149)
150
200
Total thickness
(including adhesive)
Weight
Insulator
A I R F L OW ( F t / M i n )
T H E R M A L R E S I S TA N C E ( C - A )
°
C / Wa t t
25
20
15
10
5
0
50
100
3419
3420
3421
Adhesive
Dielectric Strength
Adhesion Performance
Lap Shear
(at room temperature
Lap Shear (at 100º C)
90º Peel
(at room temperature)
90º Peel (at 100º C)
414 kPa (960 oz/in
2
)
23 kPa (53 oz/in
2
)
441 g/cm (20 oz/in)
220 g/cm (20 oz/in)
150
200
A I R F L OW ( F t / M i n )
Thin-fin heat sinks have passed the following tests: heat aging, high
temperature and humidity, temperature cycling, and temperature
shock. Thin-fins meet UL 94V-0 flammability specification.
THIN FIN
™
HEAT SINKS
COPY THIS FORM TO FAX US YOUR SAMPLE REQUEST
______________________________________________________
Company Name
______________________________________________________
Address
______________________________________________________
City/State/Zip
______________________________________________________
Mail Stop
______________________________________________________
Contact Name
______________________________________________________
Telephone
______________________________________________________
FAX
______________________________________________________
Project Name
APPLICATION SKETCH OF CUSTOM THIN FIN PRODUCTS
Include Dimensions
Note: In addition to the heat spreader, size and location of adhesive can also be customized.
T H E R M A L P R O D U C T S, I N C.
This data sheet represents only one of a broad range of products we make to cool electronics. Our representatives can help you configure a complete cooling solution
for your individual applications. For assistance, contact any one of them from our web site or at the locations below.
Aavid Thermal Products, Inc. along with Fluent Inc.’s Icepak thermal design software and Applied Thermal Technologies, Inc. thermal design and validation services make up
The Total Integrated Solution for Cooling Electronics™. For more information on how to put our strengths to work for you, visit our web site at: http://www.aavid.com;
Tel: (603) 224-9988, or contact Fluent at: http://www.icepak.com;Tel: (603) 643-2600, or Applied at: http://www.thermalcooling.com;Tel: (603) 666-4100.
For technical assistance, or placing an order, please visit our web-site for the local sales representative:
http://www.aavid.com/reps/index.html
or distributor near you:
http://www.aavid.com/distribs/index.html
Corporate Office - Aavid USA:
143 N. Main Street, Concord, NH 03301 Tel: (603) 224-9988 Fax: (603) 223-1738
International Locations:
Aavid Canada:
440 Hanlon Road,Woodbridge, Ontario, Canada L4L 3P6 Tel: (905) 850-9595 Fax: (905) 850-9599
Aavid Singapore:
No. 5,Woodlands Industrial Park E1, Singapore, 757728 Tel: (65) 362 8388 Fax (65) 362 8588
Aavid Europe:
Unit C Hillbottom Road, Sands Industrial Estate, High Wycombe, Bucks, England HP12 4HS Tel: (44) 1494-474747 Fax: (44) 1494-474748
Aavid Taiwan/Japan:
3F, No. 25, Lane 228, AnKang Road, NeiHu,Taipei, 114 Taiwan, R.O.C. Tel: (886) 2-2793-5677 Fax: (886) 2-2793-3460
PLEASE NOTE: Our customers are reminded that they bear the responsibility for testing Aavid Thermal Products’ products for proposed use. Any information furnished by AAVID is believed
to be accurate and reliable, but our customers must bear all responsibility for use and applications of AAVID products. AAVID MAKES NO WARRANTIES EXPRESSED OR IMPLIED, AS TO
THE FITNESS, MERCHANTABILITY, OR SUITABILITY OF ANY AAVID PRODUCTS FOR ANY SPECIFIC OR GENERAL USES. AAVID SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND.
All AAVID products are sold pursuant to the AAVID Domestic Terms and Conditions of Sale in effect from time to time, a copy of which shall be furnished upon request (8911A).
Copyright © Aavid Thermal Products, Inc. October 1997. All icons, drawings, illustrations, and trademarks are the property of Aavid Thermal Products, Inc. and may not be reproduced
without express written permission.
