YB26SKW01-1F12-JA datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> YB26SKW01-1F12-JA

YB26SKW01-1F12-JA: DescriptionShort Body Pushbutton; Poles: DPDT; Circuits: On-On; Current Rating: 3A (AC/DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Square, Button; Actuator Cap Color: Clear (Black Filter/Diffuser); illumination color: LED, Green; illumination voltage: 12 VDC; Mounting Type: Panel Mount, Front; Termination Style: Solder, Quick Connect - 0.110\" (2.8mm); Features: Epoxy Sealed Terminals; panel cutout dimensions: Circular - 16.00mm Dia; Rating: 3; Illumination: Illuminated; CategoryMechanical and electronic products switch; File Size637KB，12 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

YB26SKW01-1F12-JA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	YB26SKW01-1F12-JA	-	-	View	Buy Now

YB26SKW01-1F12-JA Overview

Short Body Pushbutton; Poles: DPDT; Circuits: On-On; Current Rating: 3A (AC/DC); Rating (AC): 125V; Rating (DC): 30V; Actuator Type: Square, Button; Actuator Cap Color: Clear (Black Filter/Diffuser); illumination color: LED, Green; illumination voltage: 12 VDC; Mounting Type: Panel Mount, Front; Termination Style: Solder, Quick Connect - 0.110\" (2.8mm); Features: Epoxy Sealed Terminals; panel cutout dimensions: Circular - 16.00mm Dia; Rating: 3; Illumination: Illuminated

YB26SKW01-1F12-JA Parametric

Parameter Name	Attribute value
Brand Name	NKK Switches
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e3
Switch type	PUSHBUTTON SWITCH
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

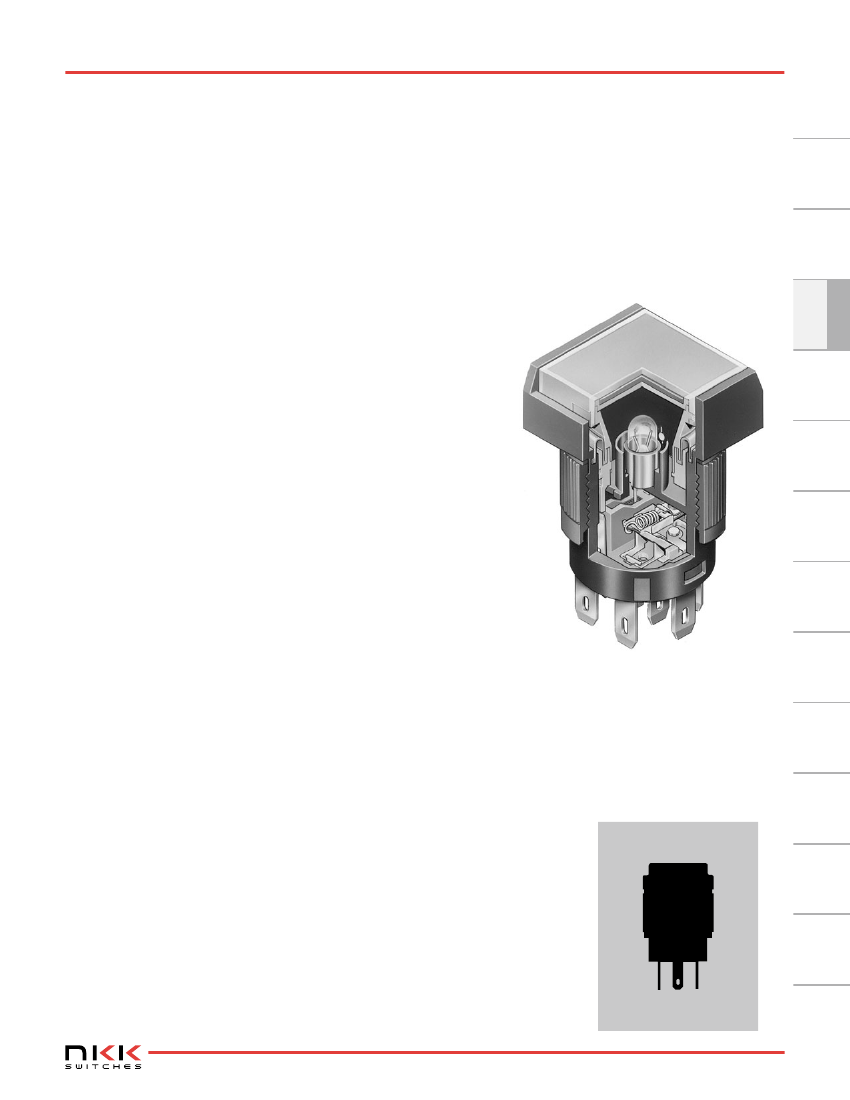

Series YB

Toggles

Short Body Pushbuttons

General

Specifications

Electrical Capacity (Resistive Load)

Power Level (silver):

Logic Level (gold):

3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Note: Find additional explanation of operating range in Supplement section.

Pushbuttons

Rockers

Programmable

Illuminated PB

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

Keylocks

50 milliohms maximum for silver; 100 milliohms maximum for gold

200 megohms minimum @ 500V DC

1,000V AC minimum between contacts for 1 minute minimum;

1,500V AC minimum between contacts & case for 1 minute minimum

1,000,000 operations minimum for momentary circuit

200,000 operations minimum for maintained circuit

100,000 operations minimum

Single pole: 1.47N for nonsealed; 1.67N for sealed

Double pole: 2.75N for nonsealed; 2.94N for sealed

Nonshorting (break-before-make)

Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)

Materials & Finishes

Rotaries

Housing/Bezel:

Snap-in Frame:

Base:

Movable Contactor:

Movable Contacts:

Stationary Contacts:

Switch Terminals:

Lamp Terminals:

Glass fiber reinforced polyamide (UL94V-0)

Stainless steel

Diallyl phthalate resin (UL94V-0)

Phosphor bronze with silver or gold plating

Silver alloy with silver plating or brass with gold plating

Silver alloy or copper with gold plating

Phosphor bronze with tin plating

Slides

Tactiles

Environmental Data

Operating Temperature Range:

Humidity:

Vibration:

Shock:

Sealing:

Touch

–25°C through +50°C (–13°F through +122°F) for Illuminated

–25°C through +70°C (–13°F through +158°F) for Nonilluminated

90 ~ 95% humidity for 96 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

IP65 of IEC60529 standard for panel seal models

Tilt

Installation

Indicators

Mounting Torque:

Quick Connect Force:

Soldering Time & Temperature:

0.785Nm (6.95 lb

•

in) maximum

24.5N maximum downward force on connector

Manual Soldering: See Profile A in Supplement section.

Standards & Certifications

Accessories

Flammability Standards:

UL:

CSA:

Supplement

UL94V-0 housing & base

File No. E44145 - Recognized only when ordered with marking on switch.

Add “/U” or “/CUL” before first dash in part number to order UL recognized switch.

All solder lug models recognized at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.

File No. 023535_0_000 - Certified only when ordered with marking on switch.

Add “/C” before first dash in part number to order CSA certified switch.

All solder lug models certified at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.

D100

www.nkk.com
