NIN-SK4N7CTR1200F

Description
GENERAL PURPOSE INDUCTOR,
CategoryPassive components    inductor
File Size341KB,6 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

NIN-SK4N7CTR1200F Overview

GENERAL PURPOSE INDUCTOR,

NIN-SK4N7CTR1200F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNichicon
package instruction0402
Reach Compliance Codecompliant
uppercase and lowercase codes0402
structureRectangular
core materialWirewound
DC Resistance0.071 Ω
Nominal inductance(L)0.0047 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height0.6 mm
Package length1.1 mm
Package formSMT
Package width0.6 mm
method of packingTR, 7 Inch
Minimum quality factor (at nominal inductance)31
Maximum rated current1.2 A
self resonant frequency8000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ IS MEASURED AT 250 MHZ
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency100 MHz
Tolerance4.2553%

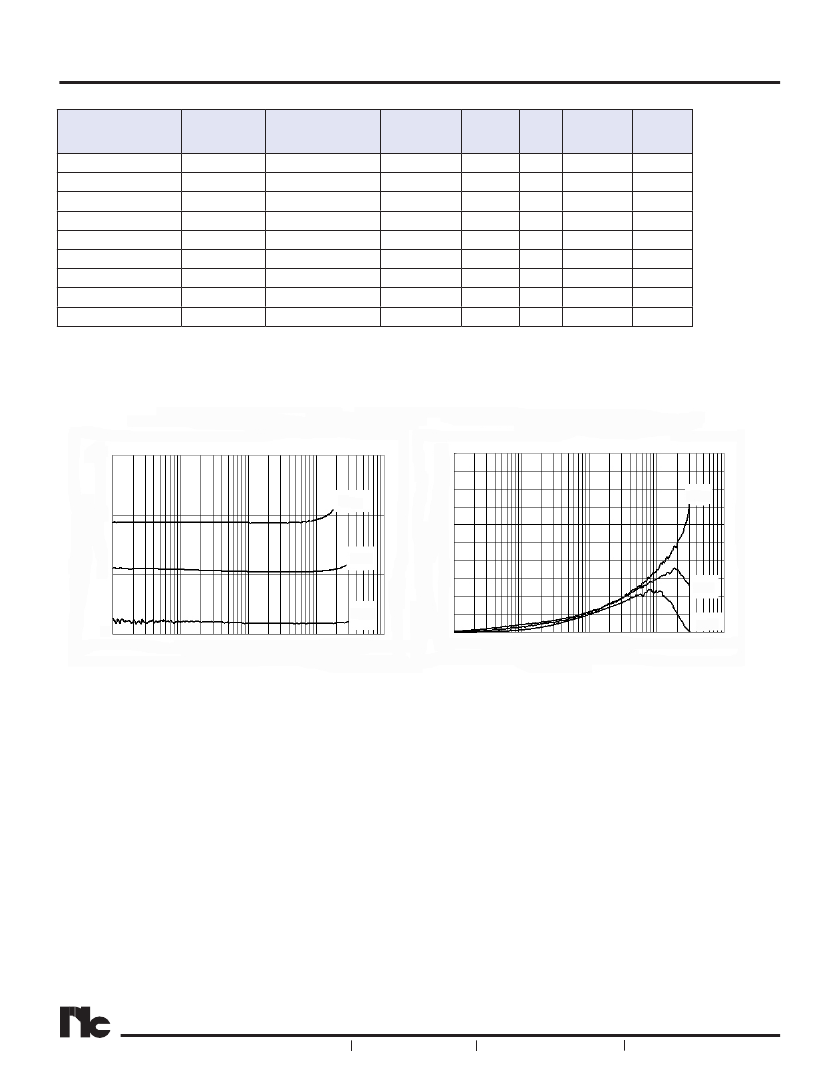

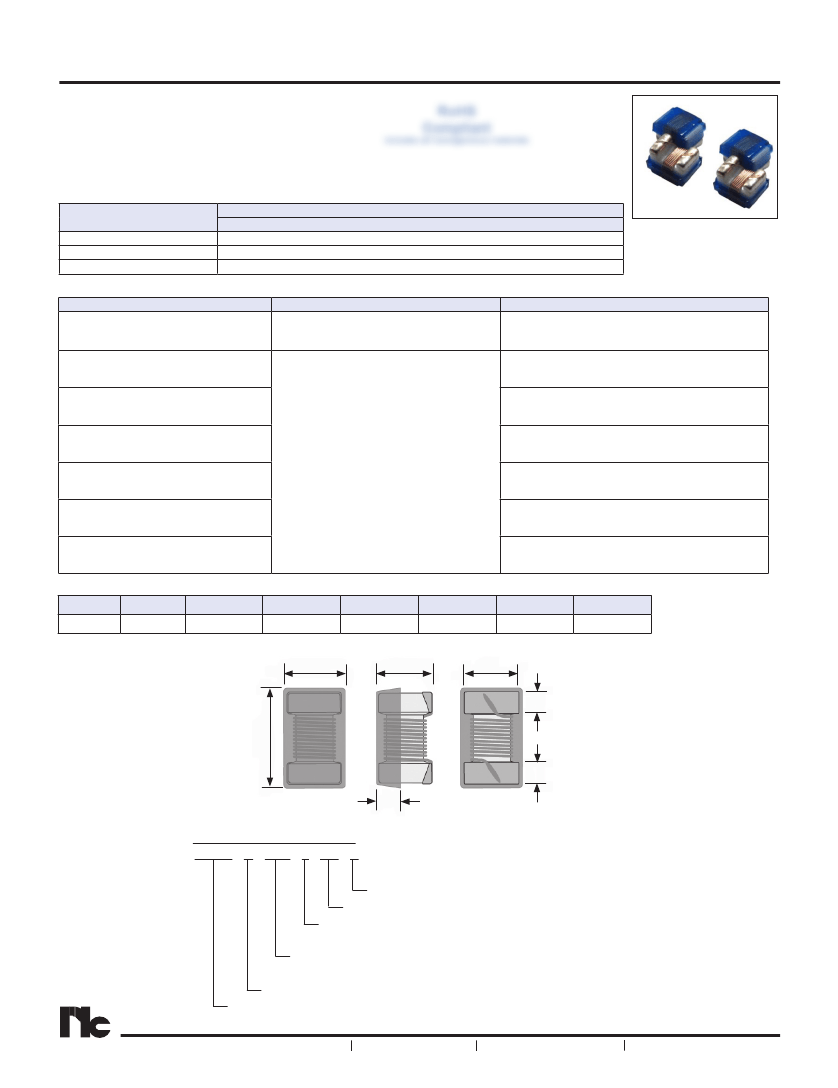

Wirewound Chip Inductors
FEATURES
CERAMIC BODY, WIRE WOUND CHIP INDUCTOR
includes all homogeneous materials
SIZES K (0402)
HIGH CURRENT AND LOW DCR
*See Part Number System for Details
REFLOW SOLDERING APPLICABLE
TAPE & REEL PACKAGING FOR AUTOMATIC PICK-PLACE
Specifications
Inductance Range
Inductance Tolerance
Operating Temperature Range
Test
Case Size Code
0402 (K)
1.0nH ~ 220nH
±0.2nH (C), ±0.3nH (S), ±0.5nH (D), ±2% (G), ±3% (H), ±5% (J), ±10% (K)
-40°C ~ +125°C (including self-heating)
Specifications
90% Min. Coverage
NIN-S Series
RoHS
Compliant
ENVIRONMENTAL CHARACTERISTICS
Solderability
Resistance to Soldering Heat
Humidity Resistance (no load)
High Temperature Resistance (no load)
Low Temperature Resistance (no load)
High Temperature Load Life
Humidity Load Life
Test Method & Condition
Flux: 25% Resin, 75% Ethanol (by weight)
Solder: Sn/Ag3.0/Cu0.5,
Solder Temp.: 240 ± 5°C, Immersion: 3 ± 0.5 sec.
Device reflowed on pcb for 10 seconds at +260°C
± 5°C in solder Sn/Ag3.0/Cu0.5. Test time 6 min.
After 1000 hours at +60°C ± 2°C and 90 ~ 95% RH
(1) No mechanical damage
(2) Inductance change ±5% of initial value
(3) Q factor within ±20% of initial value.
Measure after chip is stablized at room
temperature for 1 ~ 2 hours.
After 1000 +24/-0 hours at +125°C ± 2°C
After 1000 +24/-0 hours at -40°C ± 2°C
After 1000 hrs at +125°C ± 2°C and rated current
After 1000 hrs at +60°C ± 2°C, 90~95% RH
and rated current
COMPONENT DIMENSIONS (mm):
Type
NIN-SK
Case Size
0402
A
1.10 ± 0.10
B
0.60 ± 0.10
B
B
C
0.60 ± 0.10
C
D ref.
0.20
E
F
E
0.50 ± 0.10
F
0.20 ± 0.10
A
D
PART NUMBER SYSTEM
NIN-S K 22N
J
TR F
Pb-free/RoHS compliant
Taped & Reeled
Tolerance Code: ±0.2nH (C), ±0.3nH (S), ±0.5nH (D), ±2% (G),
±3% (H), ±5% (J) and ±10% (K)
Inductance Value in Nanohenries
(see standard values table for appropriate value codes)
Case Code (K = 0402, J = 0603)
Series
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
®
1
NIC COMPONENTS CORP.
www.niccomp.com
Specifications are subject to change
