This document was generated on 03/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190700044
Active
InsulKrimp™ Ring Tongue Terminal for 18-22 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series

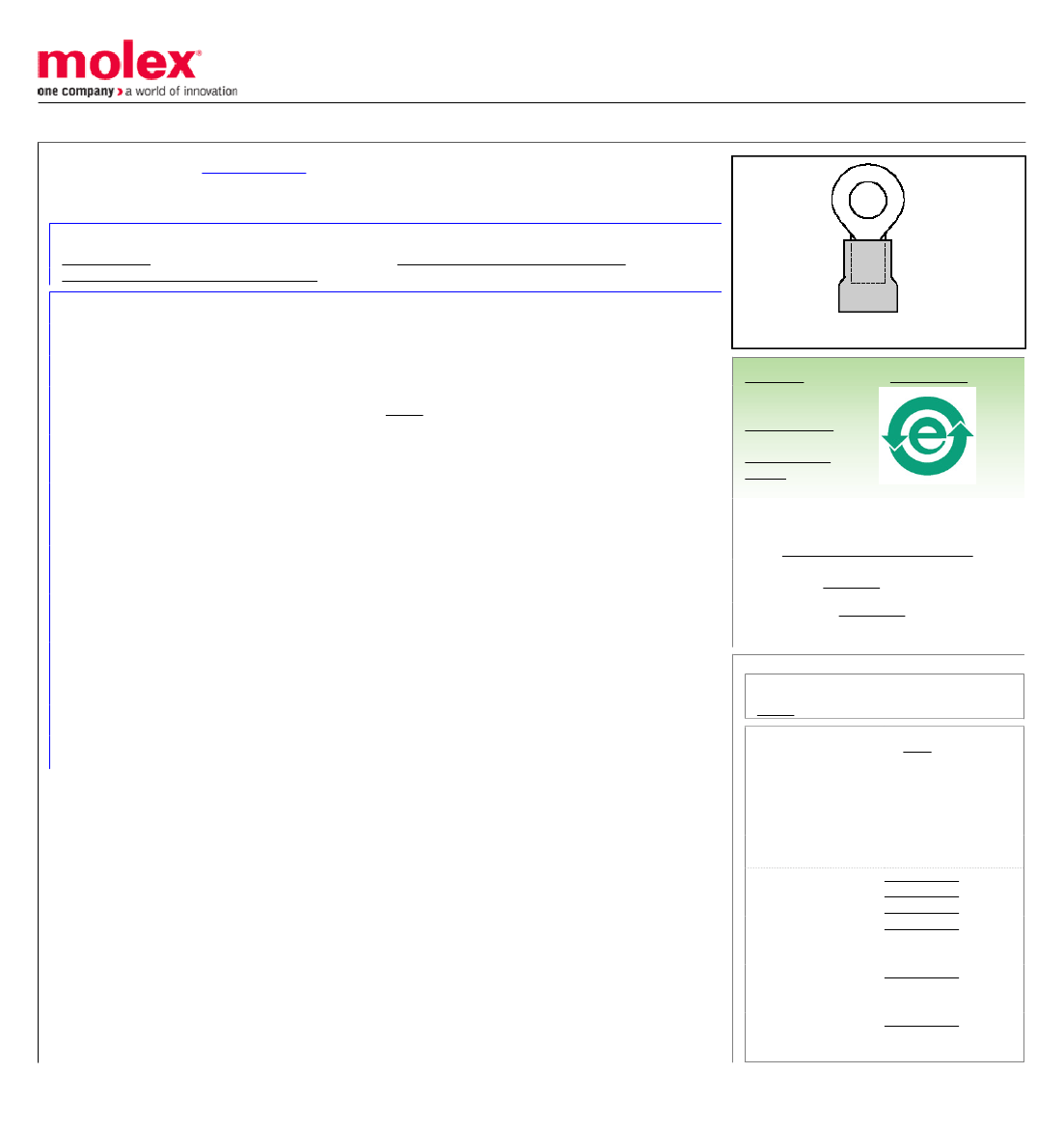

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19070
Yes
N/A
InsulKrimp™
Ring
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-2
PVC
Tin
Bag
8 (M4)
3.70mm (.145") max.
18, 20, 22
0.35 - 0.80
Material Info
Old Part Number
AA-232-08X
Search Parts in this Series
19070Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640010300
Hand Crimp Tool
0640011200
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640050300
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051200
AT-200™ Pneumatic
Hand Tool
Reference - Drawing Numbers
Product Specification

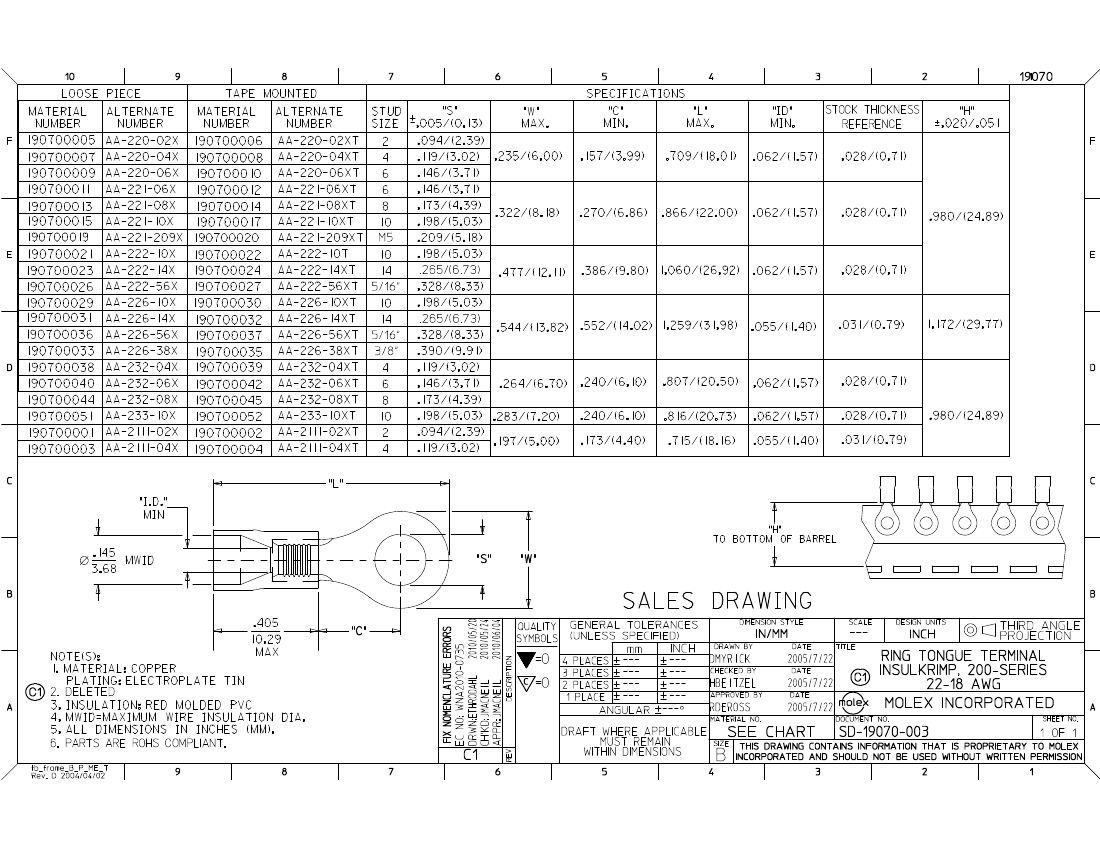

Sales Drawing
PS-19902-009
SD-19070-003
