B-230-10HDX

Description
InsulKrimp™ Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire
CategoryThe connector    terminals
File Size118KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

B-230-10HDX Overview

InsulKrimp™ Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire

B-230-10HDX Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial numberB-230
terminal genderFEMALE
Terminal and terminal strip typesRING TERMINAL
Conductor cross section2.5 mm2
Wire gauge14 AWG
Base Number Matches1

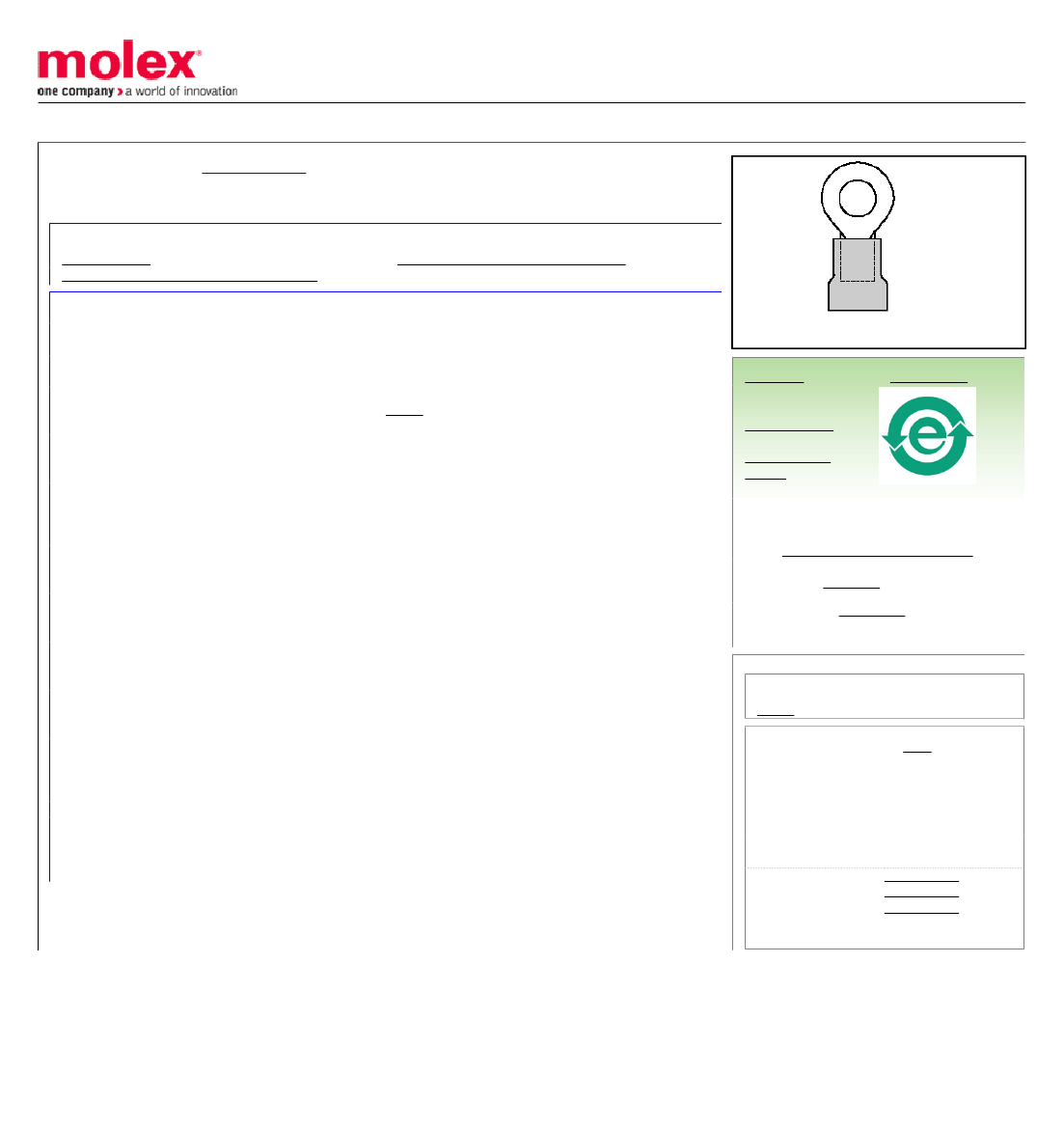

This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190540096
Active
InsulKrimp™ Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19054
Heavy Duty
Yes
N/A
InsulKrimp™
Ring
Physical
Barrel Type
Color - Resin
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
PVC
Tin
Bag
100
2.5
100
2.5
10 (M5)
Crimp or Compression
6.40mm (.250") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19054Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640011600
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
B-230-10HDX
Reference - Drawing Numbers
Product Specification

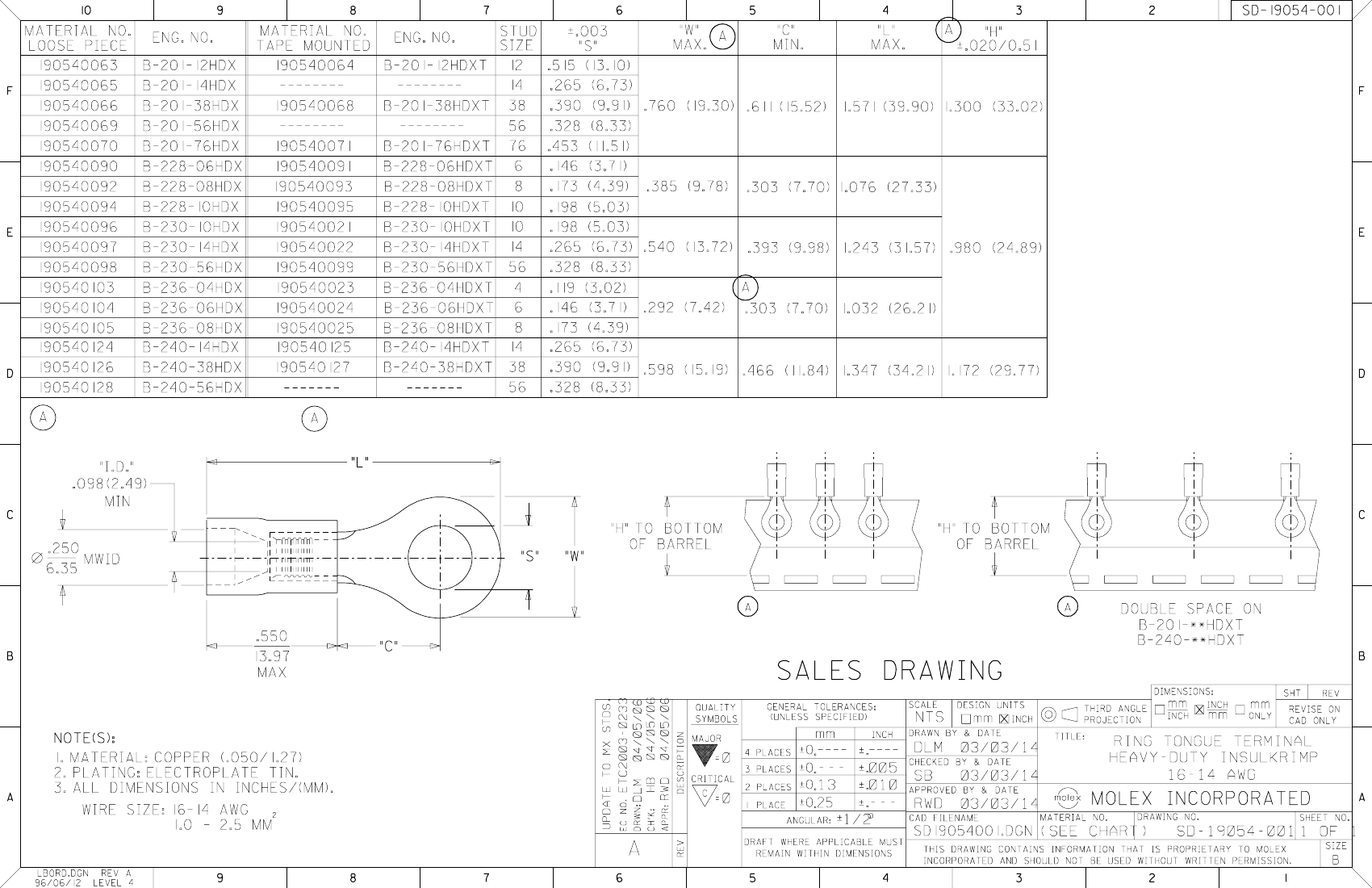

Sales Drawing
PS-19902-009
SD-19054-001
This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

B-230-10HDX Related Products

B-230-10HDX 190540096
Description InsulKrimp™ Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire InsulKrimp™ Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire
Maker Molex Molex
Reach Compliance Code unknown compliant
ECCN code EAR99 EAR99
Manufacturer's serial number B-230 19054
Terminal and terminal strip types RING TERMINAL RING TERMINAL
Conductor cross section 2.5 mm2 2.5 mm2
Wire gauge 14 AWG 14 AWG
Base Number Matches 1 1
