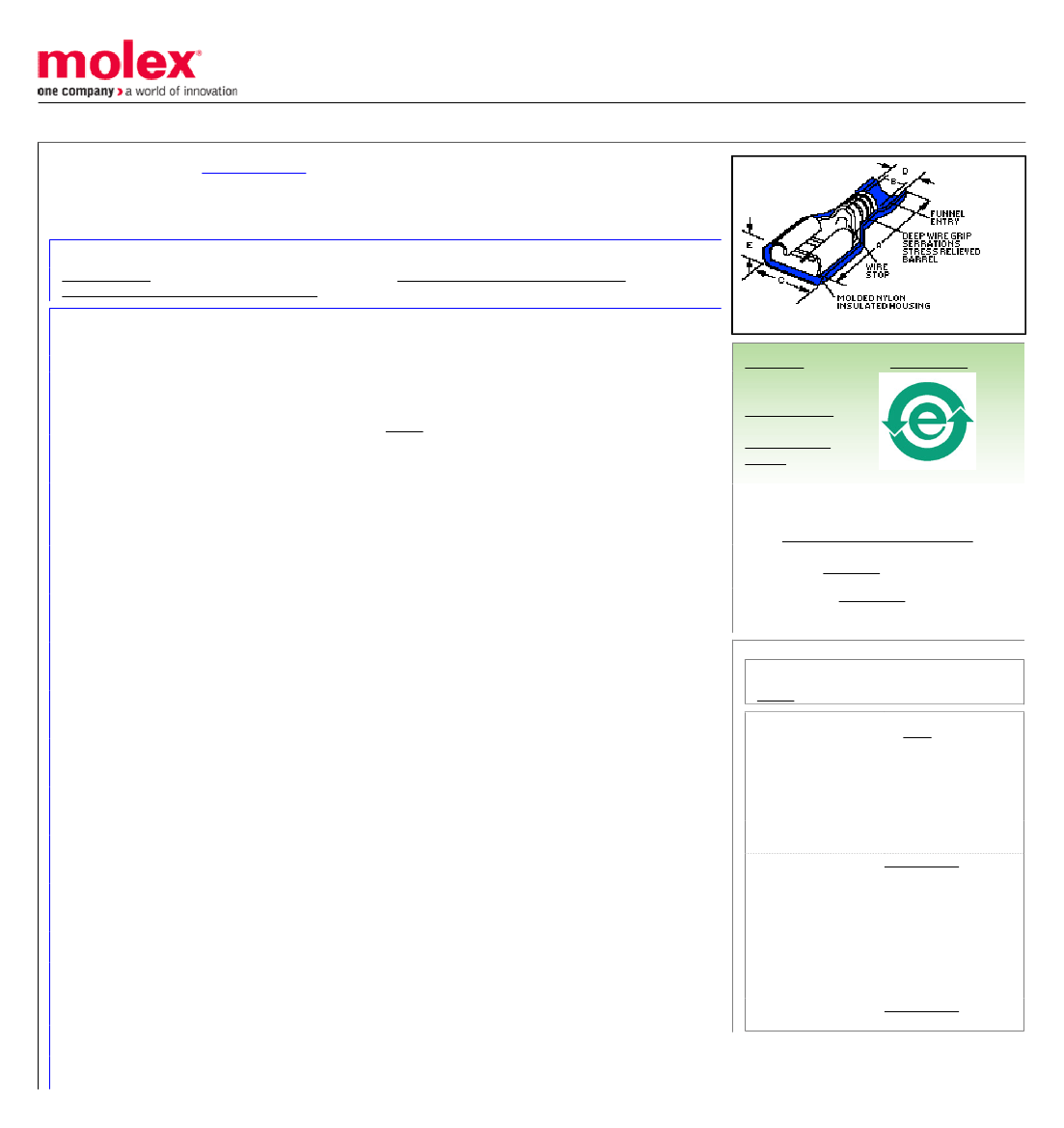

Part Number:
Status:
Description:
0190030042
Active
InsulKrimp™ Quick Disconnect, Female, for 14-16 (2.00-1.30), Mylar Tape, Tab
6.35mm (.250") x 0.81mm (.032")
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR18689
E79133
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19003
Funnel Entry
Yes
InsulKrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
Female
No
Nylon (PA)
None
Brass
Tin
Tin
Nylon
Straight
Adhesive Tape on Reel
160
4
160
4
No
0.81mm (.032")
6.35mm (.250")
-65°C to +105°C
Crimp or Compression
3.68mm (.145") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19003Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Dies for
0192880105
the ATP-301 Air
Crimping Press
for Mylar Tape
Mounted Terminals
and MTA-106 Tape
Applicator used in
Wire Processing
Machine
Mini-Mac™
0638854200
Applicator
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
BB-2206T
Reference - Drawing Numbers
Product Specification

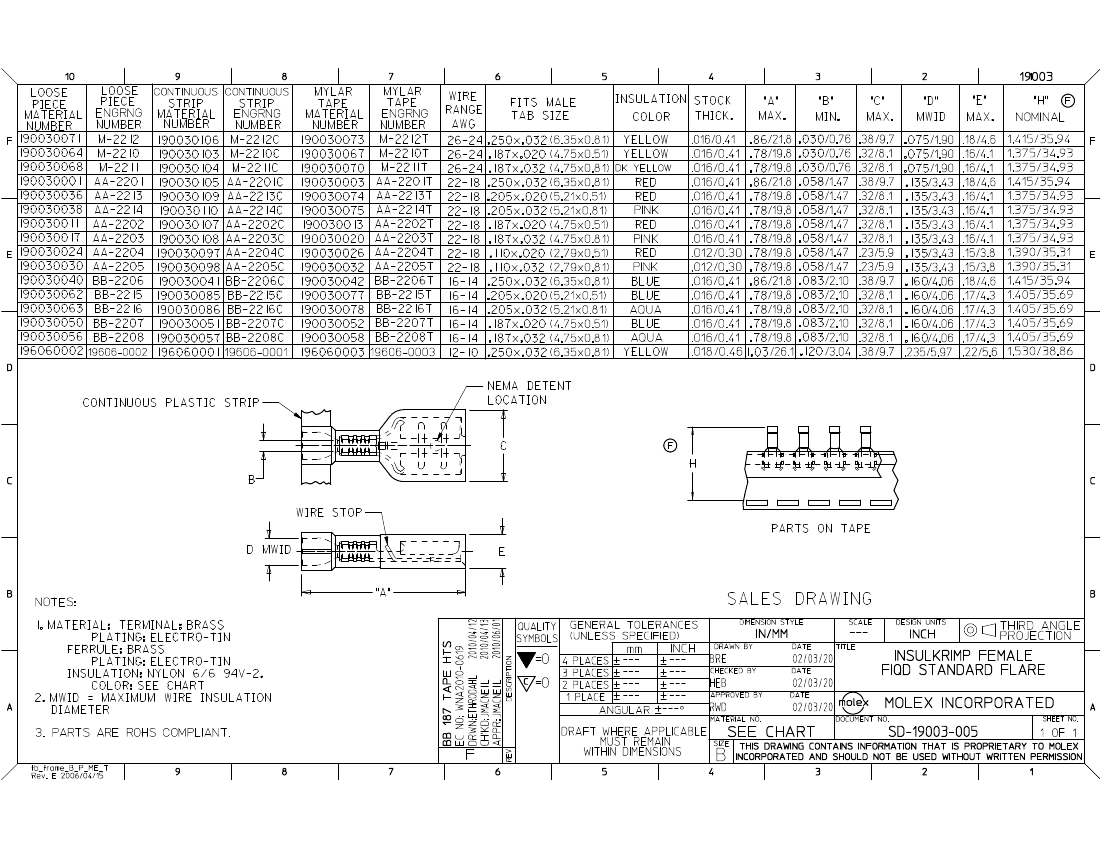

Sales Drawing
