This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190190049
Active
Avikrimp™ Quick Disconnect, Female, for 12-14 (3.30-2.00) Wire, Box, Tab 4.75mm
(.187") x 0.81mm (.032")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19019
Yes
Avikrimp™
Quick Disconnect
Physical
Barrel Type
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-0
Female
No
Nylon (PA)
None
Brass
Straight
Bag
No
0.81mm (.032")
4.75mm (.187")
-65°C to +105°C
4.30mm (.170") max.
12, 14
2.00 - 3.30
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19019Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640011800
Crimp Head for the 0640051800
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
300V
Material Info
Old Part Number
P-8139-032
Reference - Drawing Numbers

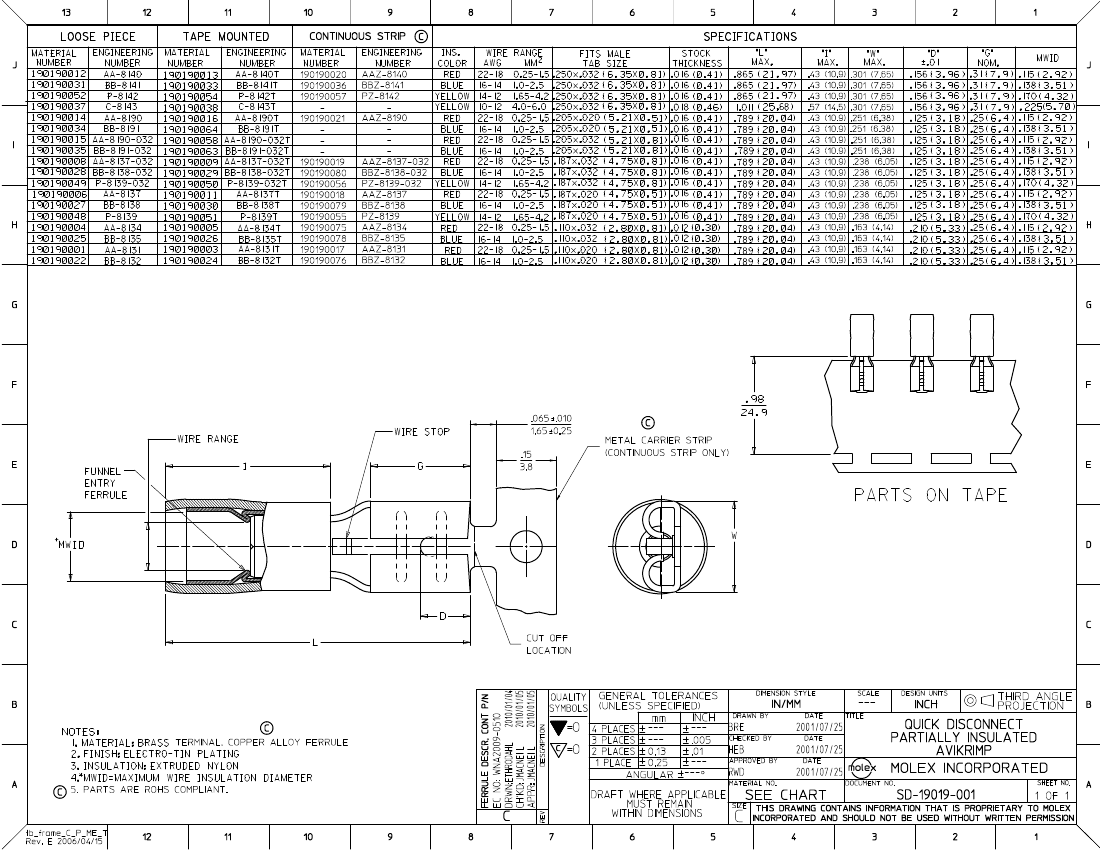

Sales Drawing
SD-19019-001
