14-56-2174

Description
17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP
CategoryThe connector    The connector
File Size170KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

14-56-2174 Overview

17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

14-56-2174 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSTACKED
body width0.259 inch
subject depth0.6 inch
body length1.699 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (15) OVER NICKEL
Contact completed and terminatedGOLD (15) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage600VAC V
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number70400
Plug contact pitch0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature120 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness15u inch
polarization keyPOLARIZED RIB(S)
Rated current (signal)1.8 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts17
UL Flammability Code94V-0
Maximum wire diameter26 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value.278 N
Base Number Matches1
This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0014562174
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,
Single Row, Version G, Positive Lock, Wire Size 26, 0.38µm (15µ") Gold (Au), 17
Circuits
Documents:
3D Model

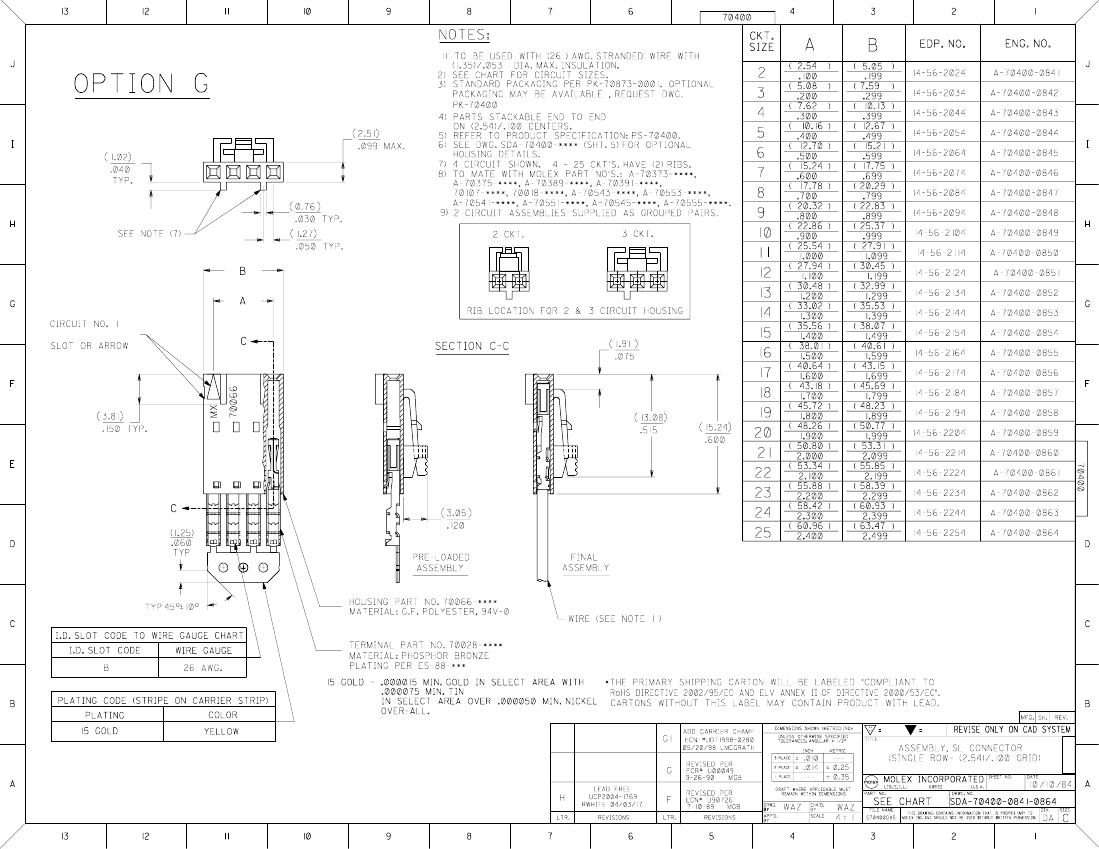

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Overview
Product Name
Ribbon Cable / Wire Trap Connectors
70400
Terminals Preloaded
Housing
No
cgrid__sl_products
SL™
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
17
Black
50
Vertical
94V-0
Yes
Phosphor Bronze
Gold
Tin
Polyester Alloy
1
None
Tube
0.100 In
2.54 mm
15
0.375
75
1.875
Yes
Yes
N/A
-40°C to +105°C
IDT or Pierce
1.35mm (.053") max.
26
Discrete Wire, Ribbon Cable
Search Parts in this Series
70400Series
Mates With
70018 , 70107A/B, 70543, 70545 , 70553 ,
70555
Use With
7307 Tinned 28AWG, 7767 Topcoat
28AWG, 24241 Tinned 26AWG, 8996
Topcoat 26AWG, 24226 Tinned 24AWG,
8997 Topcoat 24AWG, 24369 High Flex
26AWG, 24389 High Flex 24AWG
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hawk Semi-
0011201337
Automatice Discrete
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
