190380013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 190380013

190380013: DescriptionInsulKrimpâ¢ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male PlugDiameter 4.57mm; CategoryThe connector terminals; File Size84KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

190380013 Overview

InsulKrimpâ¢ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male PlugDiameter 4.57mm

190380013 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Is Samacsys	N
terminal gender	FEMALE
Terminal and terminal strip types	BULLET TERMINAL
Conductor cross section	2.6 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0190380013

Active

InsulKrimp™ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug

Diameter 4.57mm (.180")

Series

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Documents:

Drawing (PDF)

Agency Certification

CSA

LR18689

E152602

General

Product Family

Series

Comments

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

19038

Fits Male Plug Dia. 4.57mm (.180")

Yes

InsulKrimp™

Snap Receptacle

Physical

Barrel Type

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Orientation

Packaging Type

Tab Thickness

Tab Width

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

Natural

94V-2

Female

Nylon (PA)

None

Brass

Tin

Nylon

Straight

Bag

N/A

Crimp or Compression

3.81mm (.150") max.

14, 16

1.00 - 2.50

Search Parts in this Series

19038Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640012100

Crimp Head for the 0640052100

AT-200™ Pneumatic

Hand Tool

Electrical

Voltage - Maximum

600V

Material Info

Old Part Number

BRB-2180N

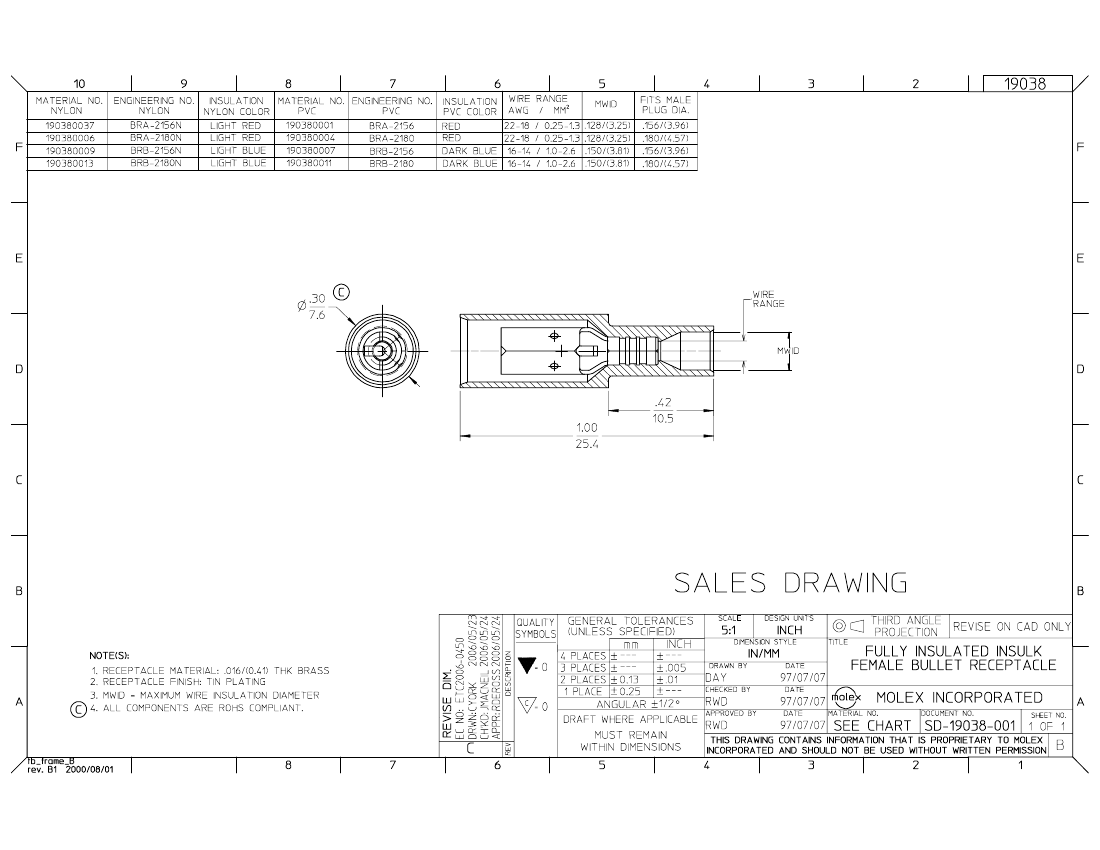

Reference - Drawing Numbers

Sales Drawing

SD-19038-001

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

190380013 Related Products

	190380013	BRB-2180N
Description	InsulKrimpâ¢ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male PlugDiameter 4.57mm	InsulKrimpâ¢ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male PlugDiameter 4.57mm
Maker	Molex	Molex
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
terminal gender	FEMALE	FEMALE
Terminal and terminal strip types	BULLET TERMINAL	BULLET TERMINAL
Conductor cross section	2.6 mm2	2 mm2
Wire gauge	14 AWG	14 AWG
Base Number Matches	1	1
