UCA2W6R8MPD150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UCA2W6R8MPD150

UCA2W6R8MPD150: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 6.8uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size48KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UCA2W6R8MPD150 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 6.8uF, Through Hole Mount, RADIAL LEADED

UCA2W6R8MPD150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6.8 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.2224 mA
Manufacturer's serial number	CA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	75 mA
surface mount	NO
Delta tangent	0.20
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

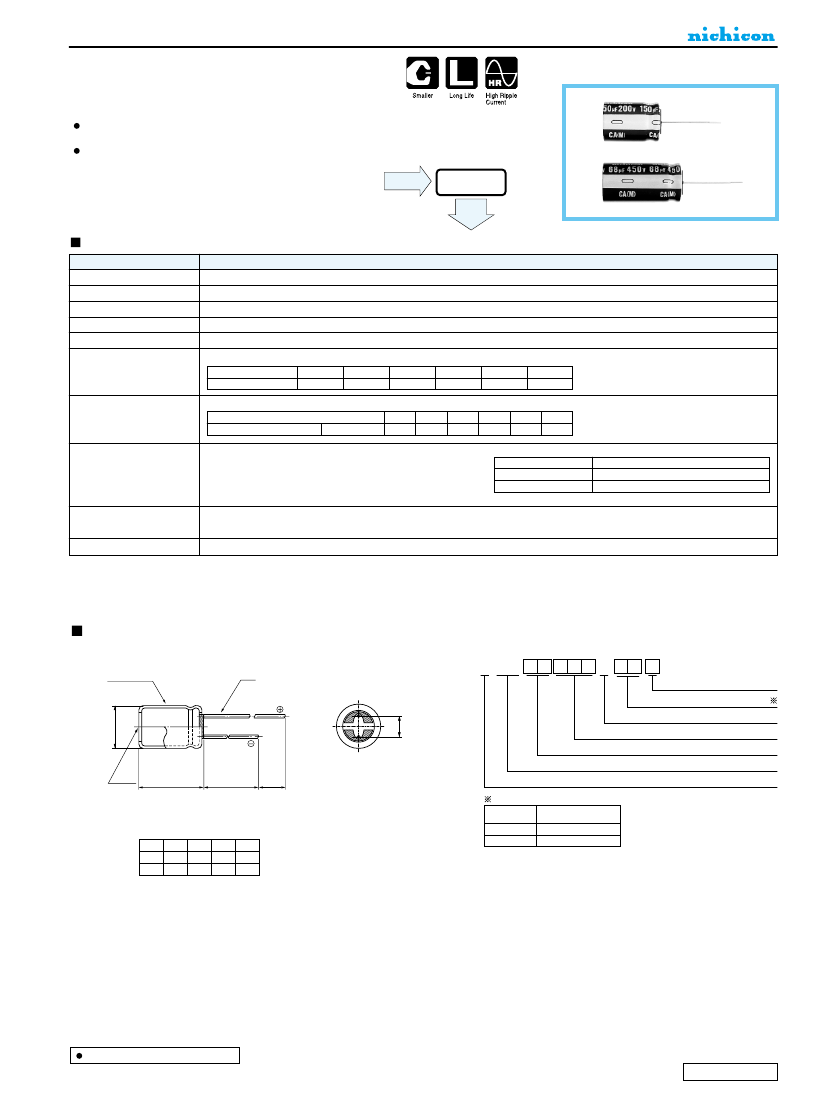

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, High Ripple Current, Long Life

series

High ripple current and Long Life product withstanding load

life of 12000 hours(10000 hours for

φD=10)

at +105°C.

Suited for ballast application.

Long Life

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 25 to +105°C

160 to 450V

6.8 to 220µF

± 20% at 120Hz, 20°C

After 1 minute's application of rated voltage, leakage current is not more than 0.04CV+100 (µA)

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

160

0.15

200

0.15

250

0.15

350

0.20

400

0.20

450

0.20

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio ZT / Z20 (MAX.) Z–25°C / Z+20°C

160

200

250

350

400

450

Endurance

After an application of D.C. bias voltage plus the rated ripple

current for 12000 hours (10000 hours for

φD

=10) at 105°C

the peak voltage shall not exceed the rated D.C. voltage,

capacitors meet the characteristic requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours, and after performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Type numbering system (Example : 250V 100µF)

10 11

Sleeve (P.E.T.)

φd

U CA 2 E 1 0 1 M HD

Size code

Configuration

φD

0.5MAX.

0.5

Capacitance tolerance (±20%)

Rated Capacitance (100µF)

Rated voltage (250V)

Series name

Pressure

relief vent

L +

1.5MAX.

MIN

Type

Configuration

Pb-free leadwire

Pb-free PET sleeve

(mm)

12.5 to 18

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

•

Please refer to page 20 about the end seal configulation.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100W
