UCS2E100MPH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UCS2E100MPH

UCS2E100MPH: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size55KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UCS2E100MPH Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED

UCS2E100MPH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.2 mA
Manufacturer's serial number	CS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	350000 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

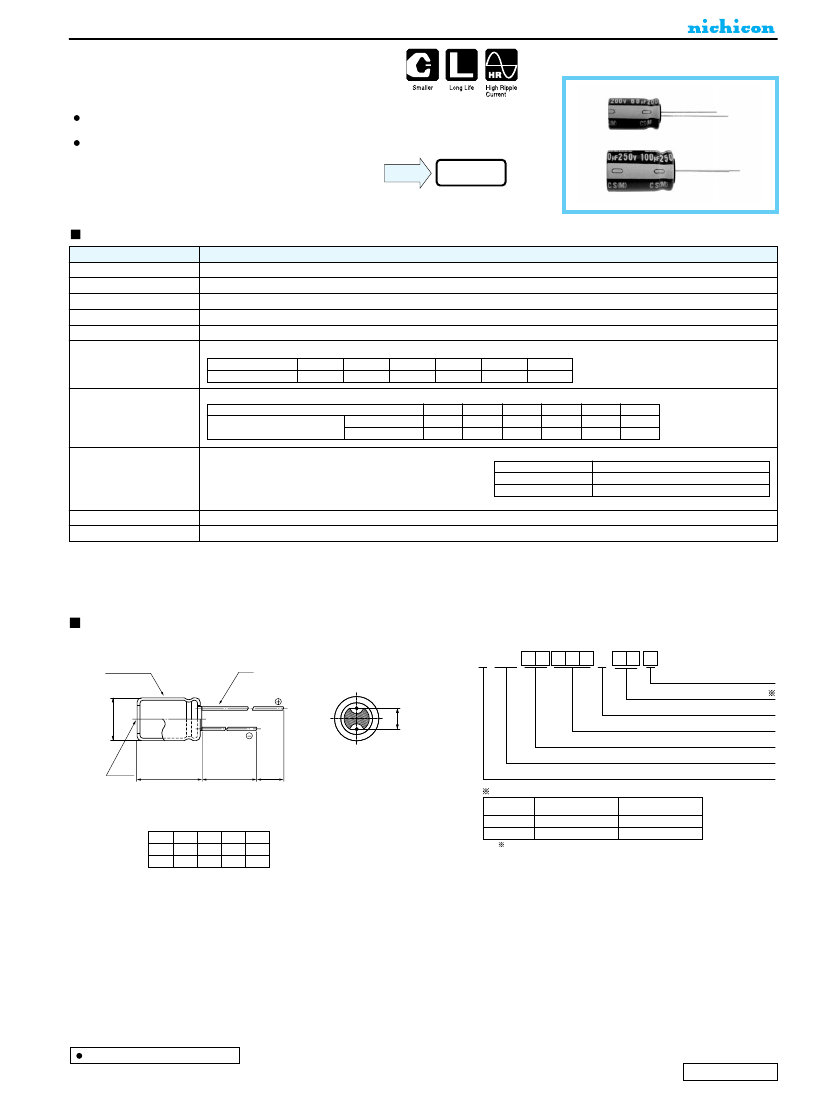

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, High Ripple Current, Long Life

series

High ripple current and Long Life product withstanding

load life of 8000 to 10000 hours at +105°C.

Suited for ballast application.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 40 ~ +105°C (160 ~ 400V) , – 25 ~ +105°C (450V)

160 ~ 450V

6.8 ~ 330µF

± 20% at 120Hz, 20°C

After 1 minutes' application of rated voltage, leakage current is not more than 0.04CV+100 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

160

0.20

200

0.20

250

0.20

350

0.24

400

0.24

450

0.24

Measurement frequency : 120Hz

Rated voltage (V)

Stability at Low Temperature

Impedance ratio ZT / Z20 (MAX.)

Z–25°C / Z+20°C

Z–40°C / Z+20°C

160

200

250

350

400

450

Endurance

After an application of D.C. bias voltage plus the rated ripple

current for 10000 hours (8000 hours for D =10) at 105°C the

peak voltage shall not exceed the rated D.C. voltage,

capacitors meet the characteristic requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105°C for 1000 hours, they meet the specified value for endurance characteritics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Type numbering system (Example : 250V 100µF)

10 11

Sleeve (P.E.T.)

φd

U CS 2 E 1 0 1 M HD

Case Size Code

Configuration

φD

0.5MAX

0.5

Capacitance tolerance (±20%)

Rated Capacitance (100µF)

Rated voltage (250V)

Series name

Pressure

relief vent

L +

1.5MAX

MIN

Type

Configuration

Pb free lead finishing

Pb free PET sleeve

Sn-Pb lead finishing

PVC sleeve contain Pb

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

12.5 ~ 18

Please contact to us if other configurations are required.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100S
