UPW1C681MPD1CA

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 680uF
CategoryPassive components    capacitor
File Size85KB,5 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric Compare View All

UPW1C681MPD1CA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 680uF

UPW1C681MPD1CA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance680 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter10 mm
dielectric materialsALUMINUM (WET)
ESR68 mΩ
leakage current0.3264 mA
length16 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingBULK
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
GuidelineAEC-Q200
ripple current787.5 mA
surface mountNO
Delta tangent0.16
Terminal pitch5 mm
Terminal shapeWIRE

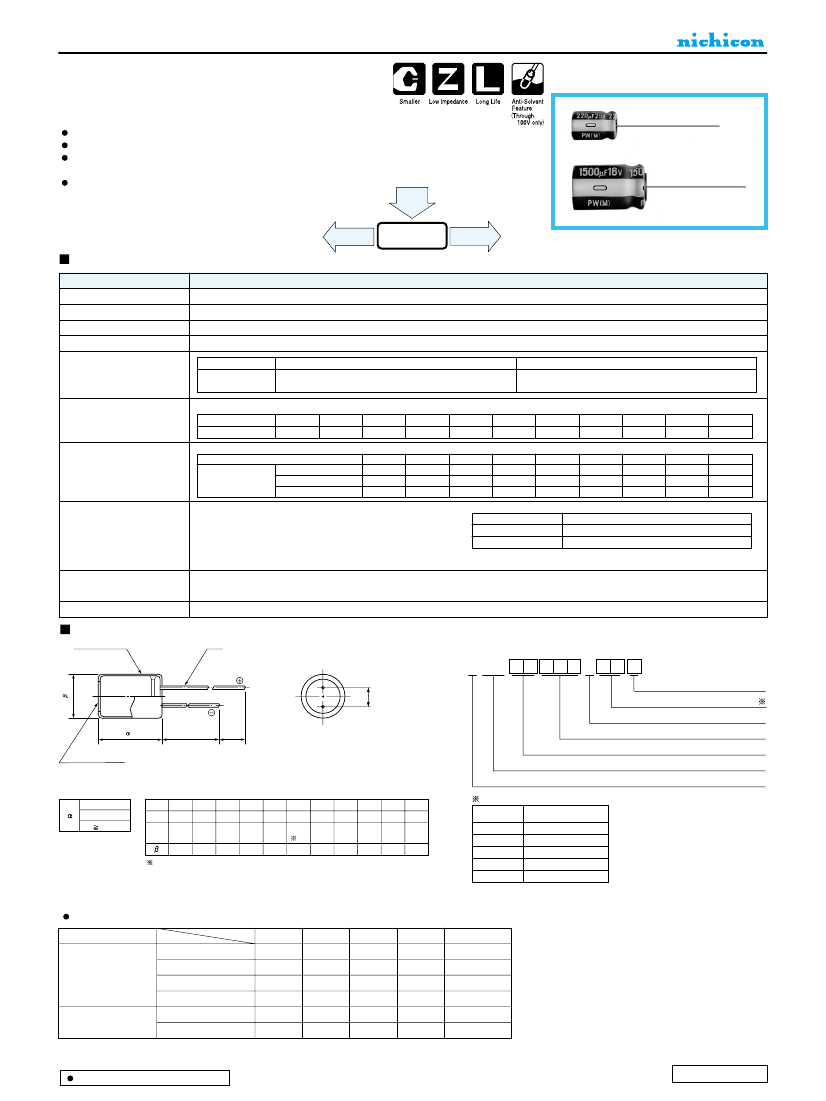

ALUMINUM ELECTROLYTIC CAPACITORS
PW
Miniature Sized, Low lmpedance,
High Reliability For Switching Power Supplies
series
Smaller case size and lower impedance than PM series.
Low impedance and high reliability withstanding 2000 hours to 8000 hours.
Capacitance ranges available based on the numerical values in E12 series
under JIS.
PM
Compliant to the RoHS directive (2002/95/EC).
Smaller
PA
Low
Impedance
PW
Long Life
TT
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Performance Characteristics
– 55 to +105˚C (6.3 to 100V), – 40 to + 105˚C (160 to 400V), – 25 to +105˚C (450V)
6.3 to 450V
0.47 to 15000µF
± 20% at 120Hz, 20˚C
Rated voltage (V)
6.3 to 100
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
160 to 450
CV < 1000 :
I =
0.1CV+40 (µA) max. (1 minute's)
=
CV > 1000 :
I =
0.04CV+100 (µA) max. (1 minute's)
Measurement frequency : 120Hz, Temperature : 20˚C
Leakage Current
Leakage current
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Tangent of loss angle (tan
δ)
Rated voltage (V
)
tan
δ
(
MAX.
)
6.3
0.22
10
0.19
16
0.16
6.3 · 10
3
25
0.14
16 · 25
3
35
0.12
35 · 50
3
50
0.10
63
0.09
100
0.08
250
3
6
160 to 250 315 · 350 400 · 450
0.15
0.20
0.25
120Hz
Stability at Low Temperature
Rated voltage (V)
Z
25˚C / Z+20˚C
Impedance ratio
Z
40˚C / Z+20˚C
(MAX.)
Z
55˚C / Z+20˚C
63 · 100 160 · 200
3
4
3
315 · 350
4
8
400
6
10
450
15
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20˚C after D.C. bias plus rated
ripple current is applied for 8000 hours (2000 hours for
φD=4,
5 and 6.3, 3000 hours for
φD=8,
5000 hours for
φD=10,
7000
hours for
φD=12.5)
at 105 ˚ C, the peak voltage shall not
exceed the rated voltage.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
φ
d
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 10V 680µF)
1
2
3
4
5
6
7
8
9 10 11
12
U PW 1 A 6 8 1 MP D
φ
D
+
MAX.
P
±
0.5
Size code
Configuration
Capacitance tolerance (±20%)
L+
MAX.
Pressure relief vent
15
MIN
4
MIN
Rated capacitance (680µF)
Rated voltage (10V)
φ
6.3up (No pressure relief vent for 7mmL products)
(mm)
Series name
Type
(L = 7) 1.0
(L < 20) 1.5
(L 20) 2.0
φ
D
P
4
1.5
0.45
0.5
5
2.0
6.3
2.5
8
3.5
0.6
0.5
10
5.0
0.6
0.5
12.5
5.0
0.6
0.8
0.5
16
7.5
0.8
0.5
18
7.5
0.8
0.5
20
10.0
1.0
0.5
22
10.0
1.0
1.0
25
12.5
1.0
1.0
Configuration
φ
D
4·5
6.3
8 · 10
12.5 to 18
20 to 25
Pb-free leadwire
Pb-free PET sleeve
φ
d
0.5
0.5
(0.45) (0.45)
0.5
0.5
: Applied to L>25 products
( ): Applied to 7mmL products
DD
ED (7mm L : DD)
PD
HD
RD
Please refer to page 20 about the end seal configulation.
Frequency coefficient of rated ripple current
V
Cap. (µF)
Frequency
50Hz
0.20
0.55
0.70
0.80
0.80
0.90
120Hz
0.30
0.65
0.75
0.85
1.00
1.00
300Hz
0.50
0.75
0.80
0.90
1.25
1.10
1kHz
0.80
0.85
0.90
0.95
1.40
1.13
10kHz or more
1.00
1.00
1.00
1.00
1.60
1.15
0.47 to 56000
6.3 to 100
68 to 330.
390 to 1000.
.1200
to 150000
160 to 450
0.47 to 22000
330 to 4700.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
CAT.8100Z

UPW1C681MPD1CA Related Products

UPW1C681MPD1CA UPW1E100MDD1FA UPW1V470MED1CA UPW1V470MED1FA UPW1A102MPD6FV UPW1A332MHD1CA UPW1C100MDD1CA UPW1E152MHD6AA UPW1V331MPD1CA UPW1V471MPD1AA
Description Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 680uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 10uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 47uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 47uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 1000uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 3300uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 10uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 1500uF Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 330uF Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 680 µF 10 µF 47 µF 47 µF 1000 µF 3300 µF 10 µF 1500 µF 330 µF 470 µF
Capacitor type ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR
diameter 10 mm 5 mm 6.3 mm 6.3 mm 8 mm 12.5 mm 5 mm 12.5 mm 10 mm 10 mm
dielectric materials ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET)
ESR 68 mΩ 600 mΩ 250 mΩ 250 mΩ 65 mΩ 30 mΩ 600 mΩ 30 mΩ 68 mΩ 52 mΩ
leakage current 0.3264 mA 0.0075 mA 0.04935 mA 0.04935 mA 0.3 mA 0.99 mA 0.0048 mA 1.125 mA 0.3465 mA 0.4935 mA
length 16 mm 11 mm 11 mm 11 mm 20 mm 25 mm 11 mm 25 mm 16 mm 20 mm
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
negative tolerance 20% 20% 20% 20% 20% 20% 20% 20% 20% 20%
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package form Radial Radial Radial Radial Radial Radial Radial Radial Radial Radial
method of packing BULK BULK BULK BULK BULK BULK BULK BULK BULK BULK
polarity POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED
positive tolerance 20% 20% 20% 20% 20% 20% 20% 20% 20% 20%
Rated (DC) voltage (URdc) 16 V 25 V 35 V 35 V 10 V 10 V 16 V 25 V 35 V 35 V
Guideline AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
ripple current 787.5 mA 54 mA 87 mA 87 mA 746.25 mA 1657.5 mA 54 mA 1657.5 mA 682.5 mA 915 mA
surface mount NO NO NO NO NO NO NO NO NO NO
Delta tangent 0.16 0.14 0.12 0.12 0.19 0.25 0.16 0.16 0.12 0.12
Terminal pitch 5 mm 5 mm 2.5 mm 5 mm 5 mm 5 mm 2 mm 5 mm 5 mm 5 mm
Terminal shape WIRE WIRE WIRE WIRE WIRE WIRE WIRE SNAP-IN WIRE SNAP-IN
