192210224

Description
COPPER ALLOY, TIN FINISH, RING TERMINAL
CategoryThe connector    terminals
File Size170KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

192210224 Overview

COPPER ALLOY, TIN FINISH, RING TERMINAL

192210224 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Manufacturer's serial number19221
Terminal and terminal strip typesBULLET TERMINAL
Wire gauge8 AWG
Base Number Matches1
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:

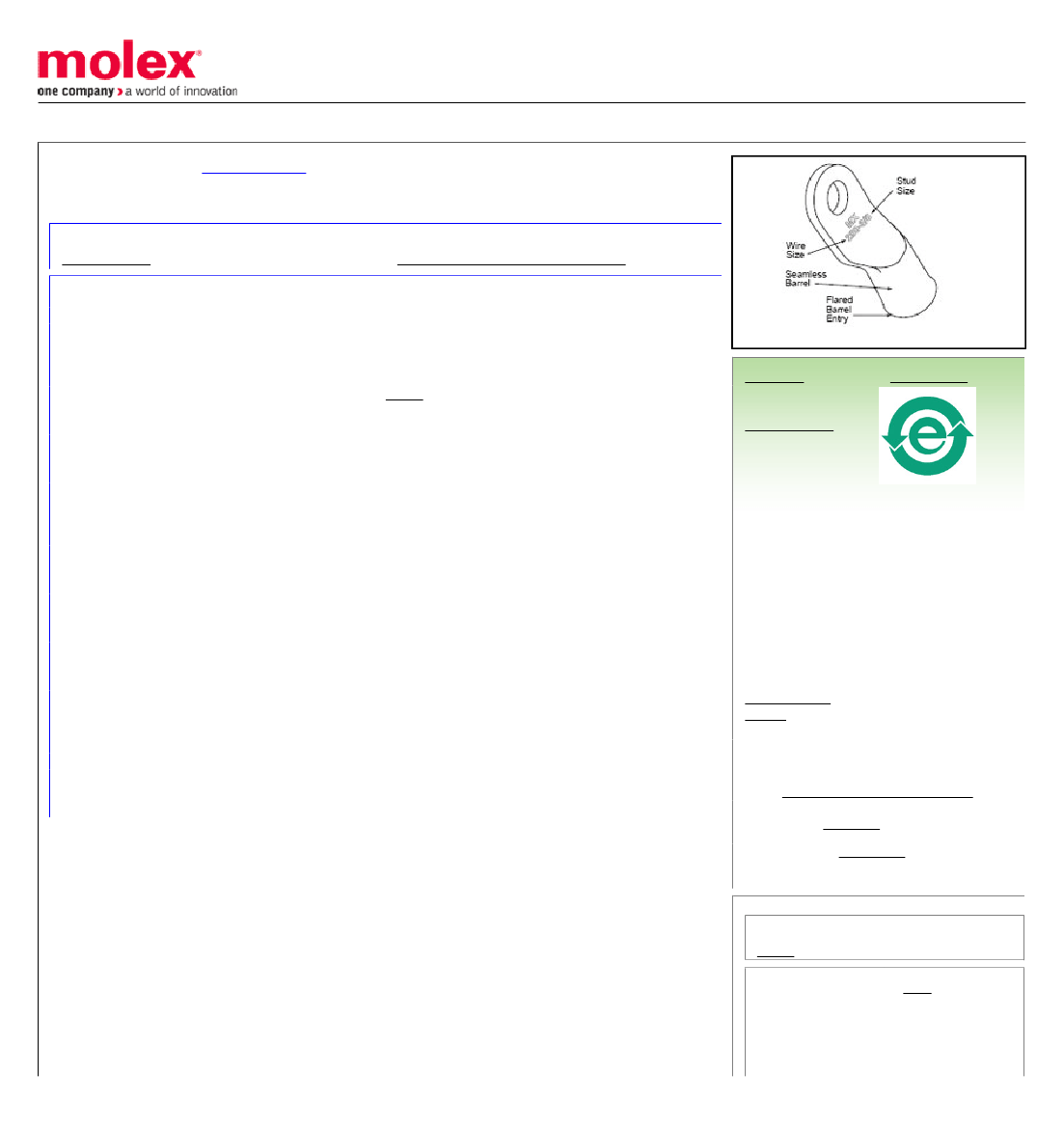

Drawing (PDF)
0192210224
Active
Compression Style Ring Tongue Terminal for 8 AWG Wire, Stud Size 1/4", Plated
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: Yes
4,4’-
Diaminodiphenylmethane
Dibutyl phthalate
Diarsenic pentaoxide
Diarsenic trioxide
Bis (2-
ethyl(hexyl)phthalate)
(DEHP)
Hexabromocyclododecane
(HBCDD)
Lead hydrogen
arsenate
Triethyl arsenate
Benzyl butyl phthalate
2,4-Dinitrotoluene
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19221
Heavy Duty
Yes
N/A
Battery Cable Lug
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
None
Tin
Bag
160
4
160
4
1/4" (M6)
Crimp or Compression
N/A
8
6.60 - 10.5
Material Info
Old Part Number
BCL-814-PL
Reference - Drawing Numbers

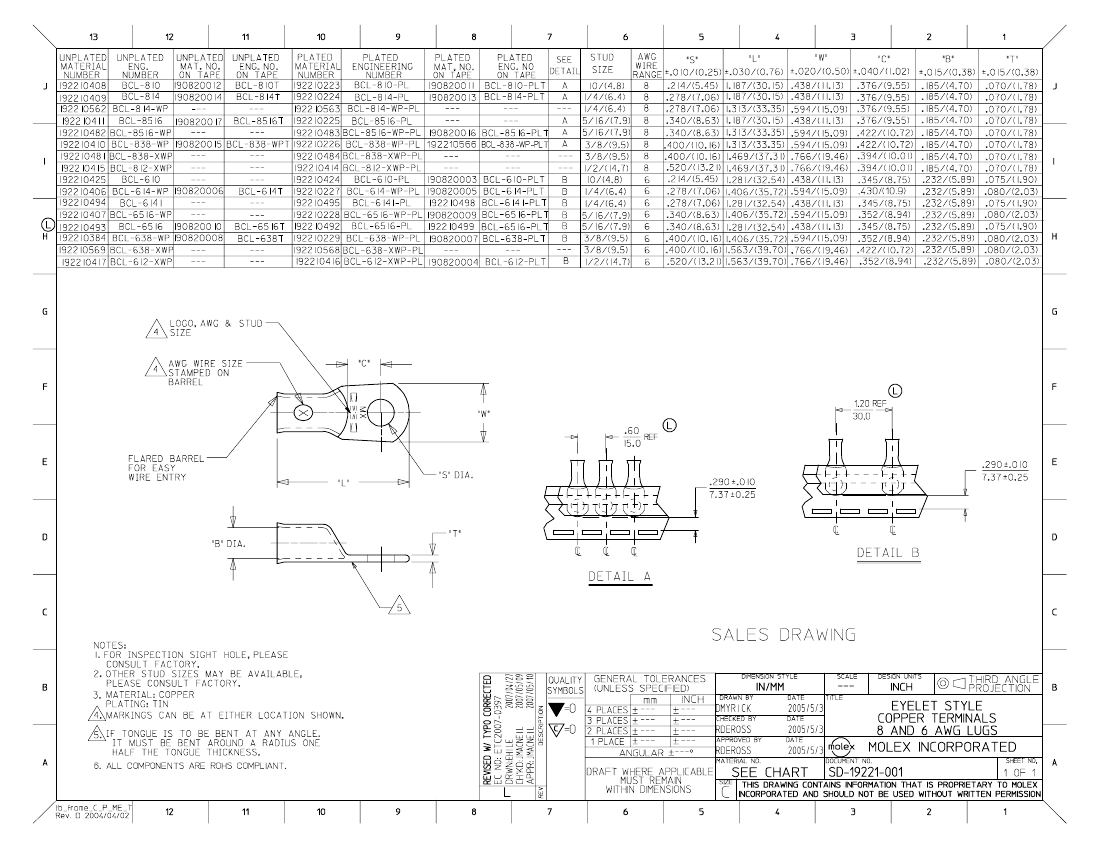

Sales Drawing
SD-19221-001
Search Parts in this Series
19221Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.

192210224 Related Products

192210224 BCL-814-PL
Description COPPER ALLOY, TIN FINISH, RING TERMINAL COPPER ALLOY, TIN FINISH, RING TERMINAL
Maker Molex Molex
Reach Compliance Code compliant unknow
ECCN code EAR99 EAR99
Terminal and terminal strip types BULLET TERMINAL WIRE TERMINAL
Wire gauge 8 AWG 8 AWG
