(VCC = 26 V, Pout = 21 W, ICQ = 100 mA, f = 960 MHz)
Load Mismatch
(VCC = 26 V, Pout = 21 W, ICQ = 100 mA, Load VSWR = 5:1, at
All Phase Angles at Frequency of Test)
Collector Efficiency
(VCC = 26 V, Pout = 21 W, f = 960 MHz)
Over Drive
(VCC = 26 V, Pin = 6 W, f = 960 MHz)
Gp
ψ
No Degradation in Output Power
η
OD
50
55
—
%
7.5
8.5
—
dB
No Degradation in Output Power
f = 860 MHz
f = 860 MHz
Zin
980
980
ZOL*
Zo = 10
Ω
VCE = 26 V
f
(MHz)
860
880
900
935
960
980
Zin
(Ω)
2.9 – j0.4
2.9 – j0.9
2.9 – j1.45
3.2 – j0.95
3.25 – j1.5
3.55 – j1.1
Pout = 21 W
ZOL*
(Ω)
2 + j2.2
2.1 + j2.2
2.25 + j2.5
2.4 + j2.3
2.5 + j2
2.6 + j2.15
ZOL* = Conjugate of optimum load impedance
ZOL* =
into which the device operates at a given
ZOL* =
output power, voltage, current and frequency.

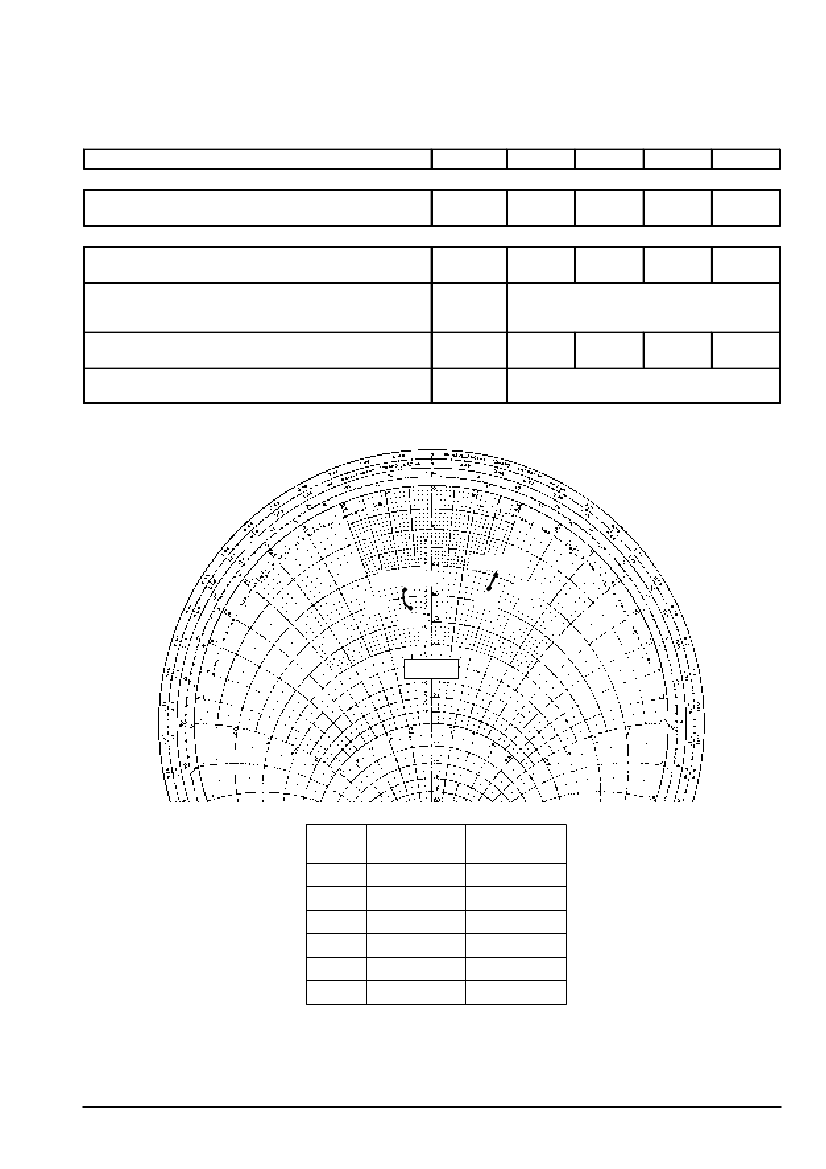

Figure 1. Series Equivalent Input and Output Impedances
TP3032
2
MOTOROLA RF DEVICE DATA
+
T1
R4
C13
R2
R3
C12
C11
C10
R1
C9
C8
C7
FB
R5
C5
C6
C1
C2
DUT
C3
C4
RF OUTPUT
50
Ω
–
D1
D2
RF INPUT
50
Ω
Components List
C1
C2
C3
C4
C5
C6
C7,C8,C11
C9,C12
C10,C13
300 pF, ATC Chip Capacitor 100B
12 pF, ATC Chip Capacitor 100A
10 pF, ATC Chip Capacitor 100A
1 – 4.5 pF, Johanson Capacitor 9410–0
6.8 pF, ATC Chip Capacitor 100A
82 pF, ATC Chip Capacitor 100B
330 pF, Chip Capacitor
15 nF, Chip Capacitor
6.8
µF,
35 V, Tantalum Capacitor
D1,D2
FB
R1
R2
R3
R4
R5
T1
Diode, 1N4148
Ferrite Bead
75
Ω,
Chip Resistor 1206
10 kΩ, Trimmer Resistor
1 kΩ, 1/2 W, Resistor
82
Ω,
3 W, Resistor
1
Ω,
1/4 W, Resistor
Transistor, BD135
Figure 2. 960 MHz Test Circuit Schematic
TYPICAL CHARACTERISTICS
40
35
Pout , OUTPUT POWER (WATTS)
Pout , OUTPUT POWER (WATTS)
30
25
24 V
20
15
10
5
0
0
1
2
3
4
5
IQ = 100 mA
f = 960 MHz
6
7
26 V
40
35
30
25
20
15
10
5
0
900
920
940
960
VCC = 26 V
IQ = 100 mA
980
1000
3W
Pin = 6 W
Pin, INPUT POWER (WATTS)
f, FREQUENCY (MHz)
Figure 3. Output Power versus Input Power
45
40
P in , OUTPUT POWER (WATTS)
Figure 4. Output Power versus Frequency
Pin = 6 W
35
30
25
20
15
10
0
18
20
22
24
26
28
IQ = 100 mA
f = 960 MHz
30
32
VCC, SUPPLY VOLTAGE (VOLTS)
3W
Figure 5. Output Power versus Supply Voltage
MOTOROLA RF DEVICE DATA
TP3032
3
T1
D2
R3
R2
R4
D1
C13
C12
C11
OUTPUT
C5
C6
C10 R1 C9 C8
C7
R5
FB
C1
INPUT
C2
C3
C4

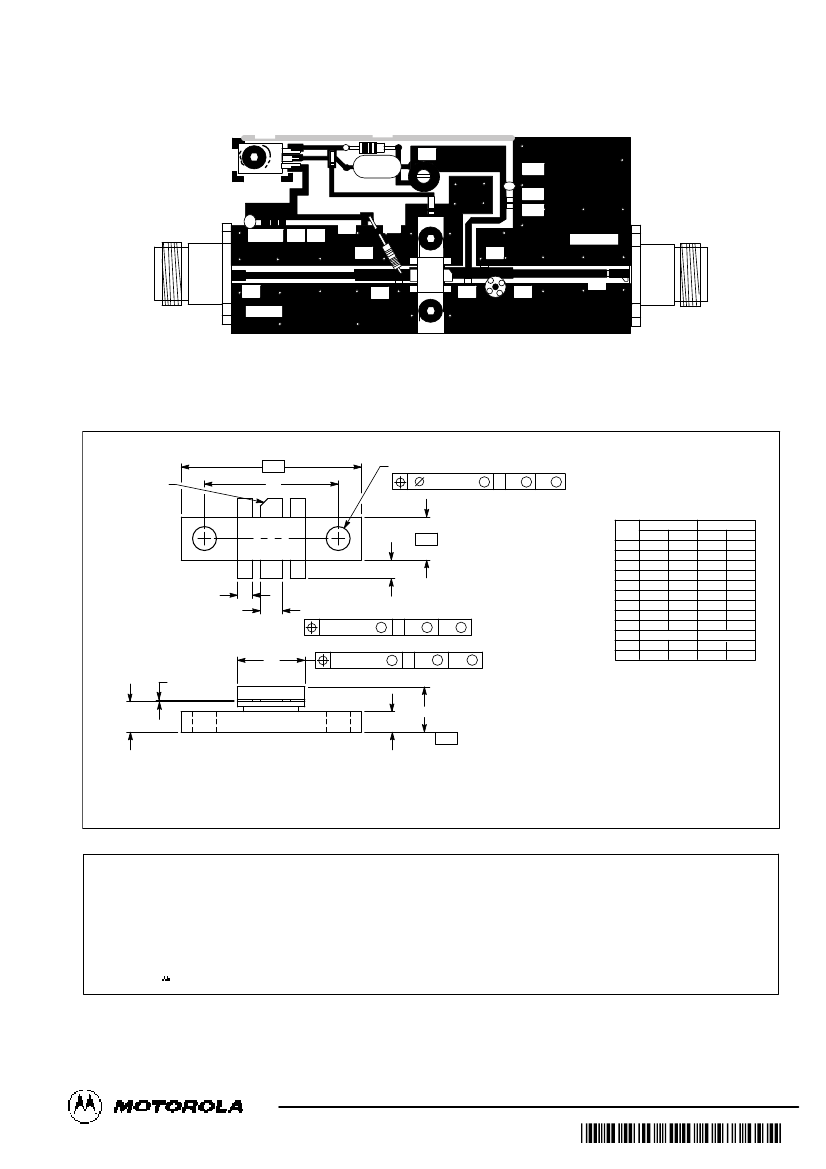

Figure 6. Test Circuit Components View
PACKAGE DIMENSIONS
IDENTIFICATION
NOTCH
6
-A-
L
5
4
Q
2 PL
0.15 (0.006)
M
T A
M
N
M
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
INCHES
MIN
MAX
0.965 0.985
0.355 0.375
0.230 0.260
0.115 0.125
0.102 0.114
0.075 0.085
0.160 0.170
0.004 0.006
0.090 0.110
0.725 BSC
0.225 0.241
0.125 0.135
MILLIMETER
MIN
MAX
24.52 25.01
9.02
9.52
5.85
6.60
2.93
3.17
2.59
2.90
1.91
2.15
4.07
4.31
0.11
0.15
2.29
2.79
18.42 BSC
5.72
6.12
3.18
3.42
-N-
1
2
3
K
F
D
2 PL
0.38 (0.015)
M
B
J
H
C
E
-T-
SEATING
PLANE
T A
M
M
N
M
M
0.38 (0.015)
T A
N
M
STYLE 2:
PIN 1.
2.
3.
4.
5.
6.
DIM
A
B
C
D
E
F
H
J
K
L
N
Q
EMITTER (COMMON)
BASE (INPUT)
EMITTER (COMMON)
EMITTER (COMMON)
COLLECTOR (OUTPUT)
EMITTER (COMMON)
CASE 319–07
ISSUE M
