This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0352040192
Active
2.36mm (.093") Diameter Wire-to-Board Header, Vertical, with Positive Latch, 1 Circuit,
Lead-free, Red
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Product Name
PCB Headers
35204
Wire-to-Board
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
1
1
30
No
No
No
None
Yes
Tin
Tin
1
Vertical
0.154 In
3.90 mm
No
Yes
0.062 In
1.60 mm
Tube
0.000 In
0.00 mm
0.000 In
0.00 mm
Yes
No
Fully
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
35204Series
Mates With
35108 Wire-to-Board Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
300V
Material Info

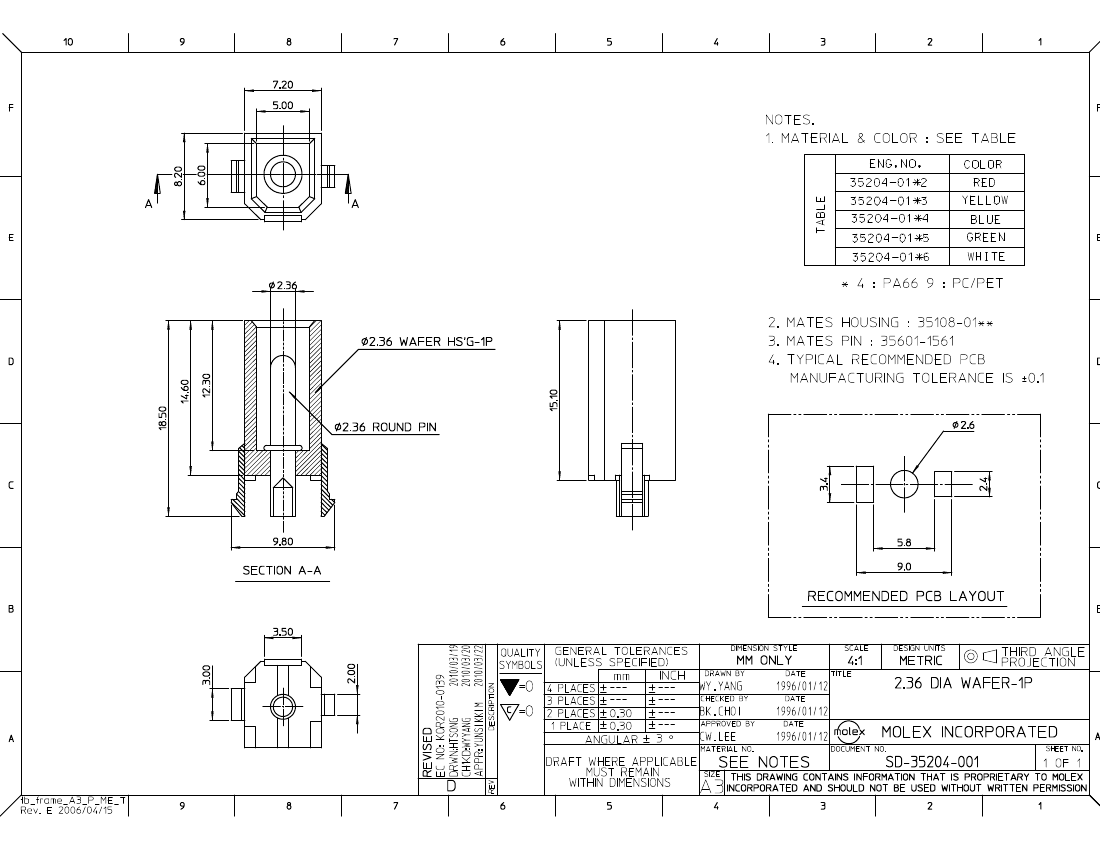

Reference - Drawing Numbers
Sales Drawing
SD-35204-001
