This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0352100410
Active
kk
2.50mm (.098") Pitch KK® Board-to-Board Receptacle, Vertical, Mates With 3022-NB,
4 Circuits
Documents:
3D Model

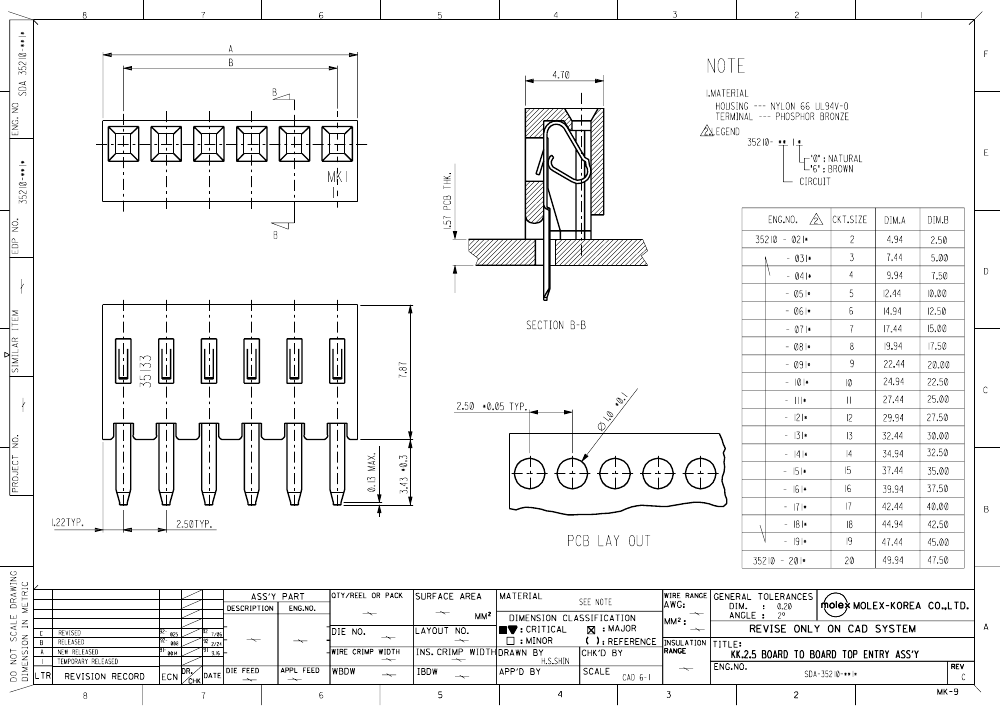

Drawing (PDF)
Product Specification PS-3022-NB-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
35210
Board-to-Board
kk
KK®
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
4
4
Natural
30
94V-0
No
No
None
No
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
No
None
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
35210Series
Mates With
3022-NB
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
3A
No
250V
Material Info
Reference - Drawing Numbers
