This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

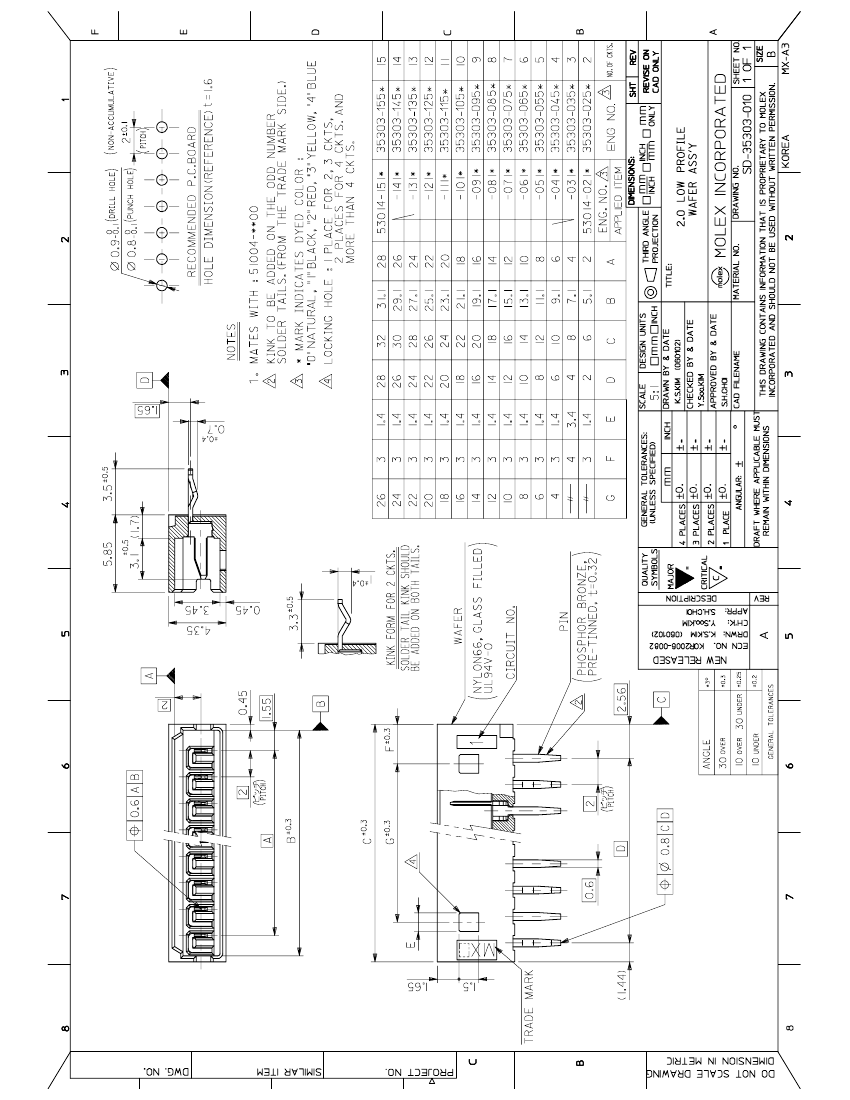

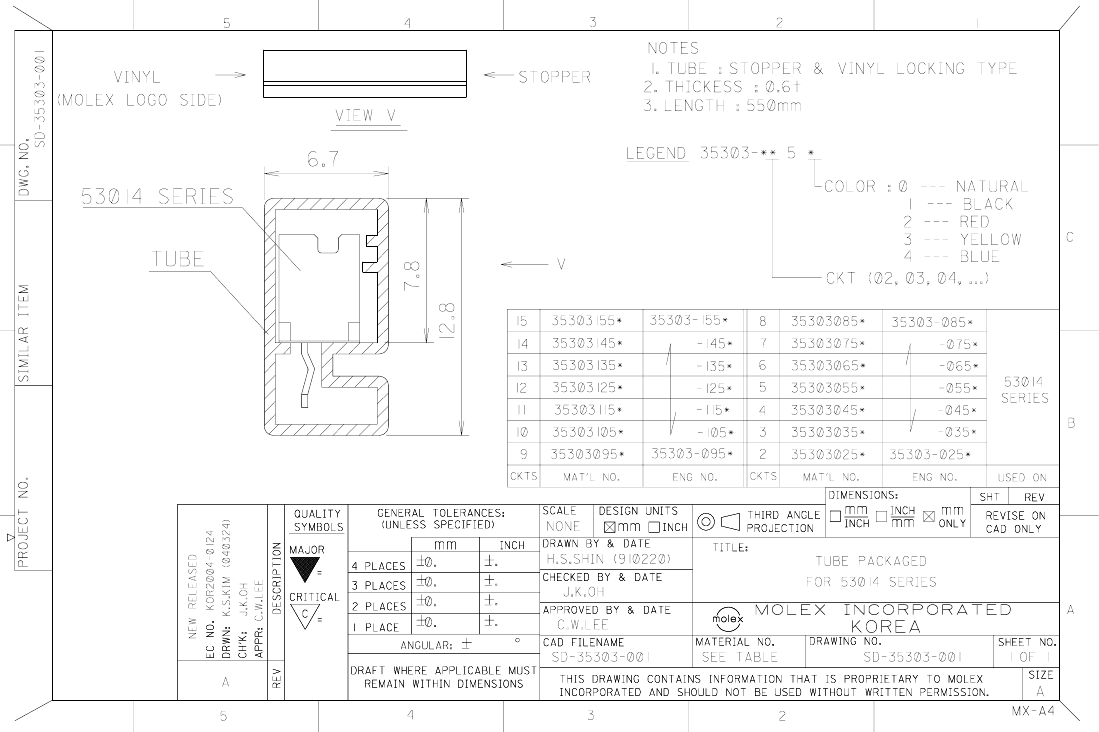

Drawing (PDF)

0353030850

Active

2.00mm (.079") Pitch Wire-to-Board Header, Vertical, Blade Pin, Shrouded, 8 Circuits

Product Specification PS-35303-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR 19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Application

Product Name

PCB Headers

35303

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Phosphor Bronze

Tin

Nylon

Vertical

0.138 In

3.50 mm

Yes

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.80

Partial

-20°C to +85°C

Through Hole

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

35303Series

Mates With

51004 Wire-to-Board Housing
