This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0353130260
Active
3.96mm (.156") Pitch Header, Vertical, Shrouded, with Positive Lock, 2 Circuits, PA
Polyamide (Nylon) 6/6, Glass-filled, Natural
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PS-35156-004 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
PCB Headers
35313
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
No
2
2
Natural
30
No
94V-0
No
No
None
Yes
Tin
Tin
Nylon
1
Vertical
0.134 In
3.40 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
0.156 In
3.96 mm
200
5
200
5
Yes
No
Partial
No
Search Parts in this Series
35313Series
Mates With
35156 Wire-to-Board Housing
Temperature Range - Operating
Termination Interface: Style
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Material Info
Reference - Drawing Numbers
Product Specification

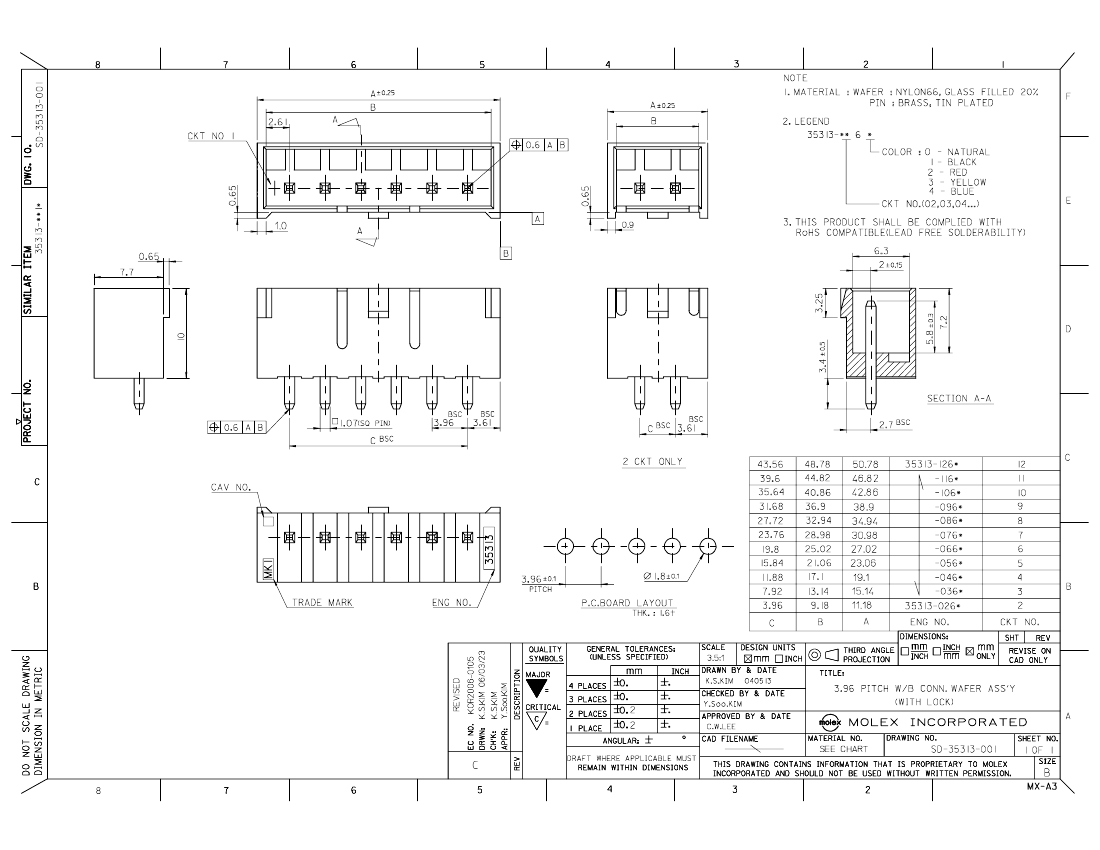

Sales Drawing
PS-35156-004
SD-35313-001
This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
