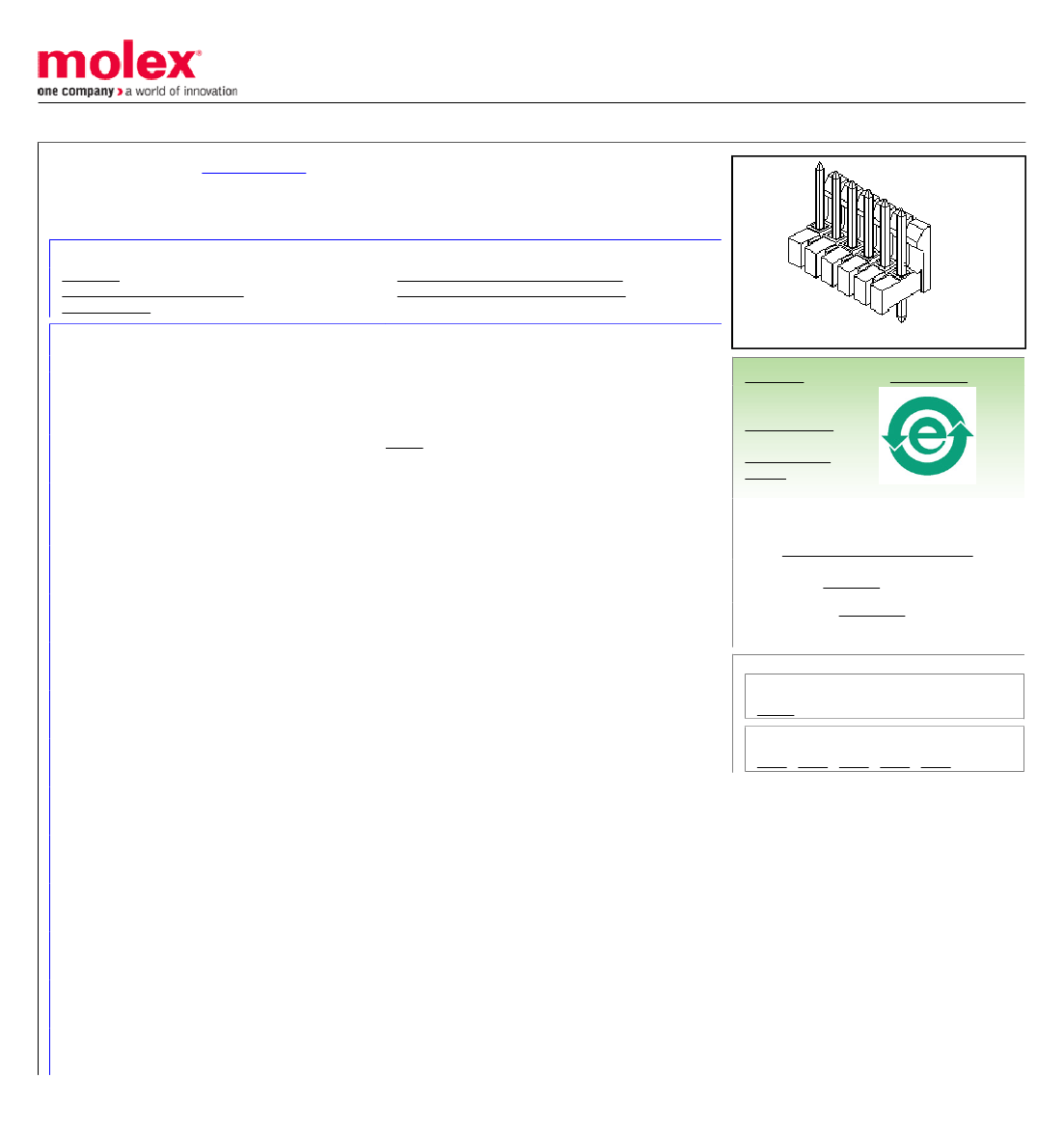

42227-0049: Description14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size58KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

42227-0049 Overview

14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 03/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022280141

Active

2.54mm (.100") Pitch KK® Header, Breakaway, Vertical, with Friction Lock, 14 Circuits,

0.38µm (15µ") Gold (Au) Selective Plating

Documents:

3D Model

Packaging Specification (PDF)

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

PCB Headers

42227

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

100

94V-0

Yes

Brass

Gold

Tin

Nylon

Vertical

0.135 In

3.43 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

0.375

100

2.5

0°C to +75°C

Through Hole

Search Parts in this Series

42227Series

Mates With

2695 , 6471 , 7880 , 4455 , 7720

Electrical
