70430-0250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70430-0250

70430-0250: Description6 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, CRIMP; CategoryThe connector The connector; File Size147KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

70430-0250 Overview

6 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, CRIMP

70430-0250 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

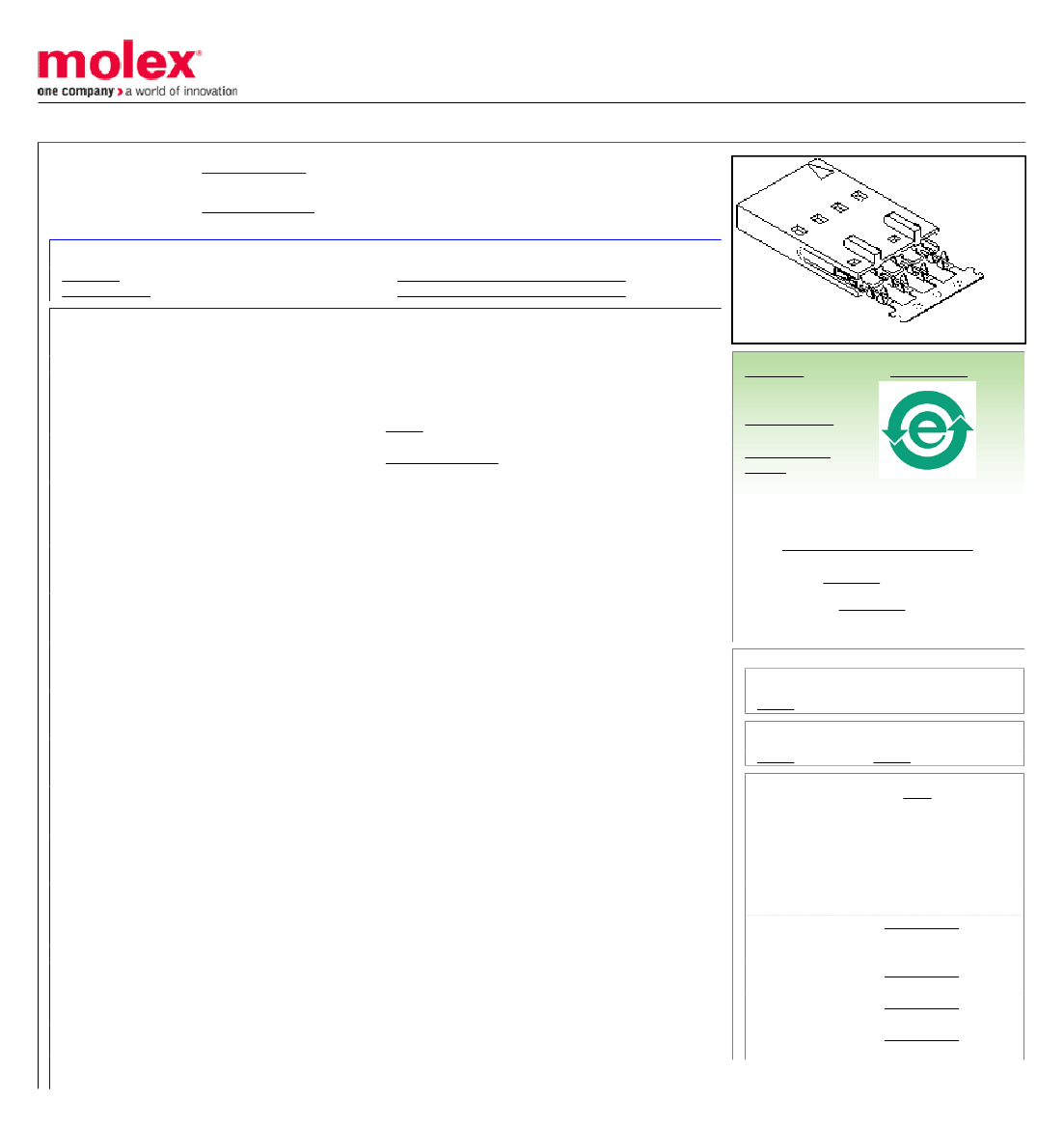

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

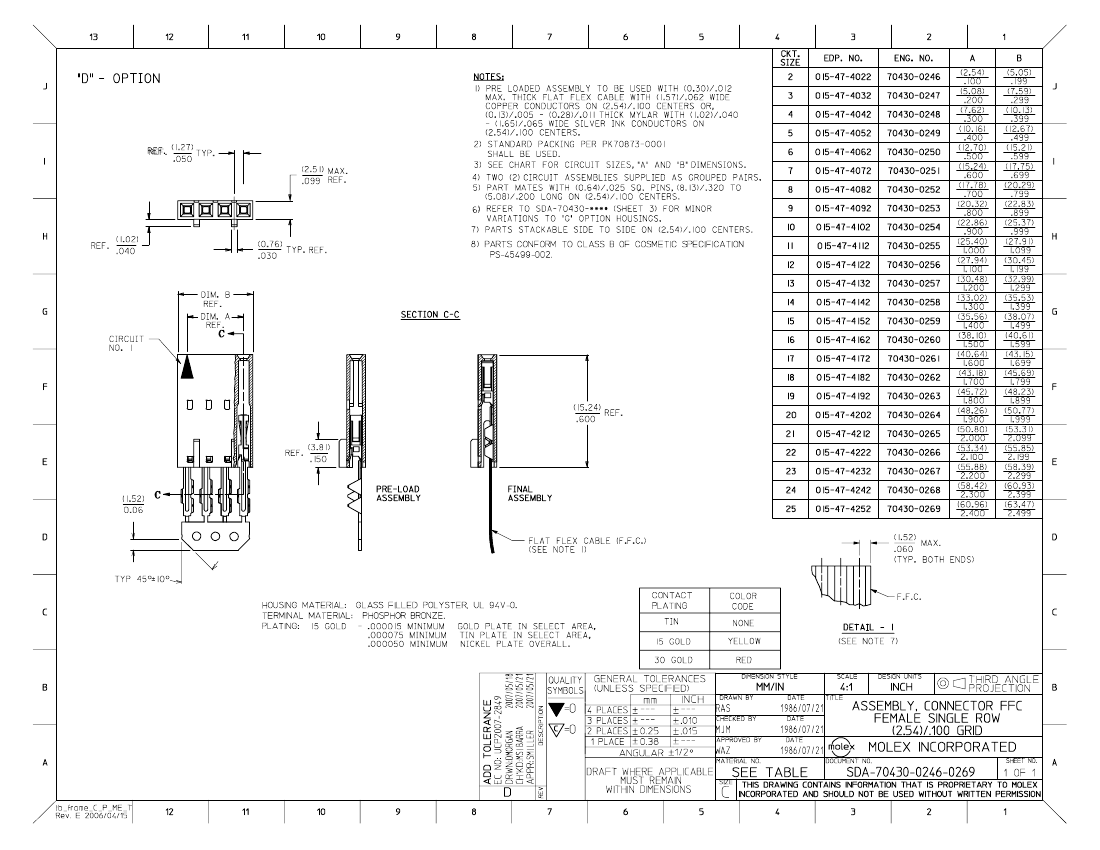

Drawing (PDF)

0015474062

Active

cgrid__sl_products

2.54mm (.100") C-Grid SL™ Single Row, Female, Version D Receptacle, 6 Circuits

Product Specification PS-70430 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19880

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Comments

Overview

Product Name

FFC/FPC Connectors

70430

Stackable Back-to-Back

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black

N/A

Vertical

94V-0

Phosphor Bronze

Gold

Tin

Polyester Alloy

Vertical

None

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

-40°C to +105°C

IDT or Pierce

FFC/FPC

Search Parts in this Series

70430Series

Mates With

70004 Interim Clip, 70013 Interim Clip

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Manual Ribbon

0638170100

Cable Cutter Hand

Tool

Tool Kit for Standard 0622007400

Manual Press FFC

Standard Manual

0622007800

Press for FFC

TM-42™ FFC and 0622018700

SL™ Termination Kit

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 2A

250V

Material Info

Old Part Number

70430-0250

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-70430

SDA-70430-0246-0269
