70634-0040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 70634-0040

70634-0040: Description6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector; File Size489KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

70634-0040 Overview

6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT

70634-0040 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	6
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	70634
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	Dual board connector
Connector male and female	Pin
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	right angle
Installation type	BOARD
Number of load rows	1
Terminal type	surface mount
UL flammability code	94V-0

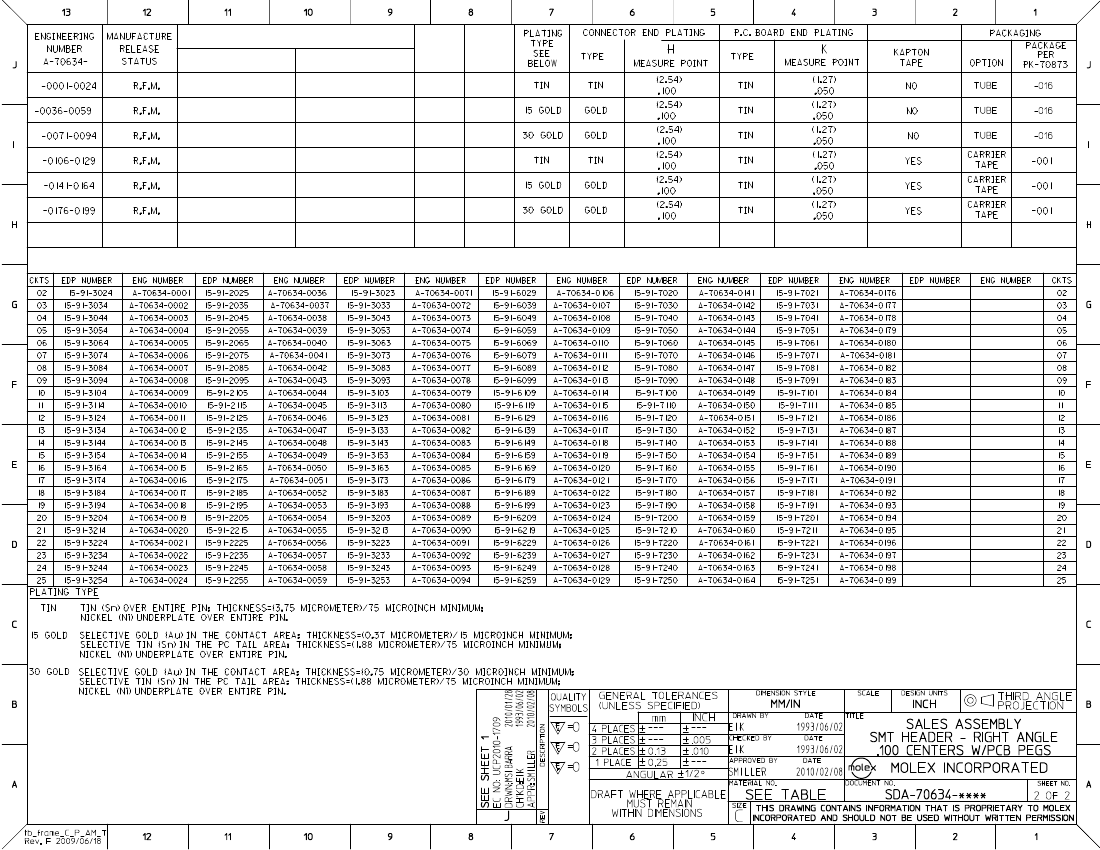

Preview

Download Datasheet

View All

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0015912065

Active

2.54mm (.100") Pitch SL™ Wire-to-Board Header, Low Profile, Surface Mount, Single

Row, Right Angle, .120" Pocket, Shrouded, with Press-fit Plastic Peg, 6 Circuits,

0.38µm (15µ") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

Documents:

3D Model

Packaging Specification (PDF)

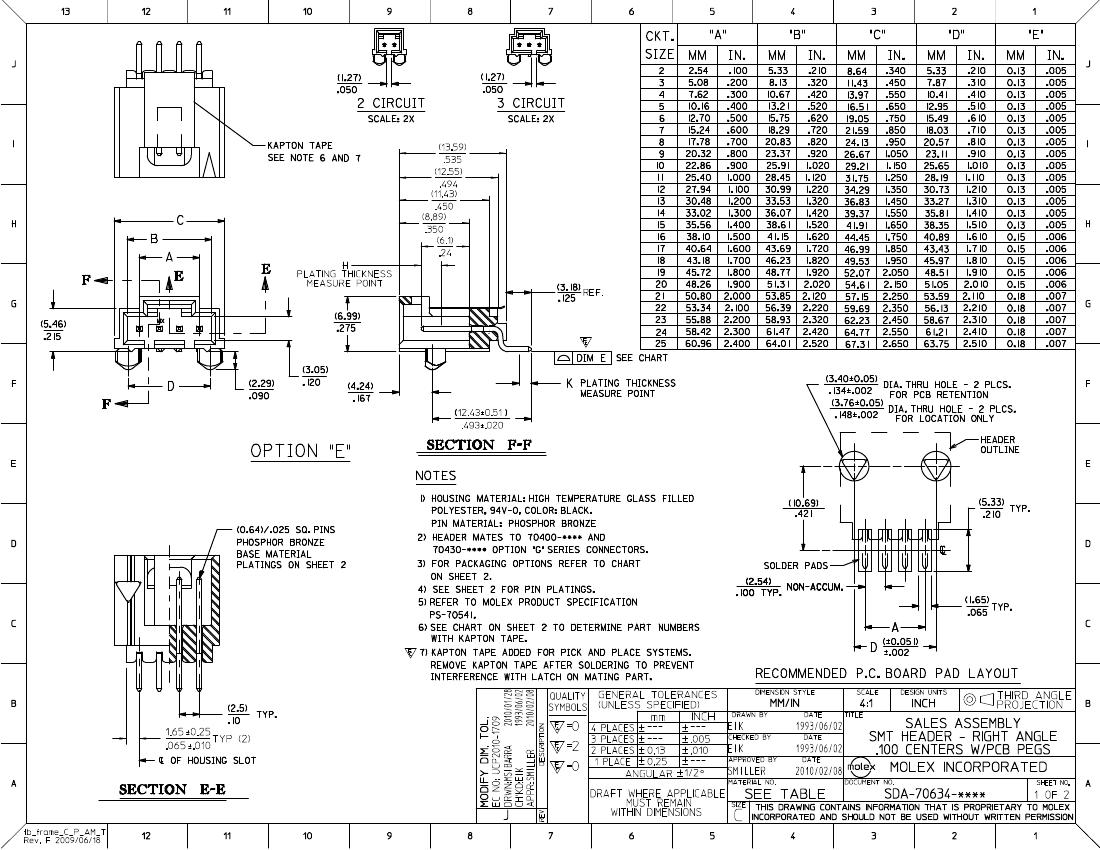

Drawing (PDF)

Product Specification PS-70400 (PDF)

Product Specification PS-70541 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

70634

Wire-to-Board

SL™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

Yes

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

Fully

-40°C to +105°C

Surface Mount

Search Parts in this Series

70634Series

Mates With

70066n , 70066g , 70430g , 70400g Housing

Electrical

Current - Maximum per Contact
