713951132: Description2.54mm (.100) Pitch C-GridÂ® PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 32 Circuits; File Size739KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

713951132 Overview

2.54mm (.100) Pitch C-GridÂ® PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 32 Circuits

Preview

Download Datasheet

View All

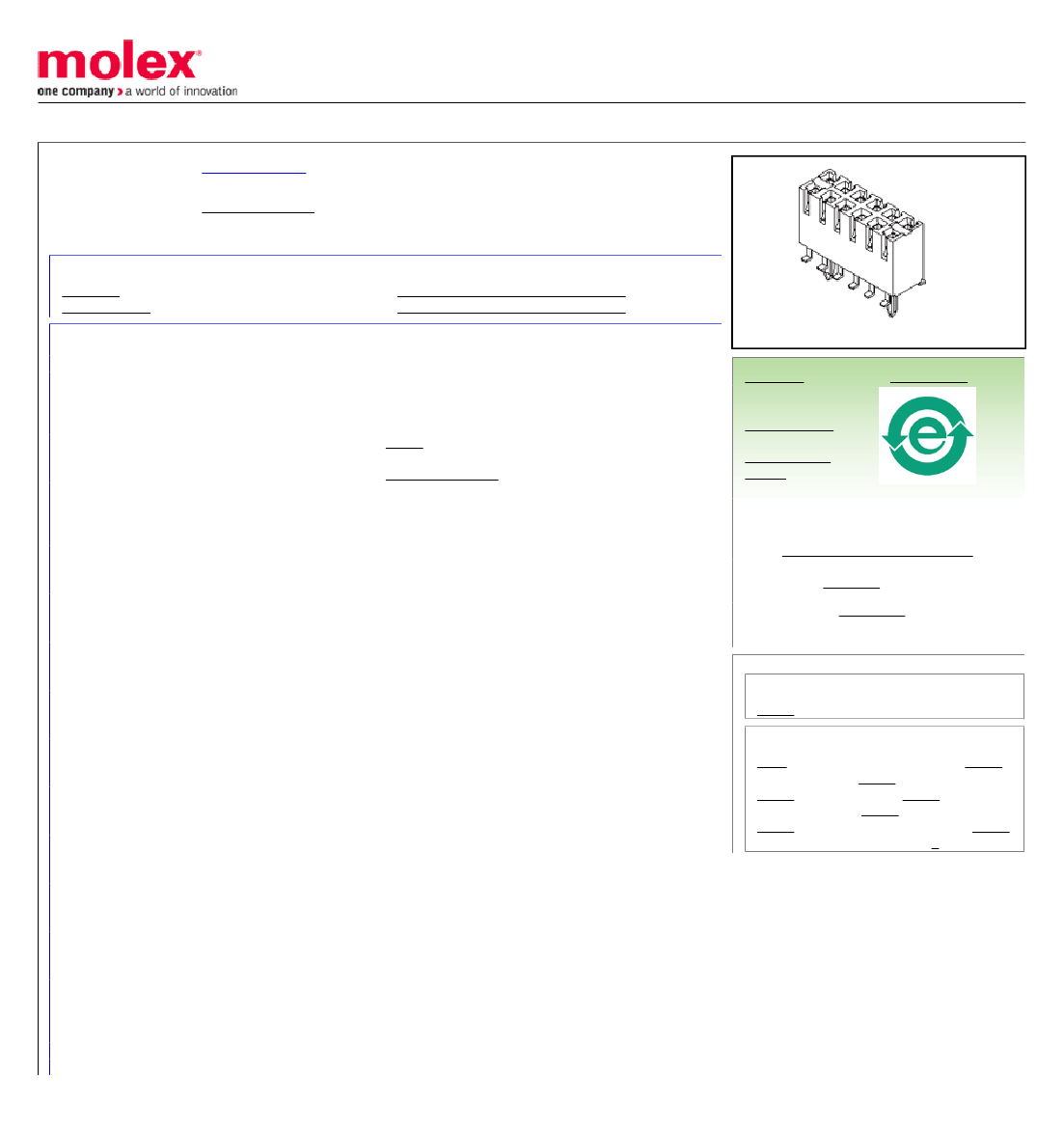

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015453132

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® PCB Connector, Surface Mount, High Profile, Dual Row,

Vertical, 32 Circuits

Documents:

3D Model

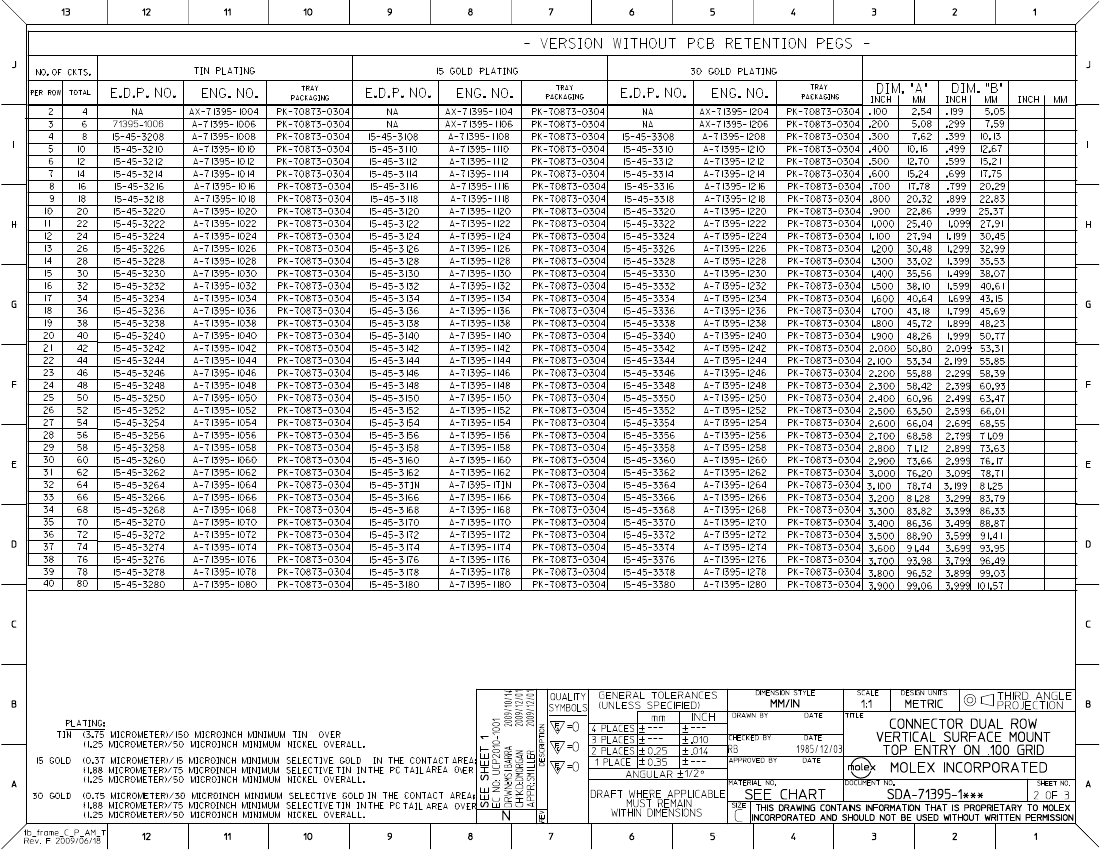

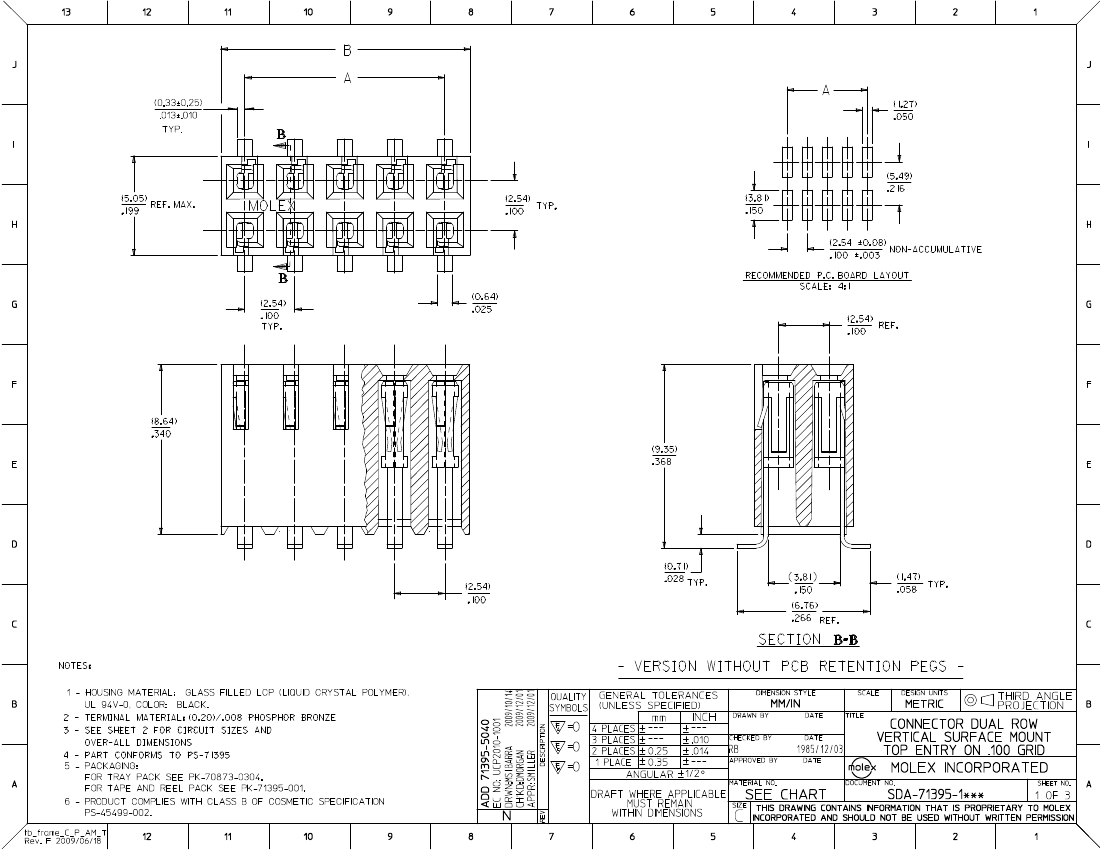

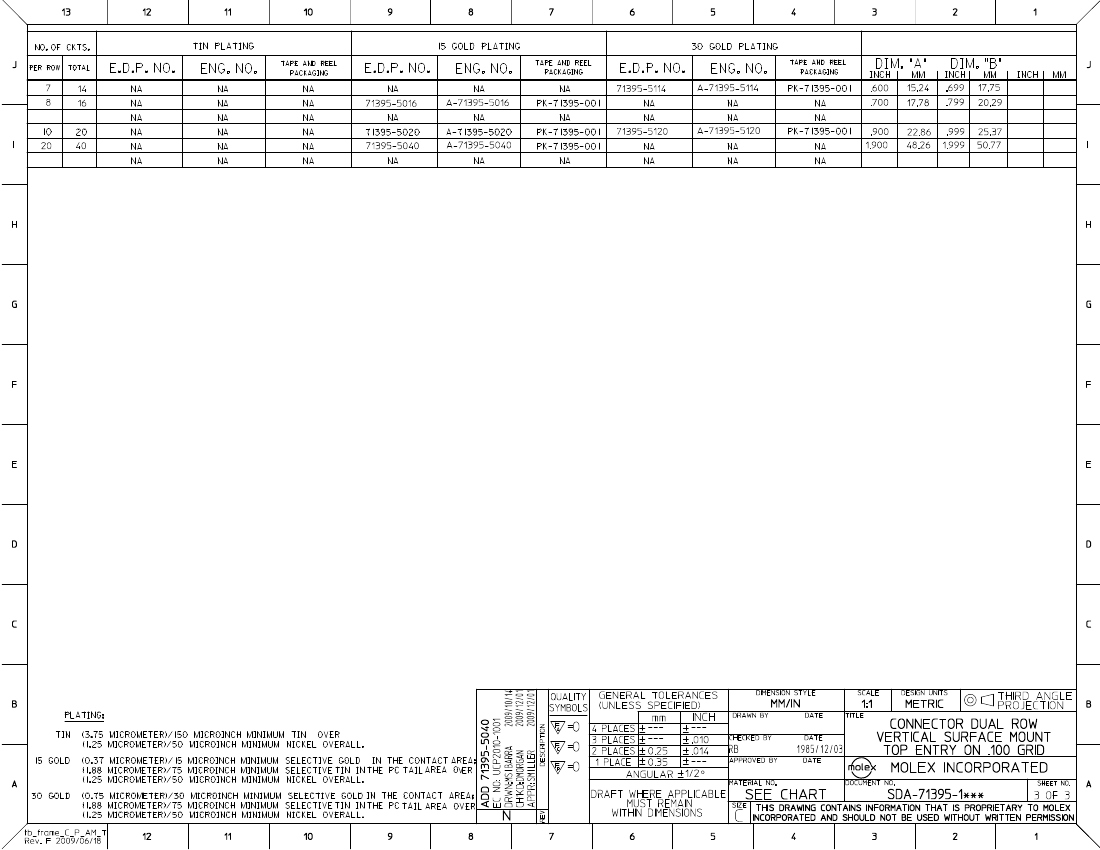

Drawing (PDF)

Product Specification PS-71395 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

71395

Board-to-Board

cgrid__sl_products

C-Grid®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.058 In

1.47 mm

Yes

None

Tray

0.100 In

2.54 mm

0.375

1.875

N/A

-40°C to +105°C

Surface Mount

Search Parts in this Series

71395Series

Mates With

8624 C-Grid® Breakaway Header, 70246

Straight Header, 70247 Right Angle Header,

70287 C-Grid® Header, 70227 Dual Row

C-Grid® Header, 70567 C-Grid® Header,

70280 C-Grid® Breakaway Header, 70524

C-Grid® Breakaway Header, 7

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

2.5A

250V
