850421249 Overview

2.54mm

850421249 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Other featuresSTANDARDS: DIN 41612; IEC 603-2
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceYES
Filter functionNO
IEC complianceYES
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts64
UL Flammability Code94V-0
This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

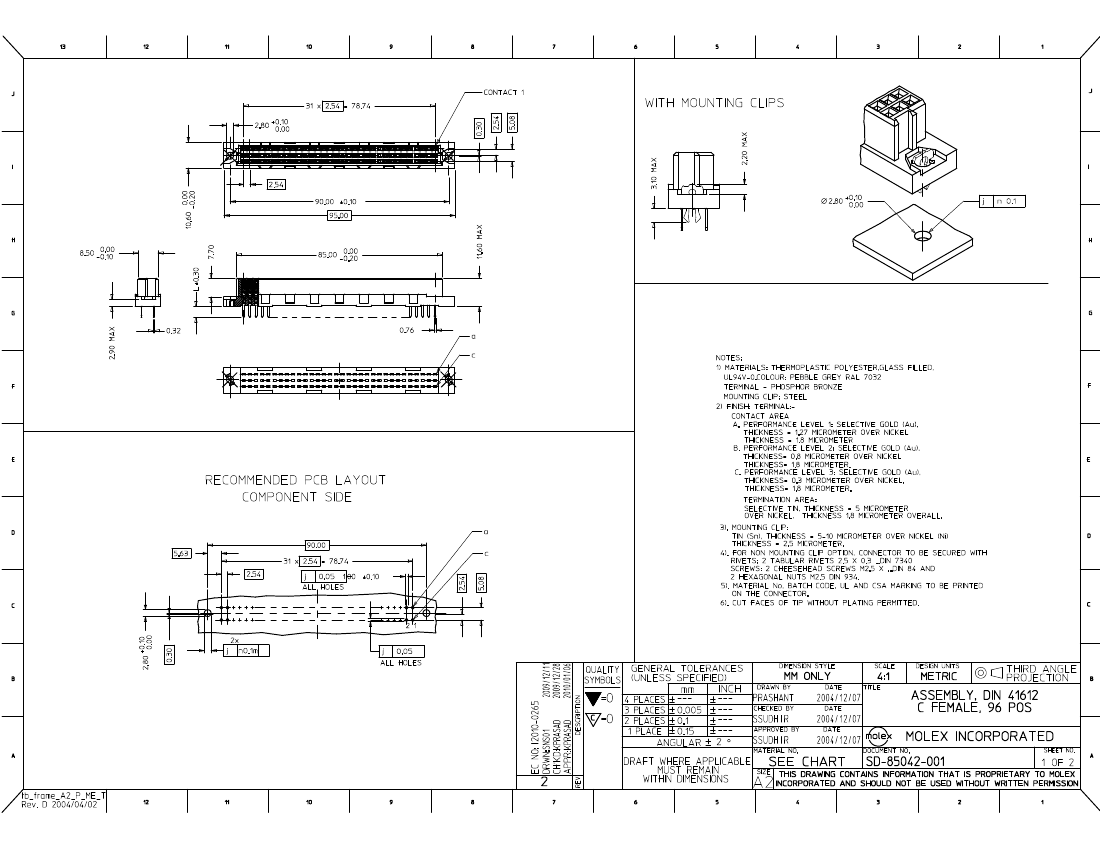

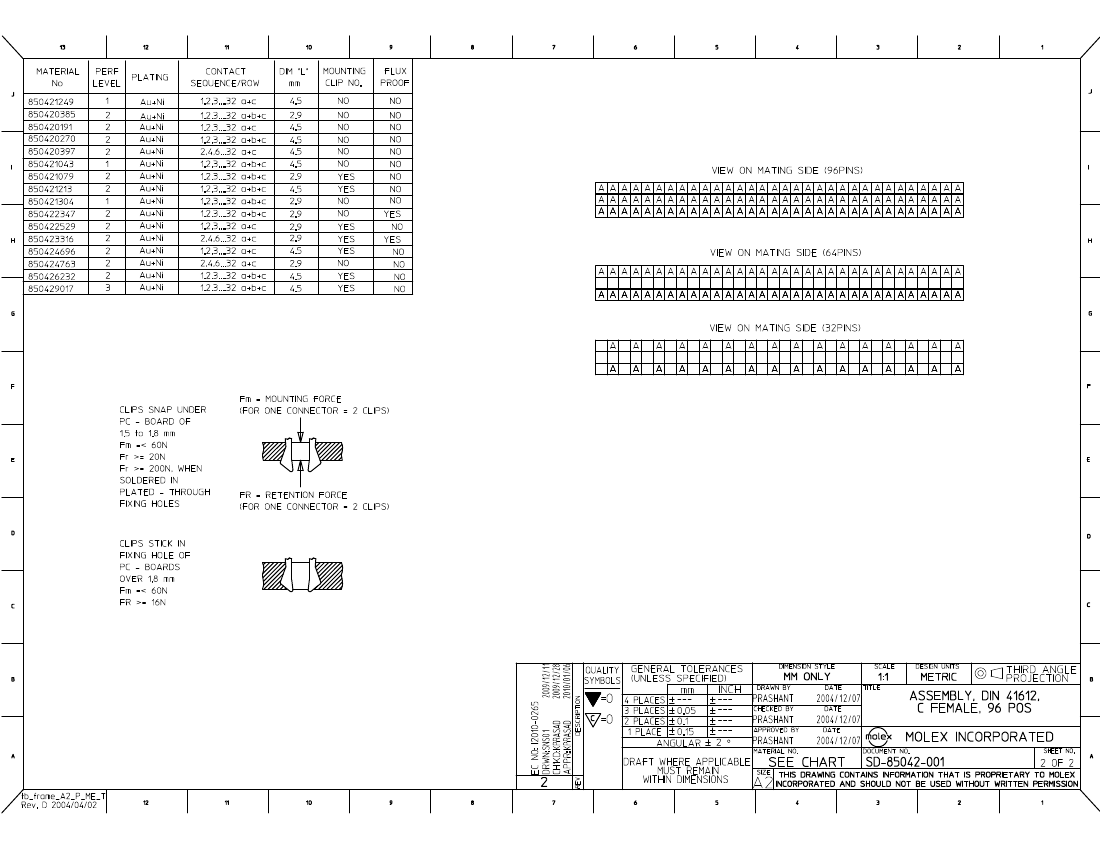

Drawing (PDF)
0850421249
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Receptacle, Style C, 64 Circuits
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
85042
Daughtercard
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
C
Search Parts in this Series
85042Series
Mates With
DIN 41612 Headers 85003 , 85013
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
64
96
Rows A & C
500
No
94V-0
No
Yes
32
Open Pin Field
3
Vertical
0.177 In
4.50 mm
No
Yes
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
Yes
No
No
-55°C to +125°C
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shielded
Voltage - Maximum
2.5A
622.0 Mbps
29
No
250V AC (RMS)
