Part Number:
Status:
Overview:
Description:
0876313013
Active
extreme_powerplus_ssi
6.35mm (.250") Pitch Power, 2.54mm (.100") Pitch Signal, EXTreme PowerPlus™ P-
S-P Header, Through Hole, Right Angle, Short Contacts, 30 Circuits, Power Alpha 4,
Signal 24, Power Beta 2, Recessed Signal Pin C1, Lead-free
Documents:
3D Model

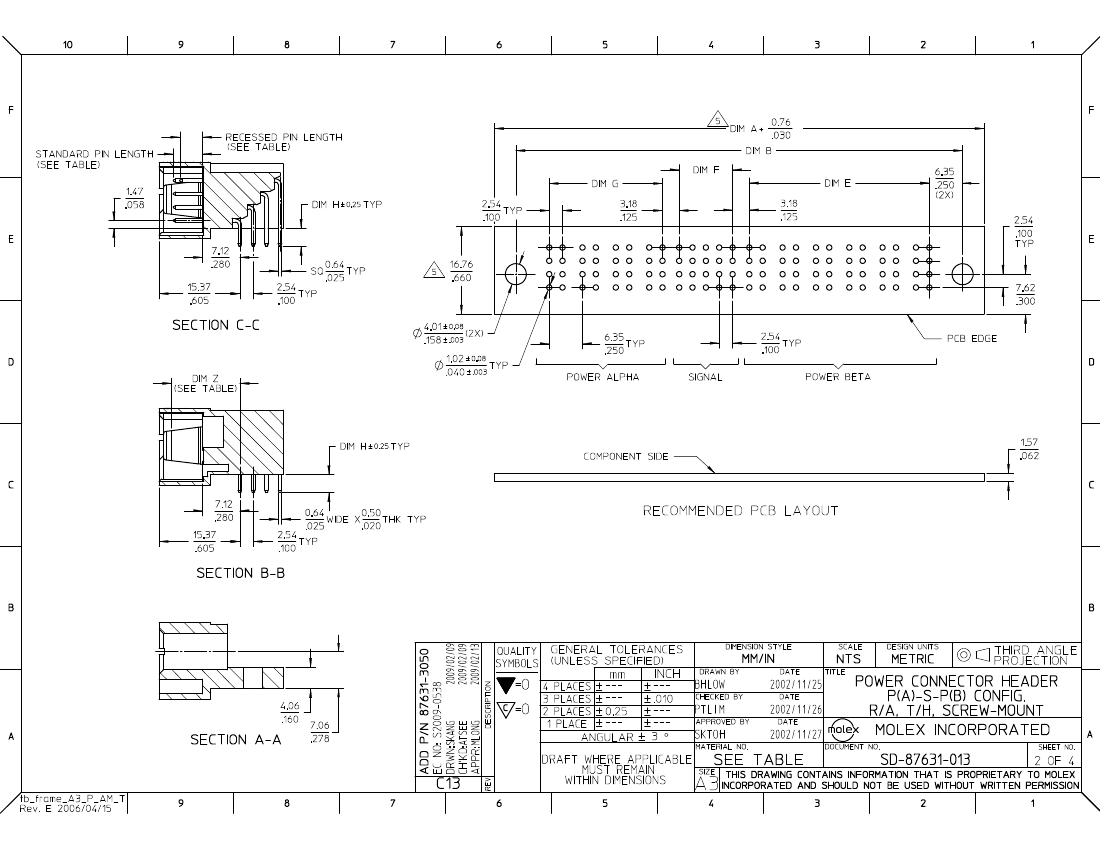

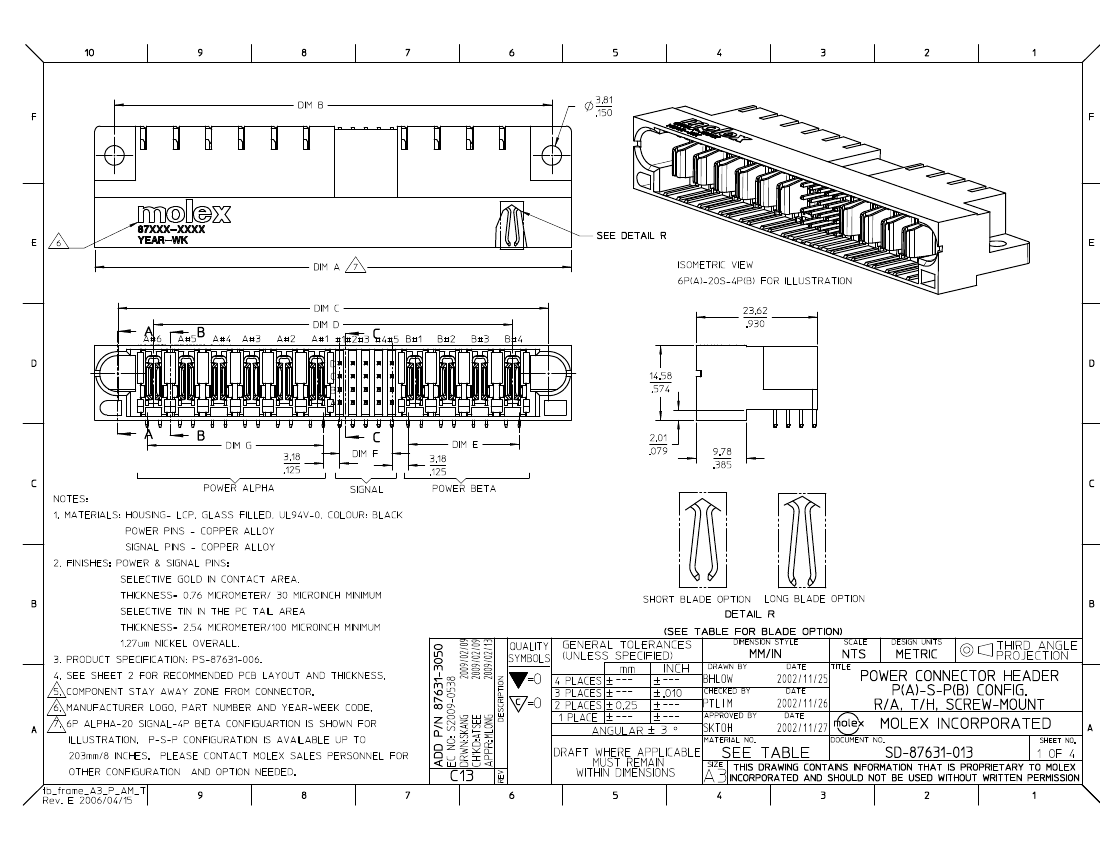

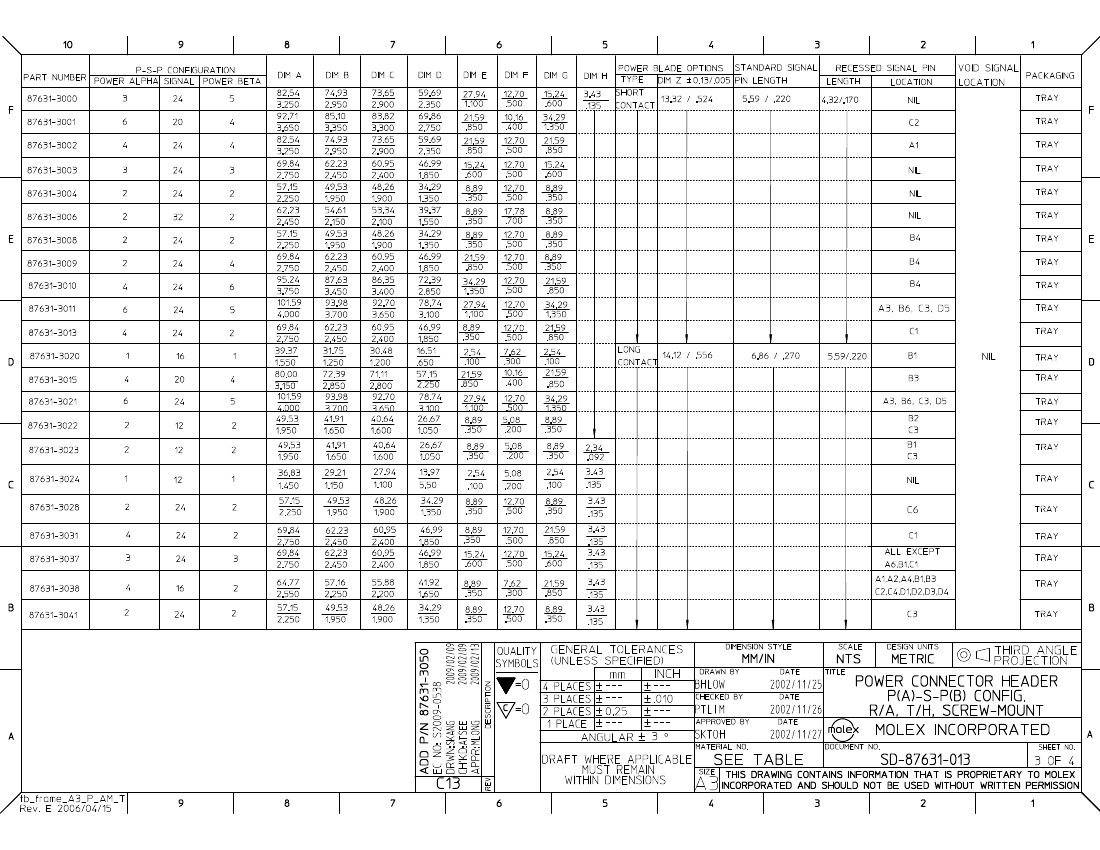

Drawing (PDF)
Product Specification PS-87631-006 (PDF)
RoHS Certificate of Compliance (PDF)

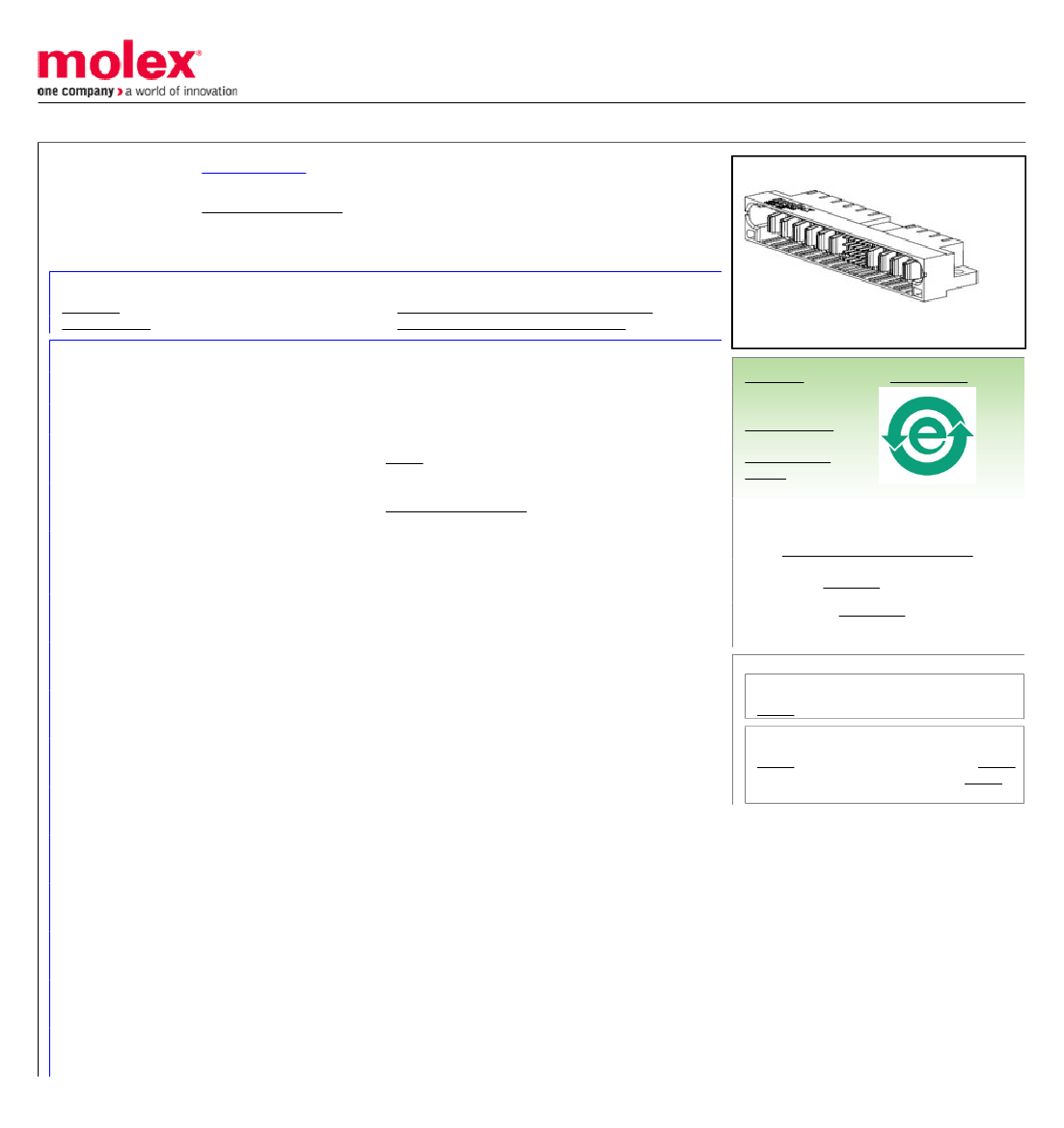

image - Reference only
Series
Agency Certification
CSA
TUV
LR19980
R50078473
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
87631
Board-to-Board
<LI>Short Contacts|<LI> Recessed Signal Pin: C1
extreme_powerplus_ssi
EXTreme PowerPlus™
Physical
Breakaway
Circuits (Loaded)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
No
30
Power Alpha 4, Signal 24, Power Beta 2
Black
100
Yes
94V-0
No
Yes
Yes
Yes
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
4
Right Angle
0.135 In
3.43 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.100 In, 0.250 In
2.54 mm, 6.35 mm
30
0.76
100
2.54
Yes
Yes
Search Parts in this Series
87631Series
Mates With
87633 Vertical Press-Fit Receptacle. 87622
Vertical Through Hole Receptacle. 87632
Right Angle Through Hole Receptacle
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Fully
No
-20°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A, 30A
250V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
SMC & Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-87631-018
PS-87631-006
SD-87631-013
