Part Number:
Status:
Overview:
Description:
0876642000
Active
extreme_powerplus_ssi
6.35mm (.250") and 7.62mm (.300") Pitch Power, 2.54mm (.100") Pitch Signal,
EXTreme PowerPlus™ AC/DC Receptacle, Through Hole, Right Angle,32 Circuits,
Power Beta 5, Signal 24, Power Alpha 3, Recessed Power Circuit Positions A2, A3, B1,
B2, B3, B4, B5, Lea
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87663-006 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
E29179
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
PCB Receptacles
87664
Board-to-Board
Recessed Power Circuit Position: A2, A3, B1, B2, B3,
B4, B5
extreme_powerplus_ssi
987650-3002
EXTreme PowerPlus™
Physical
Circuits (Loaded)
Circuits Detail
Color - Resin
Flammability
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
32
Power Beta 5, Signal 24, Power Alpha 3
Black
94V-0
No
Yes
None
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
4
Right Angle
0.135 In
3.43 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.100 In, 0.250 In, 0.300 In
2.54 mm, 6.35 mm, 7.62 mm
30
0.76
100
2.54
Yes
Yes
No
-20°C to +105°C
Search Parts in this Series
87664Series
Mates With
87663 PCB Header with Beveled Metal Pins
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A, 30A, 50A
250V (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
SMC & Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification

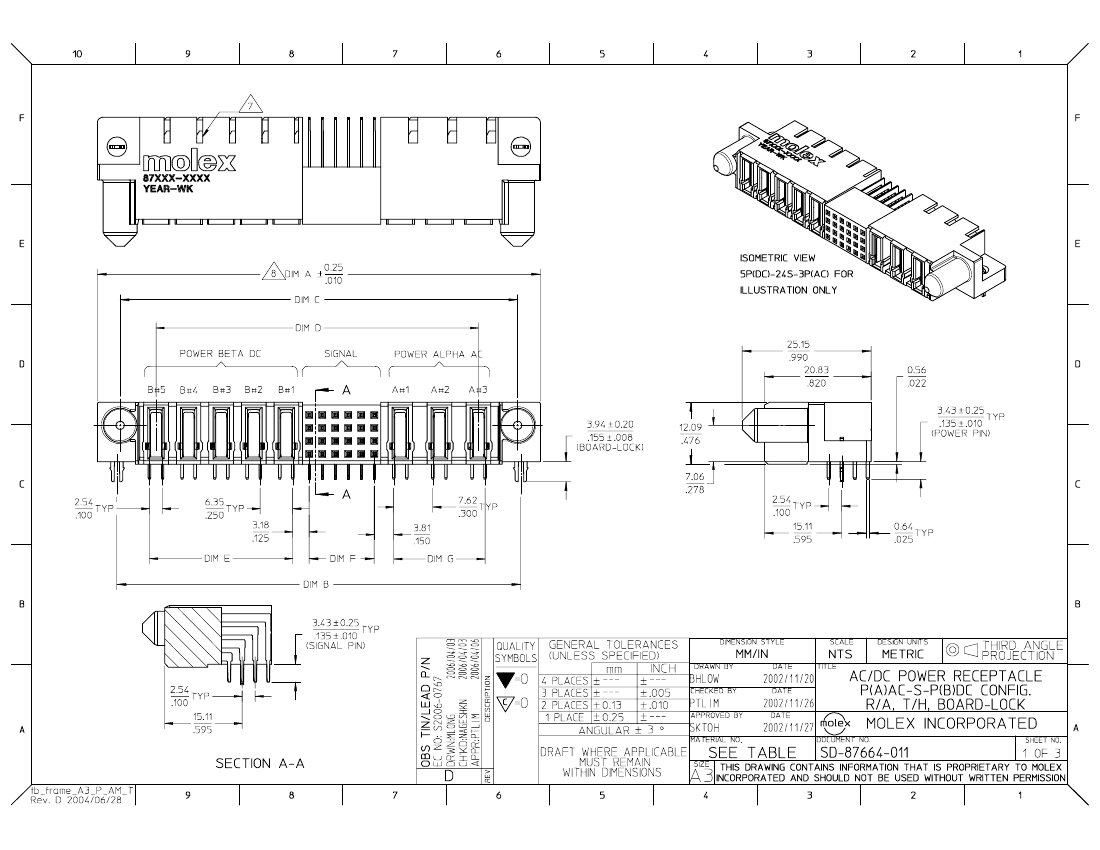

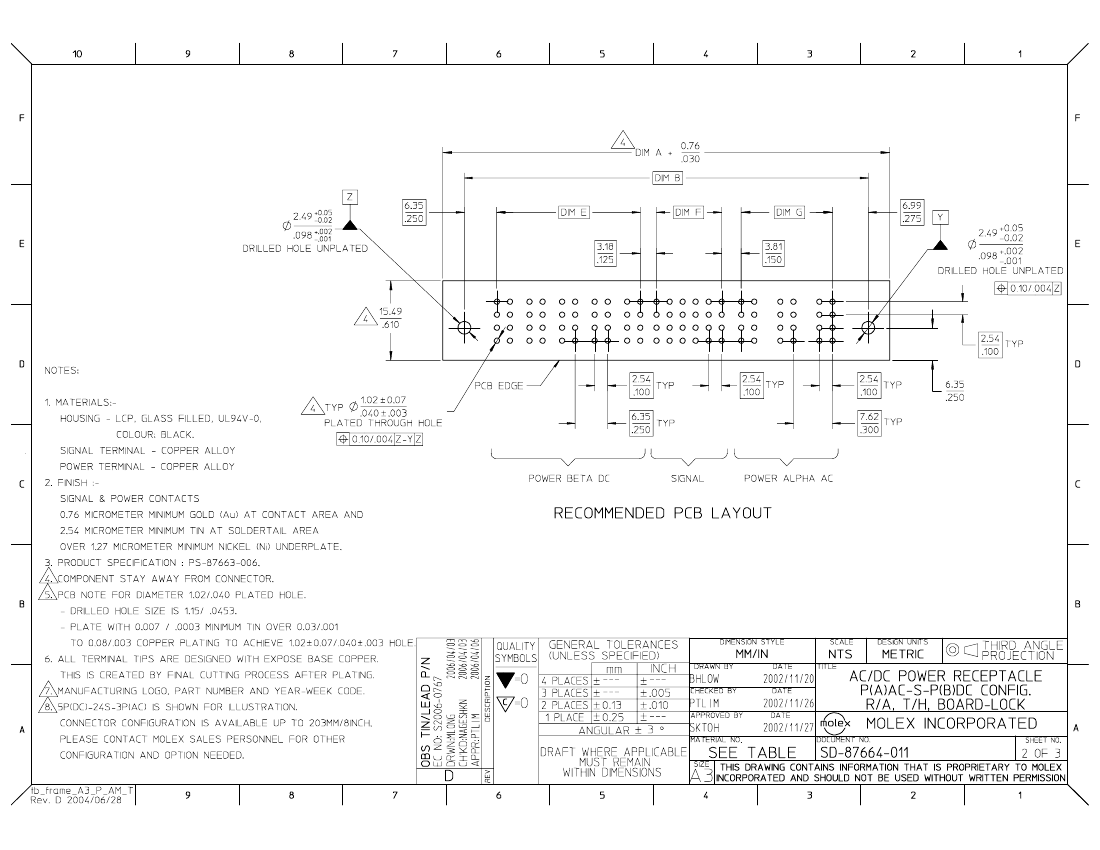

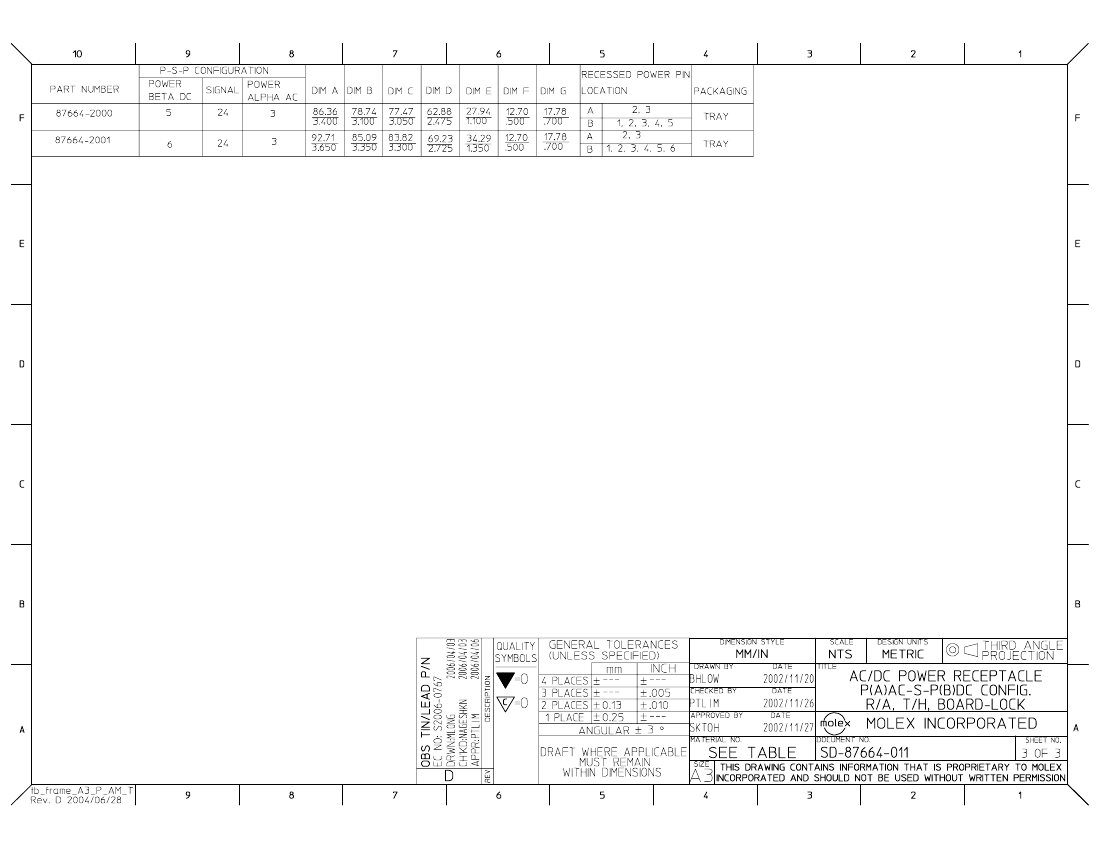

Sales Drawing
AS-87631-018
PS-87663-006
SD-87664-011
