Part Number:
Status:
Description:
0877057453
Active
1.00mm (.039") Pitch DDR-II DIMM 240 Circuits Socket, Vertical, 1.8 Voltage, 3.00mm
(.118") Tail Length, Black Latches, Nylon 4/6 Glass-filled, Black Housing, Gold (Au)
Flash, Beveled Metal Pins Width 3.00mm (.118"), Lead Free
Documents:
3D Model

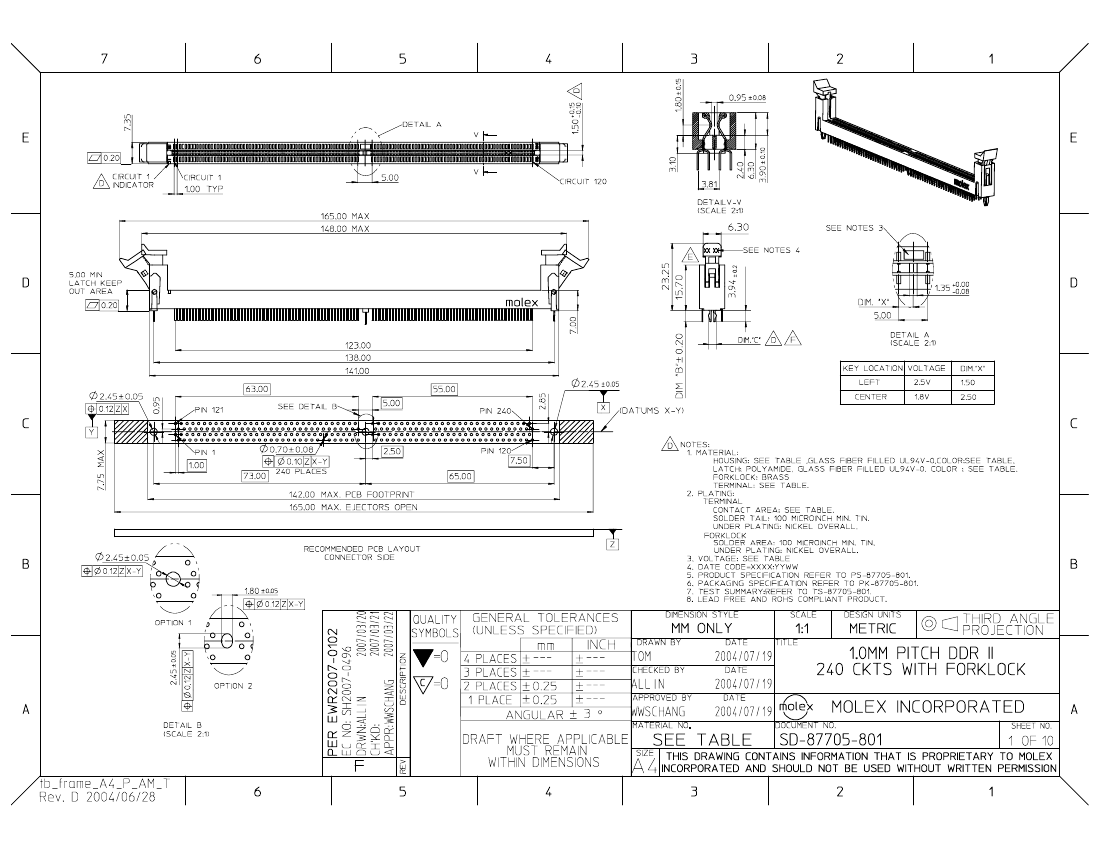

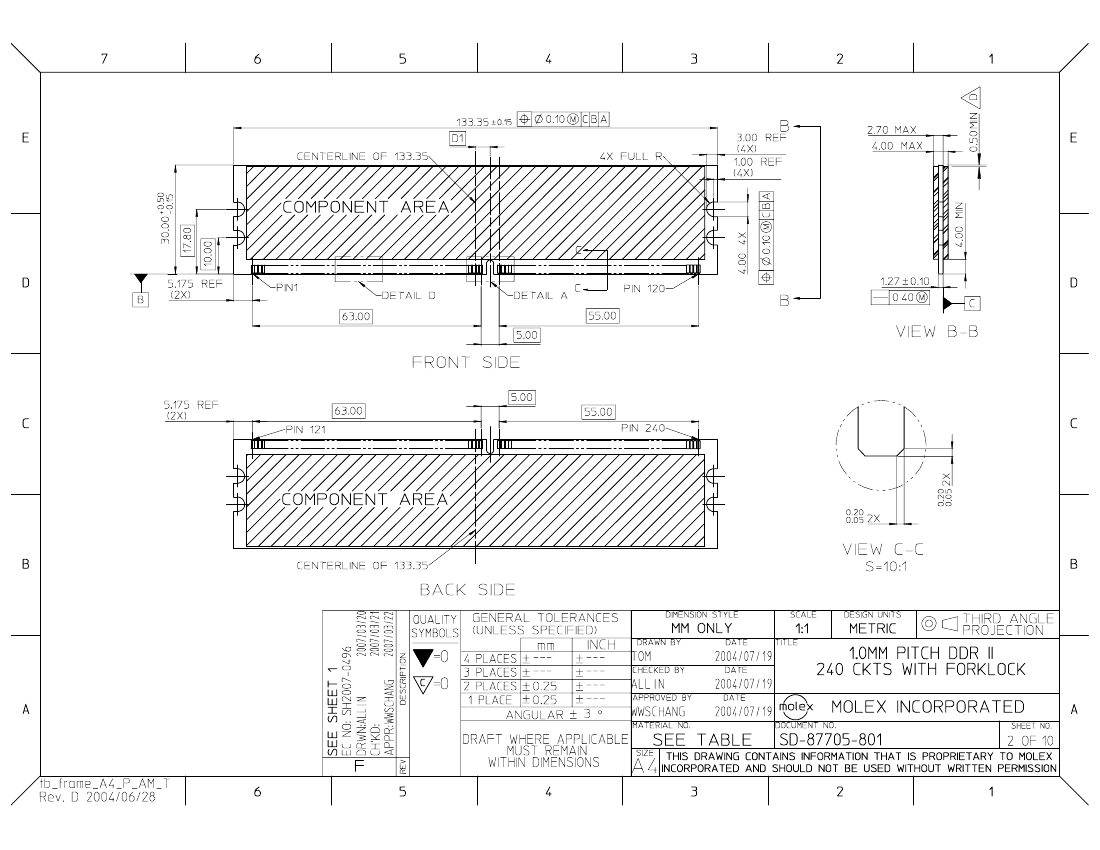

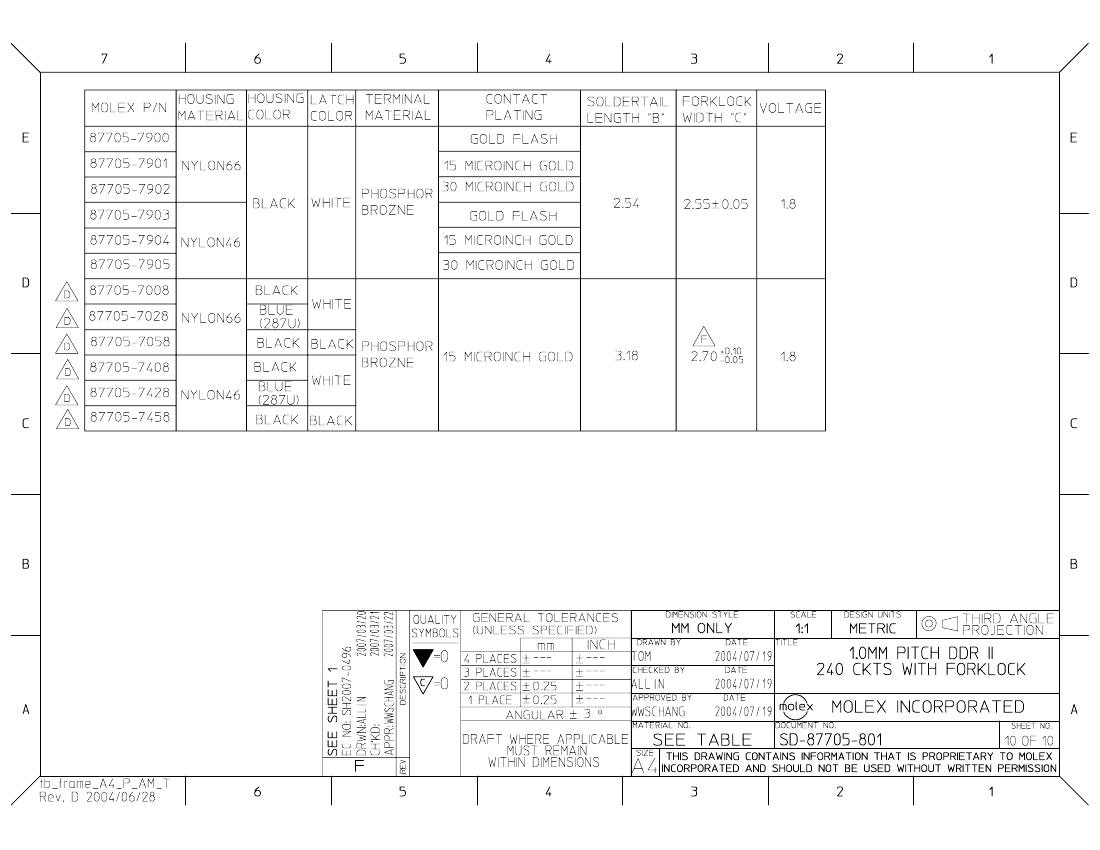

Drawing (PDF)
Product Specification PS-87705-801 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
JEDEC Outline
Product Name
Memory Module Sockets
87705
<LI>Black Latches <LI>Insertion Force: 10Kg (98N)
Max. <LI>Beveled Metal Pin Width: 3.00mm (.118")
Socket
MO-237
DDR2 DIMM
Physical
Circuits (Loaded)
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Temperature Range - Operating
Termination Interface: Style
240
25
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
0.118 In
3.00 mm
Yes
0.093 In
2.40 mm
Tray
0.039 In
1.00 mm
-10°C to +85°C
Through Hole
Search Parts in this Series
87705Series
Mates With
JEDEC standard 1.27mm modules
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
0.5A
30V
1.8V, Center
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
Wave Capable (TH only)
260
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-87705-801
SD-87705-801
