0877583850
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Header, Through Hole, Vertical, 38 Circuits, 0.38µm
(15µ") Gold (Au) Selective Plating, Tray Packaging, Lead-free
Documents:

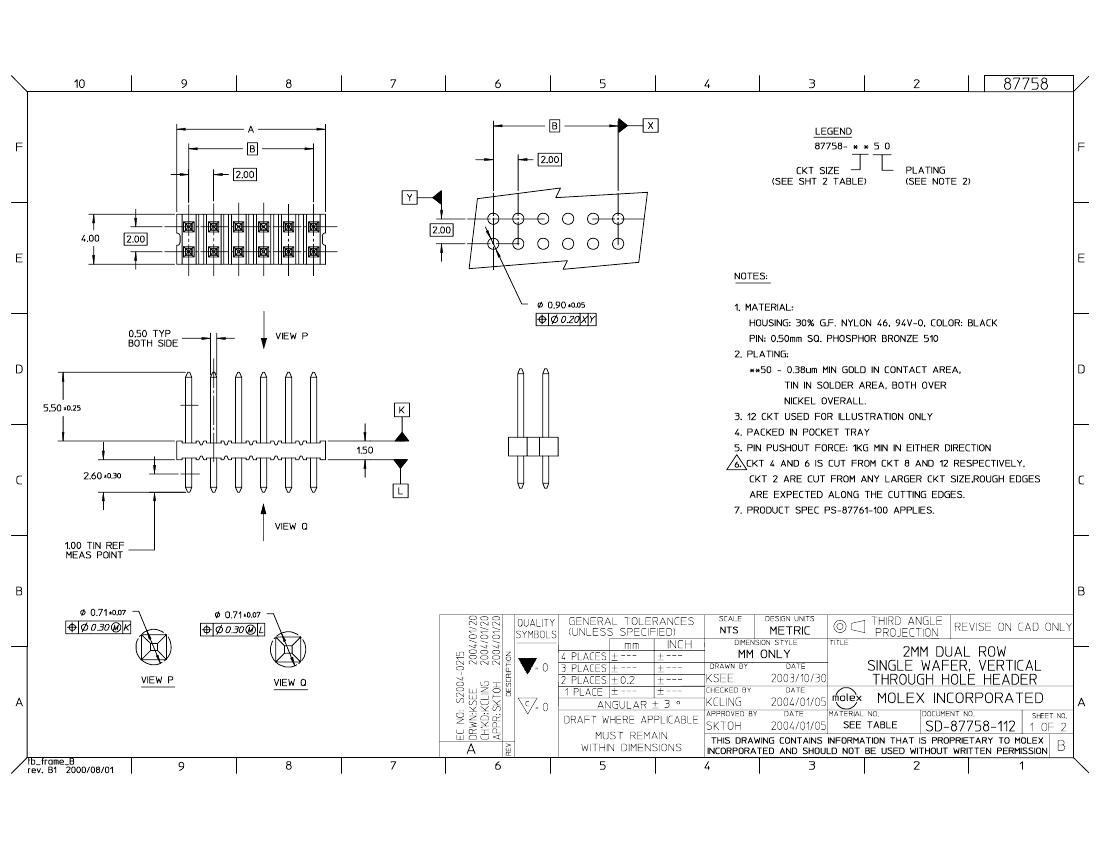

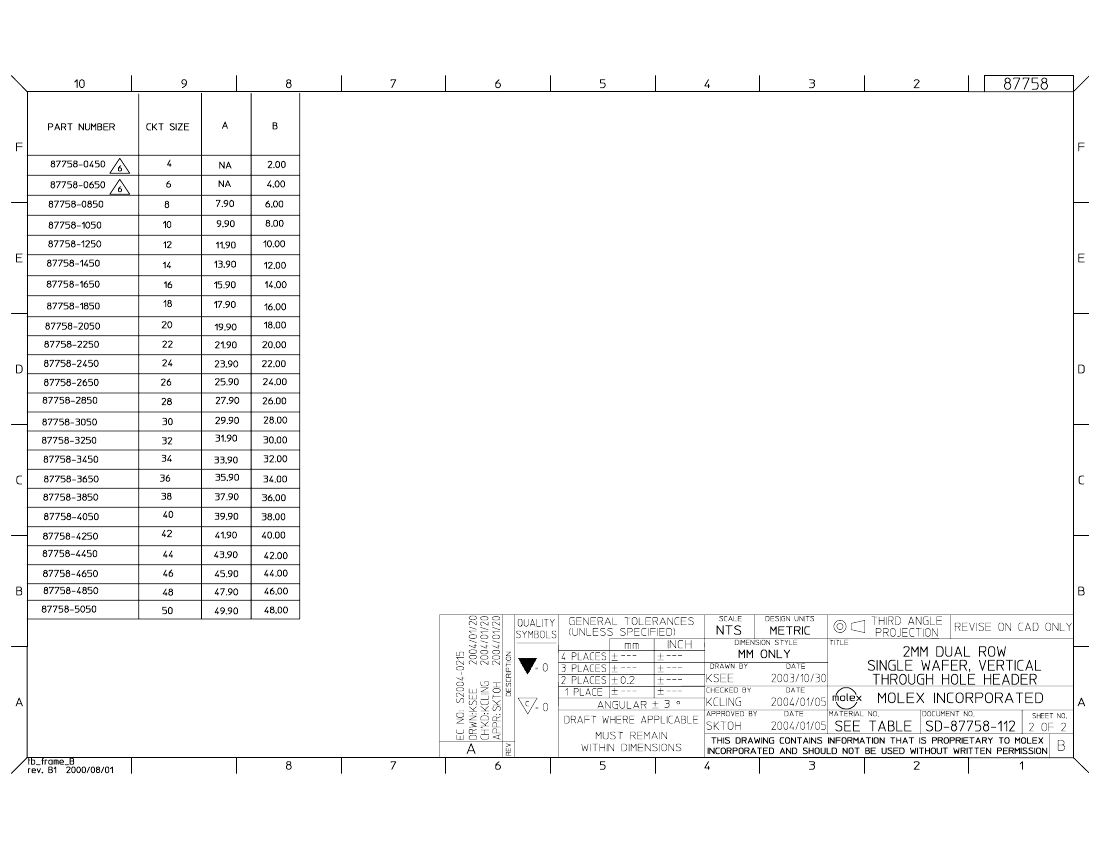

Drawing (PDF)
Product Specification PS-87761-100 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E29179

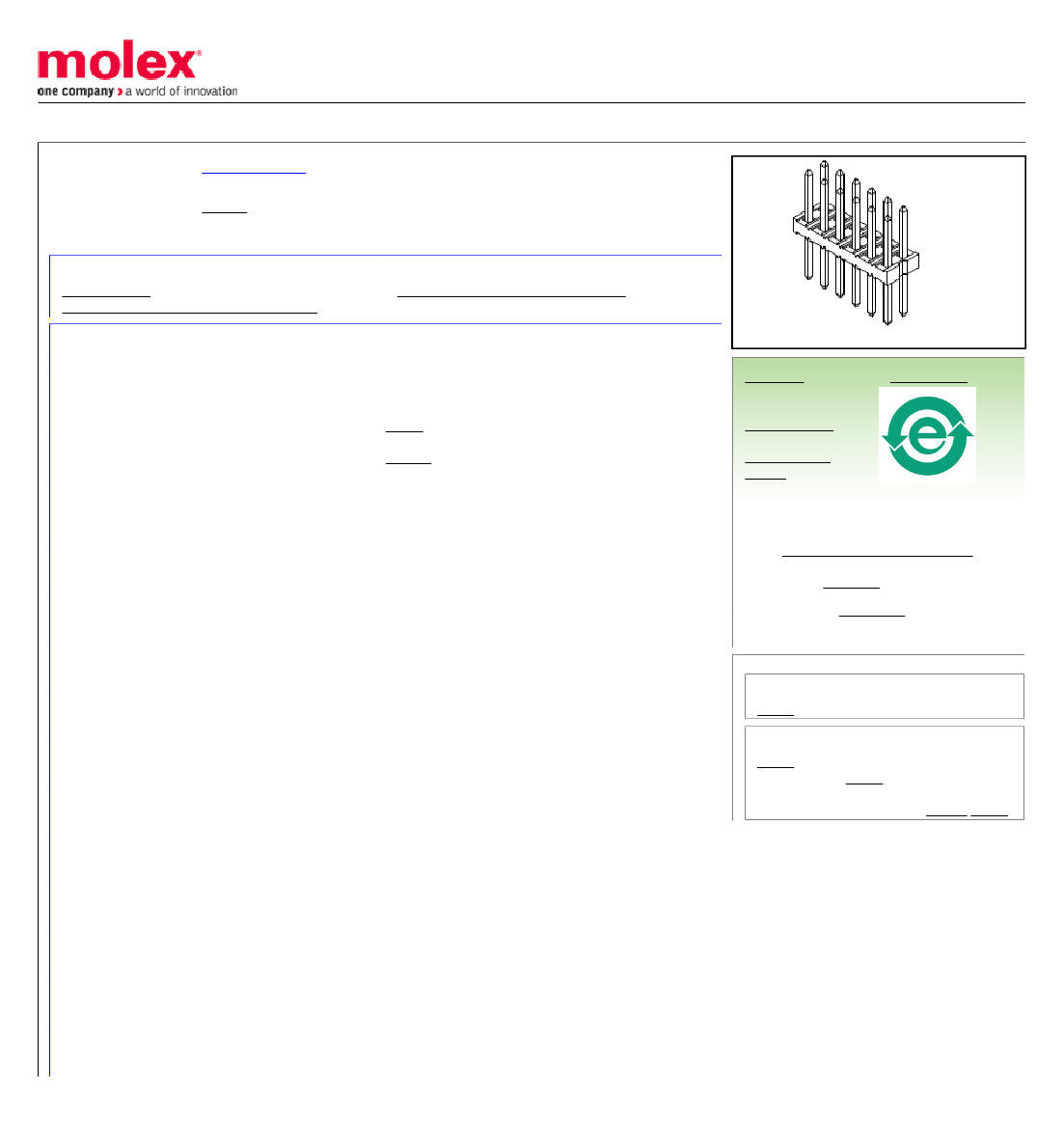

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
87758
Board-to-Board
milligrid
Milli-Grid™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Yes
38
38
Black
100
No
94V-0
No
No
None
None
0.217 In
5.50 mm
Phosphor Bronze
Gold
Tin
Nylon
2
Vertical
0.102 In
2.60 mm
No
None
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
0.079 In
2.00 mm
15
0.38
No
No
No
Search Parts in this Series
87758Series
Mates With
79107 Milli-Grid™ Receptacle, Vertical,
Through Hole. 79108 Milli-Grid™ Flex-to-
Board, Vertical Receptacle. Milli-Grid™
Receptacle, Surface Mount. 79109. 87381
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
Yes
-55°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-87761-100
SD-87758-112
This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
