Part Number

Search

87758-4817

Description
48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size174KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

87758-4817 Overview

48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

87758-4817 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresTRAY PACKAGE
body width0.157 inch
subject depth0.059 inch
body length1.886 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Durability100 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87758
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0

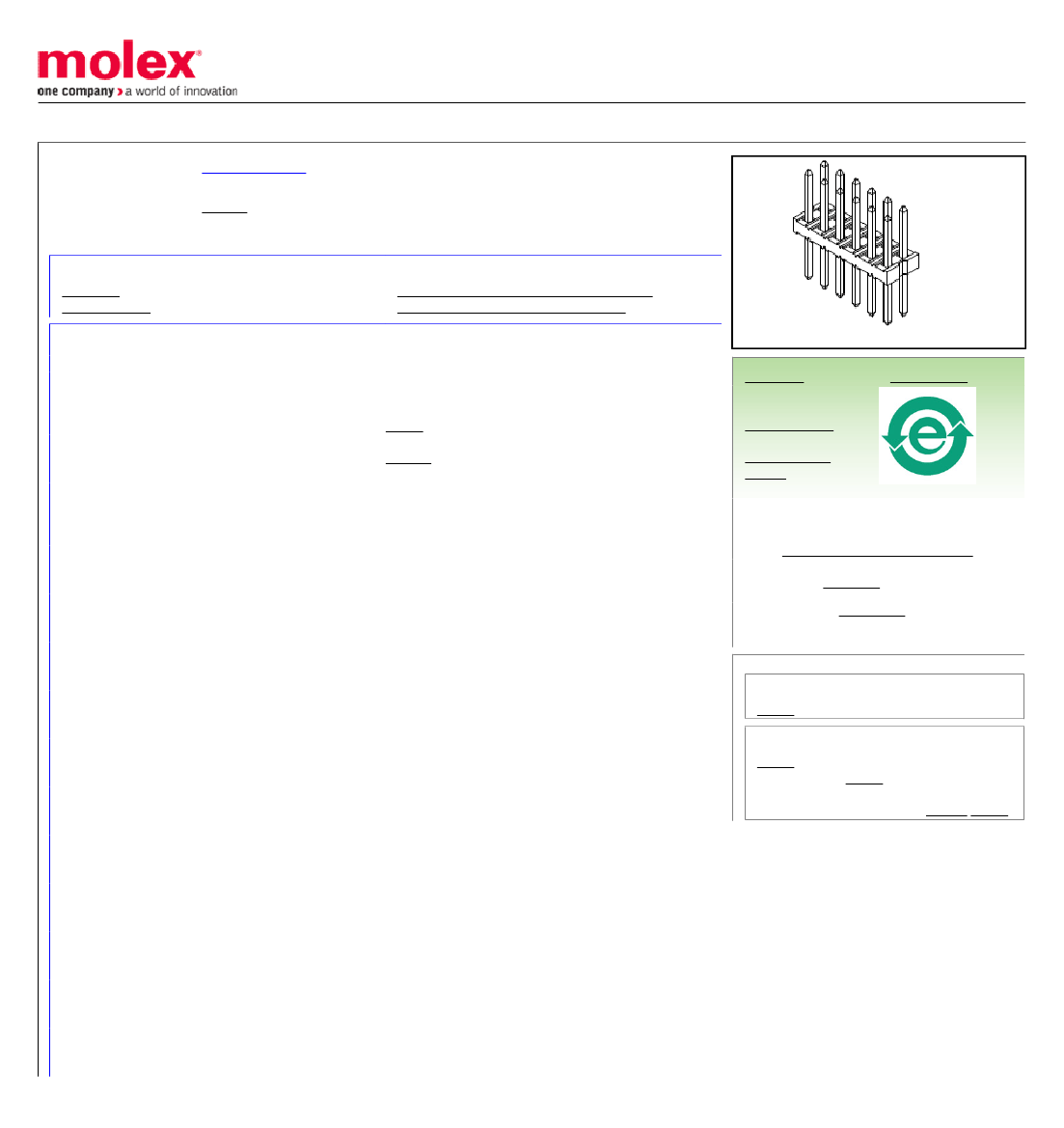

This document was generated on 05/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0877584817
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Header, Through Hole, Vertical, 48 Circuits, 0.76µm
(30µ") Gold (Au) Selective Plating, Pocket Tray Packaging, Lead-free
Documents:
3D Model

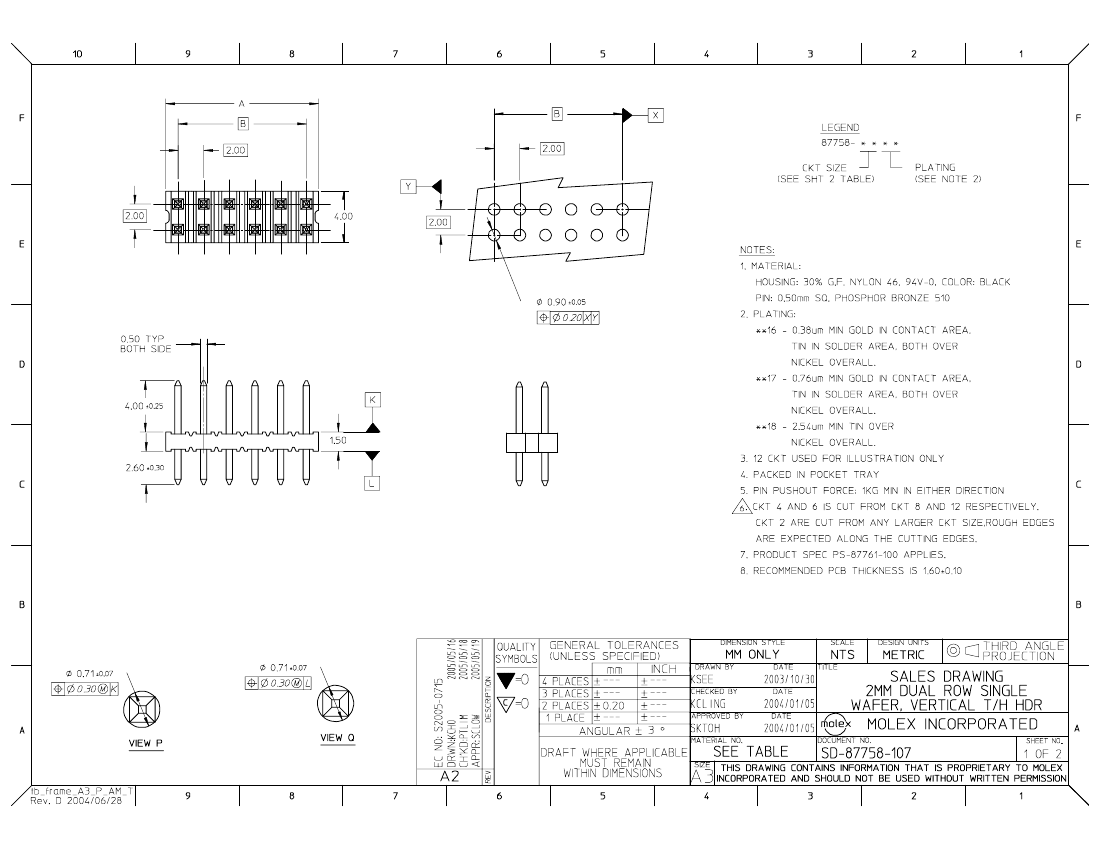

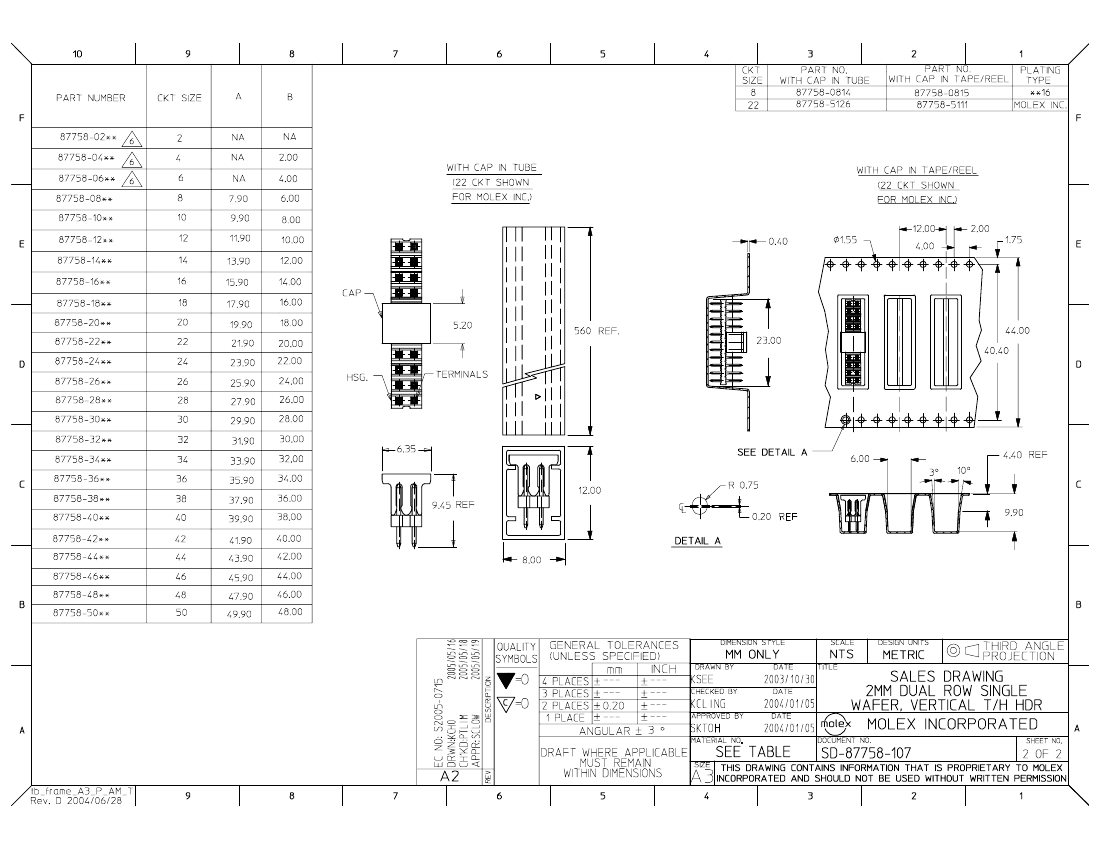

Drawing (PDF)
Product Specification PS-87761-100 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
87758
Board-to-Board
milligrid
Milli-Grid™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Yes
48
48
Black
100
No
94V-0
No
No
None
None
0.157 In
4.00 mm
Phosphor Bronze
Gold
Tin
Nylon
2
Vertical
0.102 In
2.60 mm
No
None
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
0.079 In
2.00 mm
30
0.76
No
No
No
Search Parts in this Series
87758Series
Mates With
79107 Milli-Grid™ Receptacle, Vertical,
Through Hole. 79108 Milli-Grid™ Flex-to-
Board, Vertical Receptacle. Milli-Grid™
Receptacle, Surface Mount. 79109. 87381
