Part Number:
Status:
Description:
0022281122
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 12
Circuits, 0.76µm (30µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
42228
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
12
12
Black
100
94V-0
No
Yes
Brass
Gold
Tin
Nylon
1
Right Angle
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
30
0.75
100
2.5
Yes
No
Partial
No
0°C to +75°C
Through Hole
Search Parts in this Series
42228Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
235
Material Info
Old Part Number
42228-0082
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-10-07
SD-42228-001, SD-42228-002, SD-42228-003
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
A-42228-0002/0036
HEADER NUMBER:
41411
PIN NUMBER:
42663-CKA154
PIN LENGTH: L
.705/17.91
MATING LENGTH: M
.295/7.49
GOLD POINT: G
N/A
PC TAIL LENGTH: P
.120/3.05
TIN: T
OVERALL
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
NO
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-1020 A-42228-0002 20 22-28-1200 A-42228-0020
03 22-28-1030 A-42228-0003 21 22-28-1210 A-42228-0021
04 22-28-1040 A-42228-0004 22 22-28-1220 A-42228-0022
05 22-28-1050 A-42228-0005 23 22-28-1230 A-42228-0023
06 22-28-1060 A-42228-0006 24 22-28-1240 A-42228-0024
07 22-28-1070 A-42228-0007 25 22-28-1250 A-42228-0025
08 22-28-1080 A-42228-0008 26 22-28-1260 A-42228-0026
09 22-28-1090 A-42228-0009 27 22-28-1270 A-42228-0027
10 22-28-1100 A-42228-0010 28 22-28-1280 A-42227-0028
11 22-28-1110 A-42228-0011 29 22-28-1290 A-42228-0029
12 22-28-1120 A-42228-0012 30 22-28-1300 A-42228-0030
13 22-28-1130 A-42228-0013 31 22-28-1310 A-42228-0031
14 22-28-1140 A-42228-0014 32 22-28-1320 A-42228-0032
15 22-28-1150 A-42228-0015 33 22-28-1330 A-42228-0033
16 22-28-1160 A-42228-0016 34 22-28-1340 A-42228-0034
17 22-28-1170 A-42228-0017 35 22-28-1350 A-42228-0035
18 22-28-1180 A-42228-0018 36 22-28-1360 A-42228-0036
19 22-28-1190 A-42228-0019
REV:
TITLE:
A-42228-0037/0071
HEADER NUMBER:
41411
PIN NUMBER:
42663-CKB208
PIN LENGTH: L
.705/17.91
MATING LENGTH: M
.295/7.49
GOLD POINT: G
.140/3.56
PC TAIL LENGTH: P
.120/3.05
TIN: T
.135/3.43
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
NO
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02
22-28-1021 A-42228-0037 20 22-28-1201 A-42228-0055
03
22-28-1031 A-42228-0038 21 22-28-1211 A-42228-0056
04
22-28-1041 A-42228-0039 22 22-28-1221 A-42228-0057
05
22-28-1051 A-42228-0040 23 22-28-1231 A-42228-0058
06
22-28-1061 A-42228-0041 24 22-28-1241 A-42228-0059
07
22-28-1071 A-42228-0042 25 22-28-1251 A-42228-0060
08
22-28-1081 A-42228-0043 26 22-28-1261 A-42228-0061
09
22-28-1091 A-42228-0044 27 22-28-1271 A-42228-0062
10
22-28-1101 A-42228-0045 28 22-28-1281 A-42228-0063
11
22-28-1111 A-42228-0046 29 22-28-1291 A-42228-0064
12
22-28-1121 A-42228-0047 30 22-28-1301 A-42228-0065
13
22-28-1131 A-42228-0048 31 22-28-1311 A-42228-0066
14
22-28-1141 A-42228-0049 32 22-28-1321 A-42228-0067
15
22-28-1151 A-42228-0050 33 22-28-1331 A-42228-0068
16
22-28-1161 A-42228-0051 34 22-28-1341 A-42228-0069
17
22-28-1171 A-42228-0052 35 22-28-1351 A-42228-0070
18
22-28-1181 A-42228-0053 36 22-28-1361 A-42228-0071
19
22-28-1191 A-42228-0054
SHEET No.
L
DOCUMENT NUMBER:

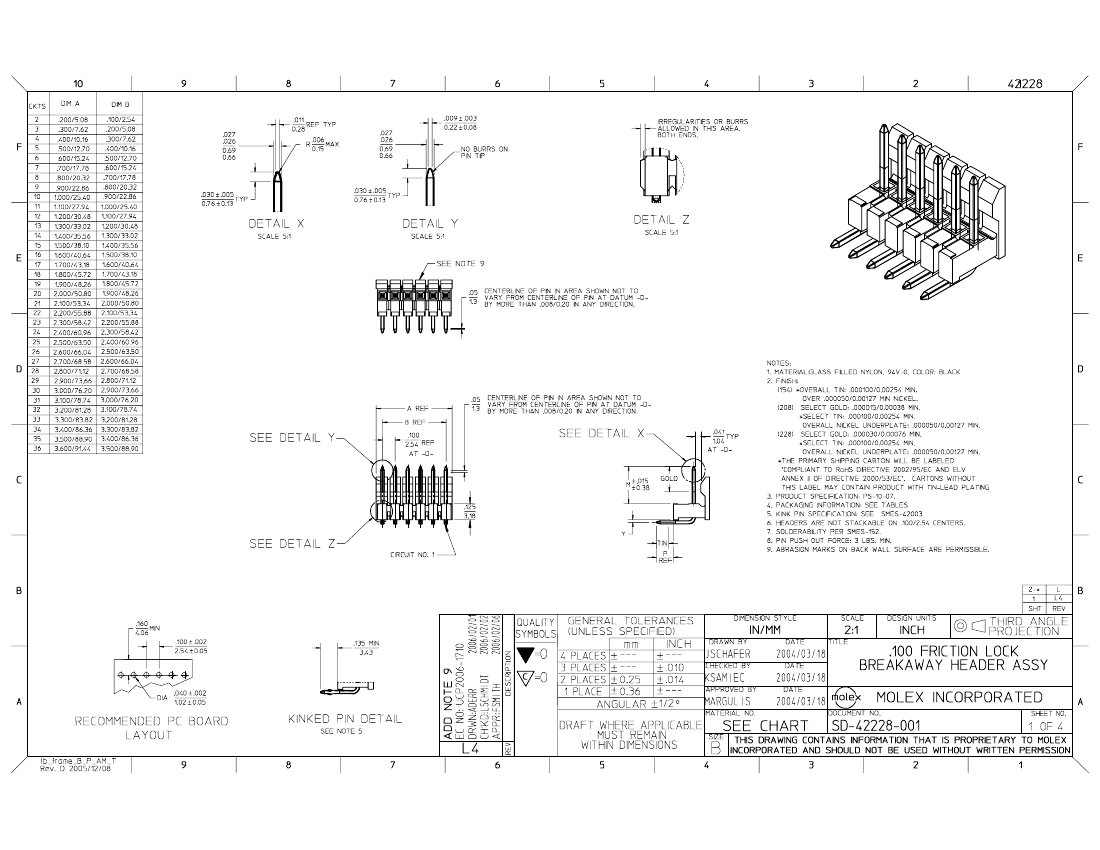

.100 FRICTION LOCK
BREAKAWAY HEADER ASSY.
CREATED / REVISED BY:
CHECKED BY:
-2-
APPROVED BY:
SD- 42228 -001
S. LINEHAN 03/04/2004
K.SAMIEC 03/04/2004
Y. MARGULIS 03/04/2004
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
A-42228-0072/0106
HEADER NUMBER:
41411
PIN NUMBER:
42663-CKB228
PIN LENGTH: L
.705/17.91
MATING LENGTH: M
.295/7.49
GOLD POINT: G
.140/3.56
PC TAIL LENGTH: P
.120/3.05
TIN: T
.135/3.43
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
NO
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-1022 A-42228-0072 20 22-28-1202 A-42228-0090
03 22-28-1032 A-42228-0073 21 22-28-1212 A-42228-0091
04 22-28-1042 A-42228-0074 22 22-28-1222 A-42228-0092
05 22-28-1052 A-42228-0075 23 22-28-1232 A-42228-0093
06 22-28-1062 A-42228-0076 24 22-28-1242 A-42228-0094
07 22-28-1072 A-42228-0077 25 22-28-1252 A-42228-0095
08 22-28-1082 A-42228-0078 26 22-28-1262 A-42228-0096
09 22-28-1092 A-42228-0079 27 22-28-1272 A-42228-0097
10 22-28-1102 A-42228-0080 28 22-28-1282 A-42228-0098
11 22-28-1112 A-42228-0081 29 22-28-1292 A-42228-0099
12 22-28-1122 A-42228-0082 30 22-28-1302 A-42228-0100
13 22-28-1132 A-42228-0083 31 22-28-1312 A-42228-0101
14 22-28-1142 A-42228-0084 32 22-28-1322 A-42228-0102
15 22-28-1152 A-42228-0085 33 22-28-1332 A-42228-0103
16 22-28-1162 A-42228-0086 34 22-28-1342 A-42228-0104
17 22-28-1172 A-42228-0087 35 22-28-1352 A-42228-0105
18 22-28-1182 A-42228-0088 36 22-28-1362 A-42228-0106
19 22-28-1192 A-42228-0089
REV:
TITLE:
A-42228-0107/0141
HEADER NUMBER:
41411
PIN NUMBER:
42663-CNA154
PIN LENGTH: L
.720/18.29
MATING LENGTH: M
.295/7.49
GOLD POINT: G
N/A
PC TAIL LENGTH: P
.135/3.43
TIN: T
OVERALL
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
YES ES-42003
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02
22-28-1023 A-42228-0107 20 22-28-1203 A-42228-0125
03
22-28-1033 A-42228-0108 21 22-28-1213 A-42228-0126
04
22-28-1043 A-42228-0109 22 22-28-1223 A-42228-0127
05
22-28-1053 A-42228-0110 23 22-28-2233 A-42228-0128
06
22-28-1063 A-42228-0111 24 22-28-1243 A-42228-0129
07
22-28-1073 A-42228-0112 25 22-28-1253 A-42228-0130
08
22-28-1083 A-42228-0113 26 22-28-1263 A-42228-0131
09
22-28-1093 A-42228-0114 27 22-28-1273 A-42228-0132
10
22-28-1103 A-42228-0115 28 22-28-1283 A-42228-0133
11
22-28-1113 A-42228-0116 29 22-28-1293 A-42228-0134
12
22-28-1123 A-42228-0117 30 22-28-1303 A-42228-0135
13
22-28-1133 A-42228-0118 31 22-28-1313 A-42228-0136
14
22-28-1143 A-42228-0119 32 22-28-1323 A-42228-0137
15
22-28-1153 A-42228-0120 33 22-28-1333 A-42228-0138
16
22-28-1163 A-42228-0121 34 22-28-1343 A-42228-0139
17
22-28-1173 A-42228-0122 35 22-28-1353 A-42228-0140
18
22-28-1183 A-42228-0123 36 22-28-1363 A-42228-0141
19
22-28-1193 A-42228-0124
SHEET No.
L
DOCUMENT NUMBER:
.100 FRICTION LOCK
BREAKAWAY HEADER ASSY.
CREATED / REVISED BY:
CHECKED BY:
-3-
APPROVED BY:
SD- 42228 -001
S. LINEHAN 03/04/2004
K.SAMIEC 03/04/2004
Y. MARGULIS 03/04/2004
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
