A-70400-3046: Description13 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; Categorysemiconductor Other integrated circuit (IC); File Size165KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-70400-3046 Overview

13 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

Preview

Download Datasheet

View All

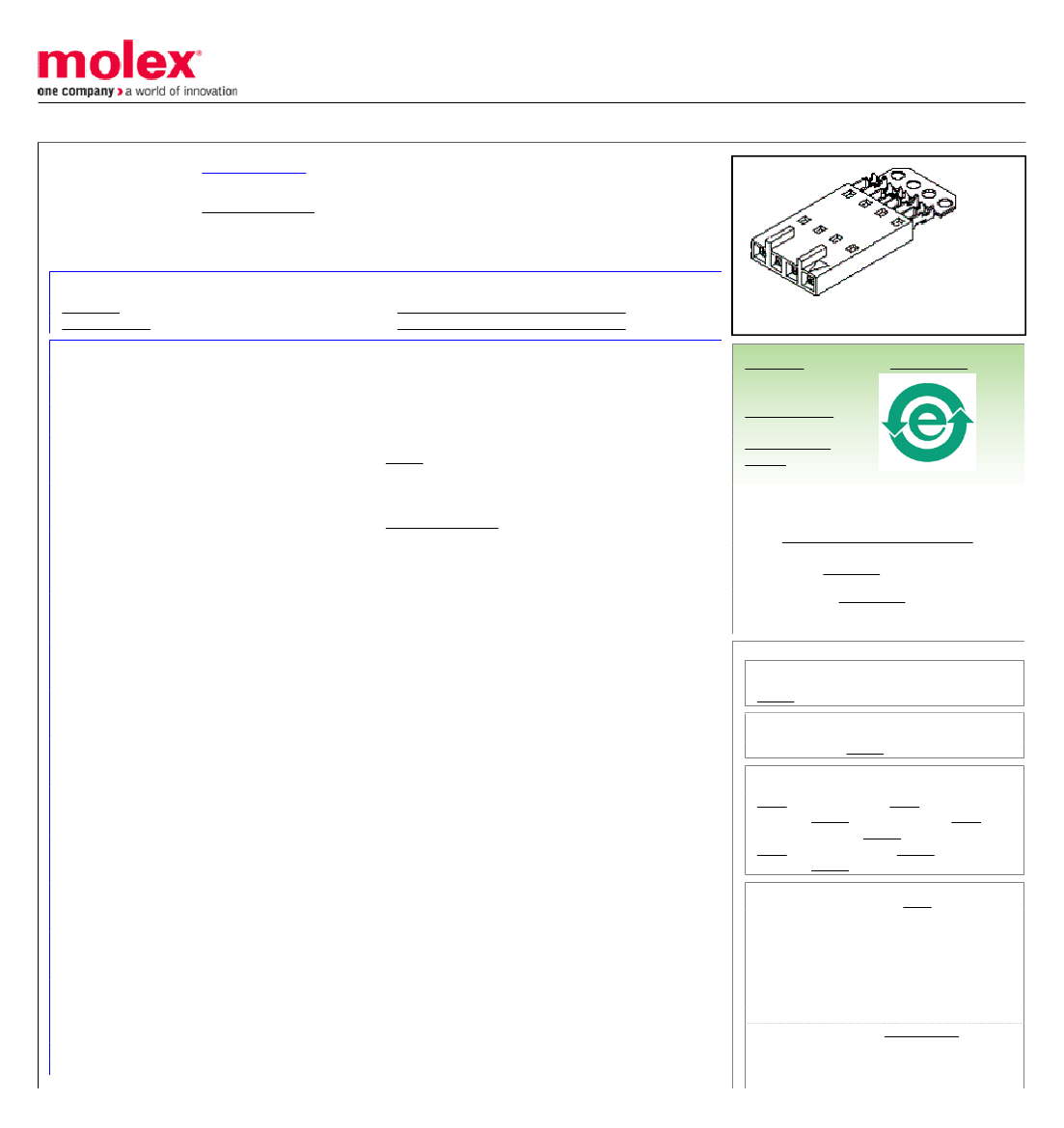

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014567130

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version C, Front Ribs, Wire Size 22, 3.81µm (150µ") Tin/Lead (SnPb), 13

Circuits

Documents:

3D Model

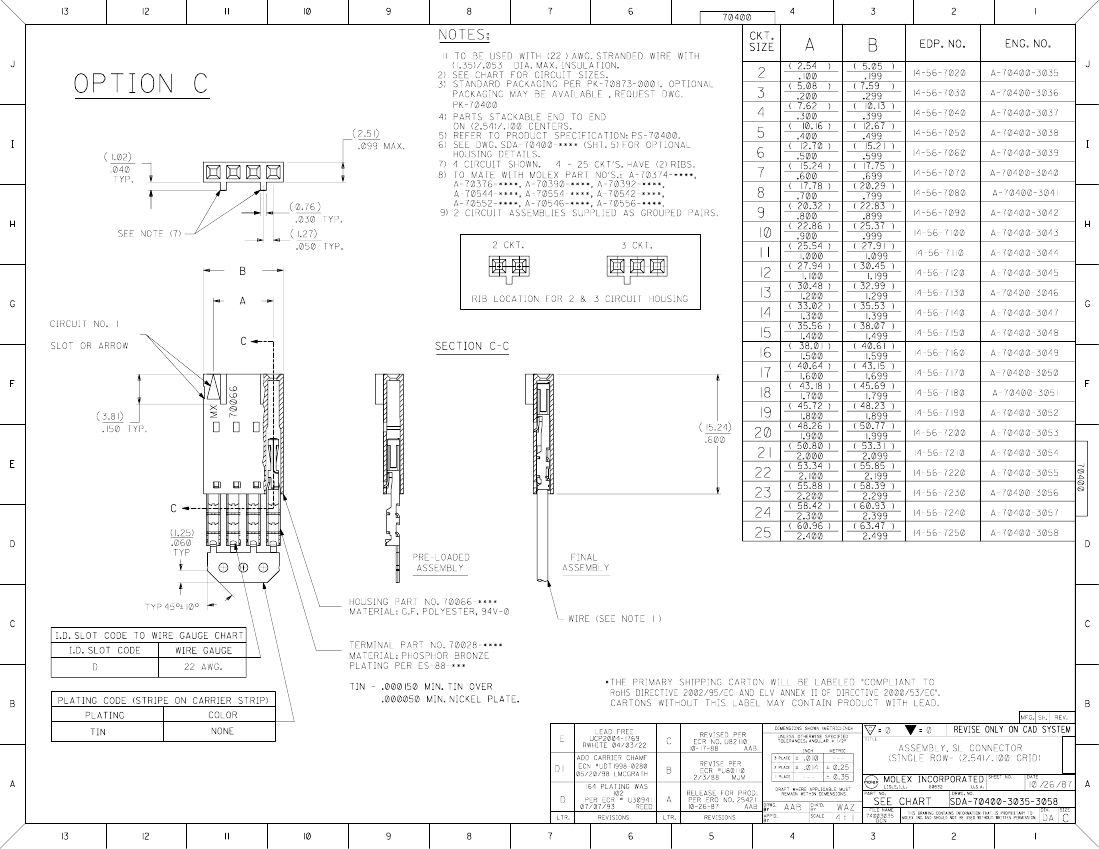

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

150

3.75

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Search Parts in this Series

70400Series

Mates With

70544, 70546, 70554 , 70556

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hawk Semi-

0011201337

Automatice Discrete

Wire Terminator for

SL - Rebuilt US*

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

A-70400-3046 Related Products

	A-70400-3046	14-56-7130	0014567140
Description	13 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	13 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	2.54mm (.100") pitch SL? insulation displacement connector assembly, female, single row, version C, front ribs, wire size 22, 3.81??m (150??") tin/lead (snpb)
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Reach Compliance Code	-	unknow	unknown
Other features	-	STACKABLE	POLARIZED
Connector type	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	-	SN-PB ON NI	TIN
Contact completed and terminated	-	GOLD	Tin (Sn)
Contact point gender	-	FEMALE	FEMALE
Contact material	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	-	NO	NO
Filter function	-	NO	NO
IEC compliance	-	NO	NO
MIL compliance	-	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO
Installation type	-	CABLE	CABLE
Number of rows loaded	-	1	1
Options	-	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	-	IDC	IDC
Total number of contacts	-	13	14
UL Flammability Code	-	94V-0	94V-0
Base Number Matches	-	1	1
