0190160042
Active
Krimptite™ Quick Disconnect, Female, for 14-16 (2.00-1.30) Wire, Mylar Tape, Tab
4.75mm (.187") x 0.51mm (.020")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
image - Reference only
Series
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19016
Butted Seam
Yes
Krimptite™
Quick Disconnect
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed
Female
No
None
None
Brass
Tin
Tin
Straight
Adhesive Tape on Reel
100
2.5
100
2.5
No
0.51mm (.020")
4.75mm (.187")
Per Wire Specification
Crimp or Compression
14, 16
1.30 - 2.00
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19016Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
ATP Perishable
0190270071
Tool Kit used in ATP
presses that process
product on tape
Electrical
Voltage - Maximum
Per Wire Specification
Material Info
Old Part Number
BB-1138T
Reference - Drawing Numbers

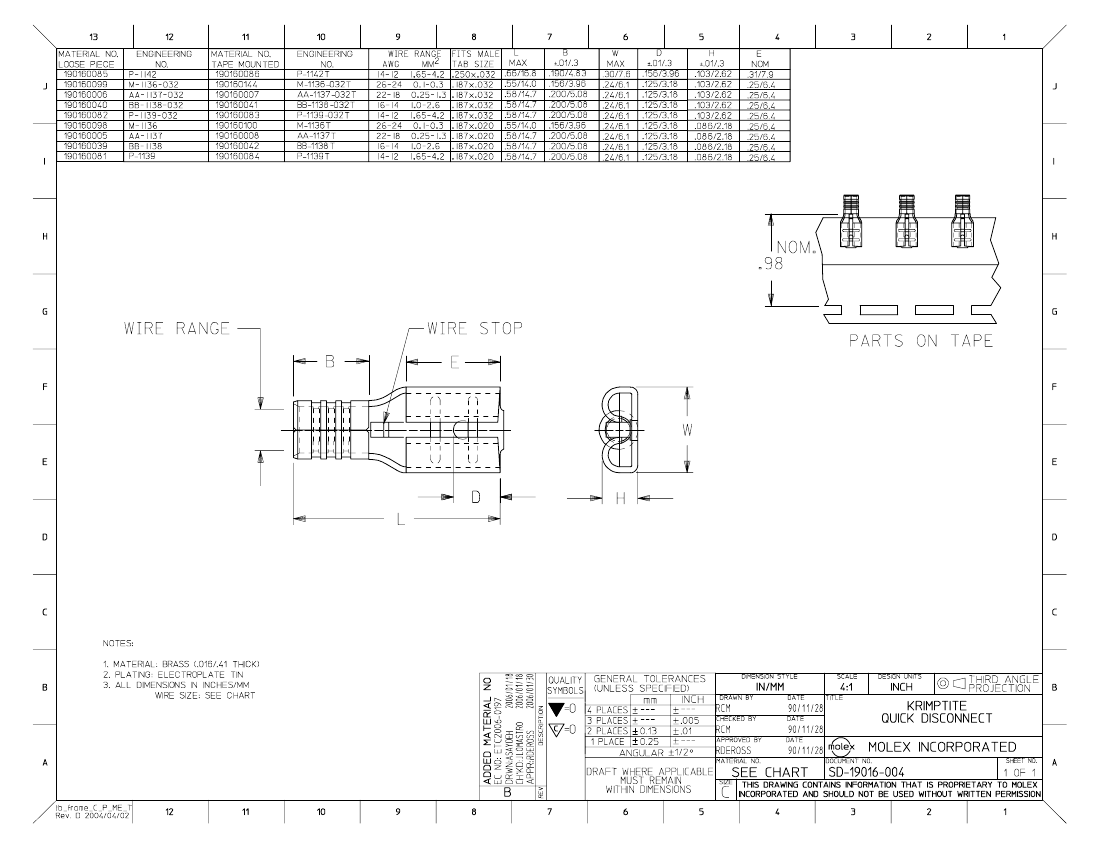

Sales Drawing
SD-19016-004
