BB-223-02XT

Description
RING INSULKRIMP TAPED (BB-223-02XT)
CategoryThe connector    terminals
File Size125KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

BB-223-02XT Overview

RING INSULKRIMP TAPED (BB-223-02XT)

BB-223-02XT Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Factory Lead Time5 weeks
terminal genderFEMALE
Terminal and terminal strip typesRING TERMINAL
Conductor cross section2 mm2
Wire gauge14 AWG

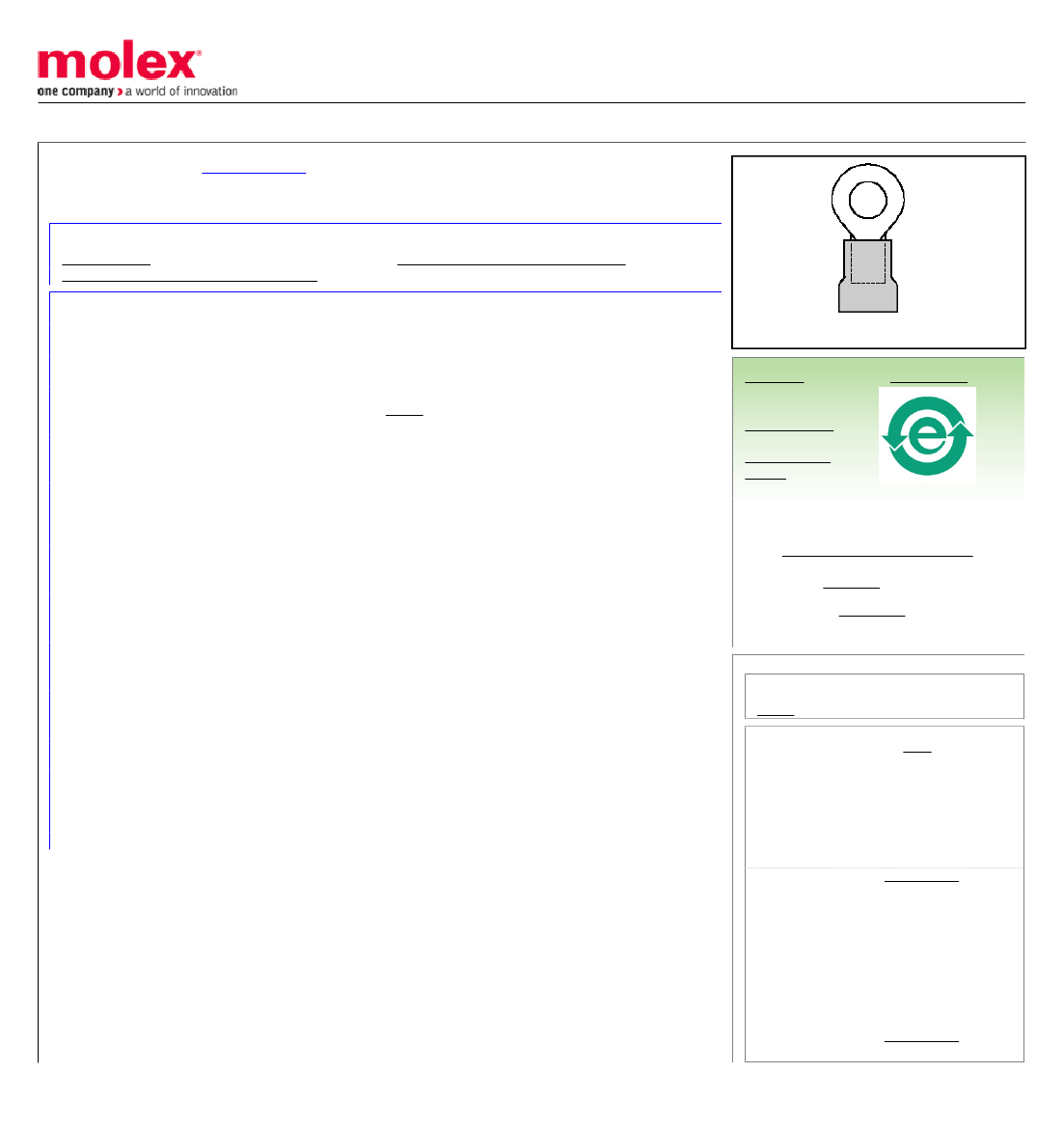

This document was generated on 03/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190700066
Active
RING INSULKRIMP TAPED (BB-223-02XT)
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19070
Yes
N/A
InsulKrimp™
Ring
Physical
Barrel Type
Color - Resin
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
PVC
Tin
Adhesive Tape on Reel
160
4
160
4
1-2 (M2)
4.40mm (.175") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19070Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Dies for
0192880123
MTA-100 Tape
Applicator used in
3BF Press, MTA-105
Tape Applicator used
in TM-2000™ Press,
and ATP-301 Air
Crimping Press for
Mylar Tape Mounted
Terminals
Mini-Mac™
0638850400
Applicator
Material Info
Old Part Number
BB-223-02XT
Reference - Drawing Numbers
Product Specification

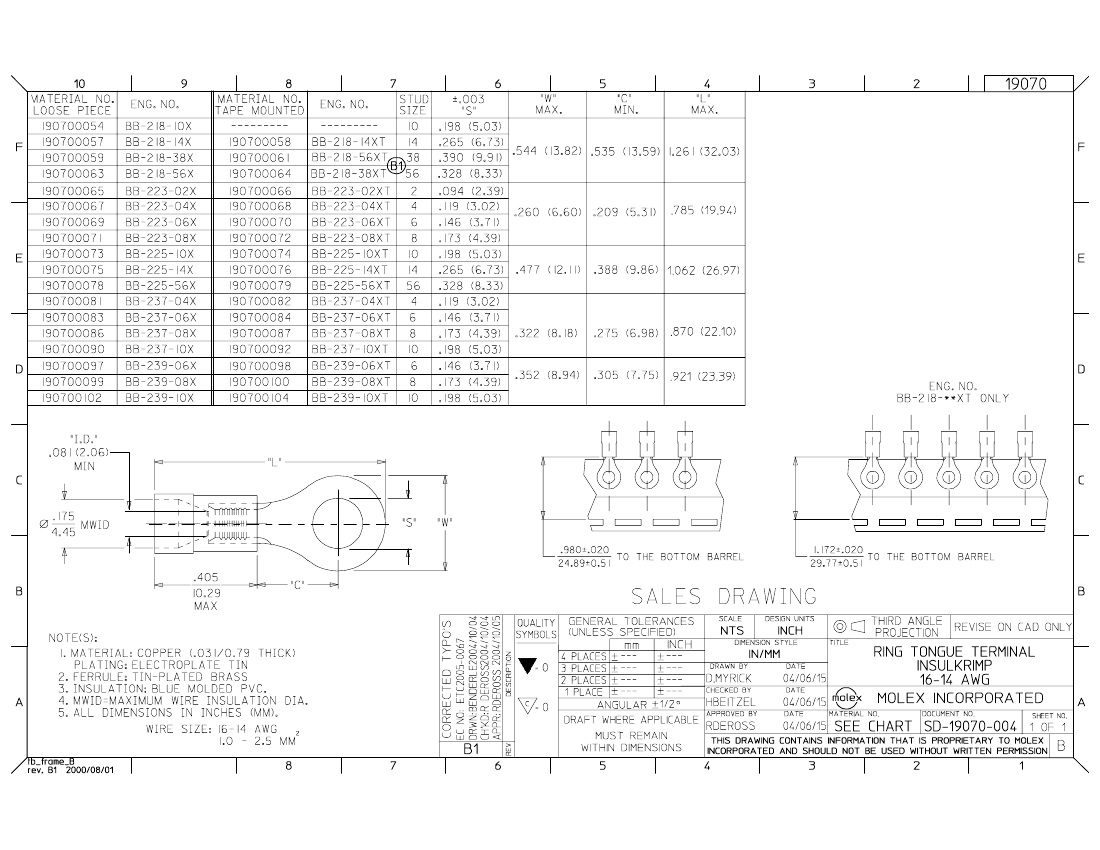

Sales Drawing
PS-19902-009
SD-19070-004

BB-223-02XT Related Products

BB-223-02XT 190700066
Description RING INSULKRIMP TAPED (BB-223-02XT) RING INSULKRIMP TAPED (BB-223-02XT)
Maker Molex Molex
Reach Compliance Code unknow compliant
ECCN code EAR99 EAR99
Terminal and terminal strip types RING TERMINAL RING TERMINAL
Conductor cross section 2 mm2 2.5 mm2
Wire gauge 14 AWG 14 AWG
