Part Number

Search

BB-227-08X

Description
InsulKrimp™ Spade Tongue Terminal for 14-16 AWG Wire
CategoryThe connector    terminals
File Size140KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

BB-227-08X Overview

InsulKrimp™ Spade Tongue Terminal for 14-16 AWG Wire

BB-227-08X Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesWIRE TERMINAL
Conductor cross section2 mm2
Wire gauge14 AWG

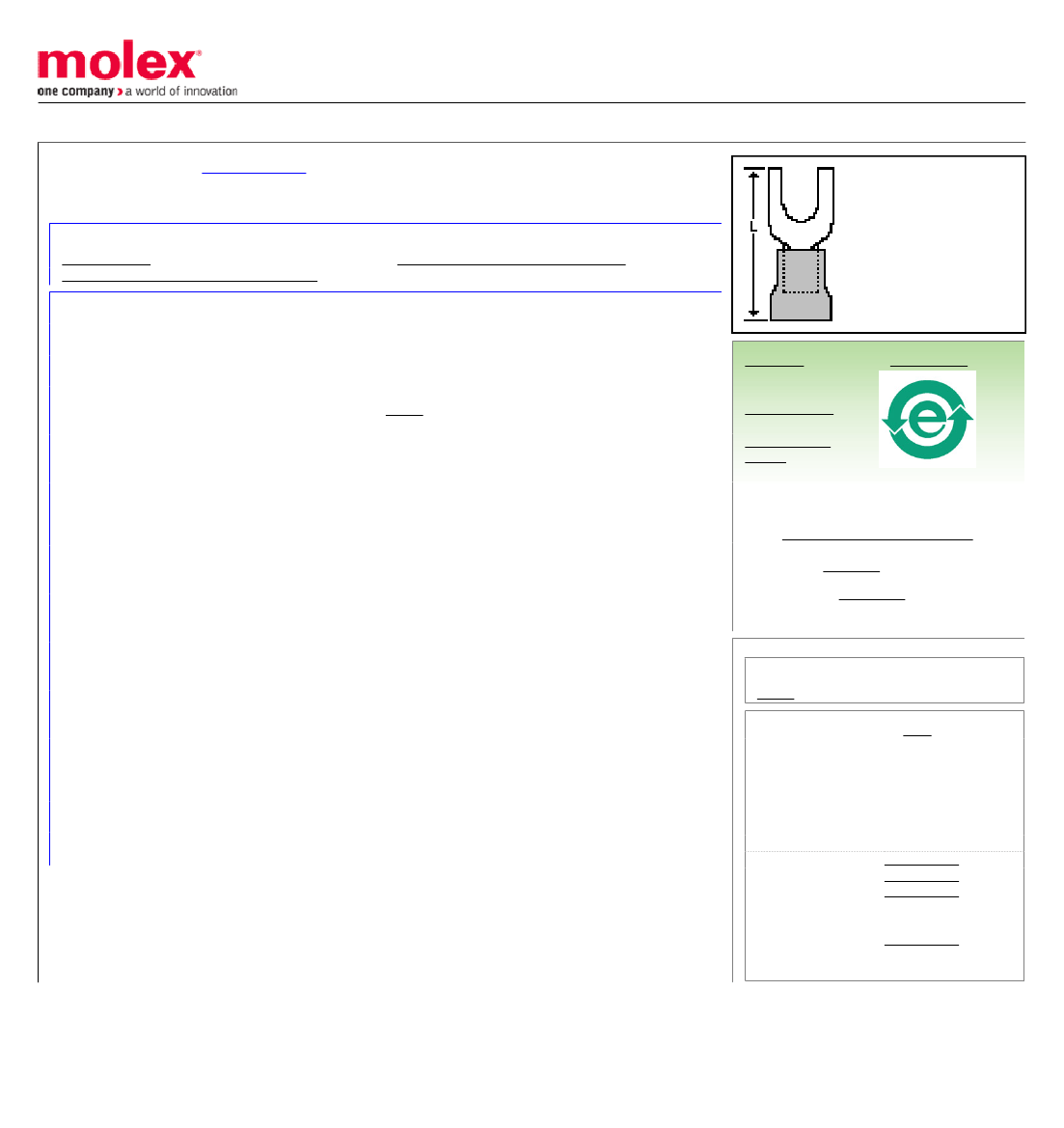

This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0191440024
Active
InsulKrimp™ Spade Tongue Terminal for 14-16 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19144
Yes
N/A
InsulKrimp™
Spade
Physical
Barrel Type
Color - Resin
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
PVC
Tin
Bag
100
2.5
100
2.5
8 (M4)
Crimp or Compression
4.40mm (.175") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19144Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640010300
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640050300
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
BB-227-08X
Reference - Drawing Numbers
Product Specification

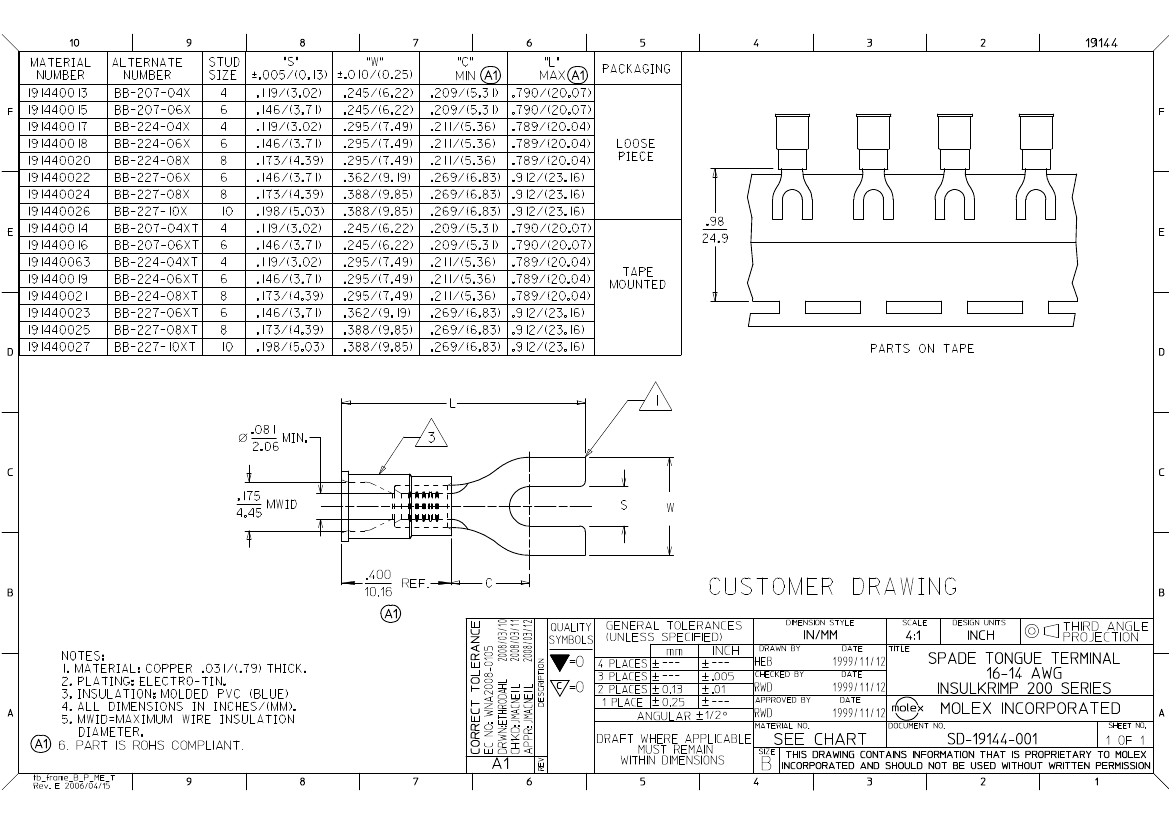

Sales Drawing
PS-19902-009
SD-19144-001
This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
