0345661503
Active
mx123_sealed_connection_systems
2.54mm (.100") Pitch, MX123 Female Receptacle Housing, Keying Option C, Wire
Dress Option 9, 73 Circuits, Blue TPA
Documents:

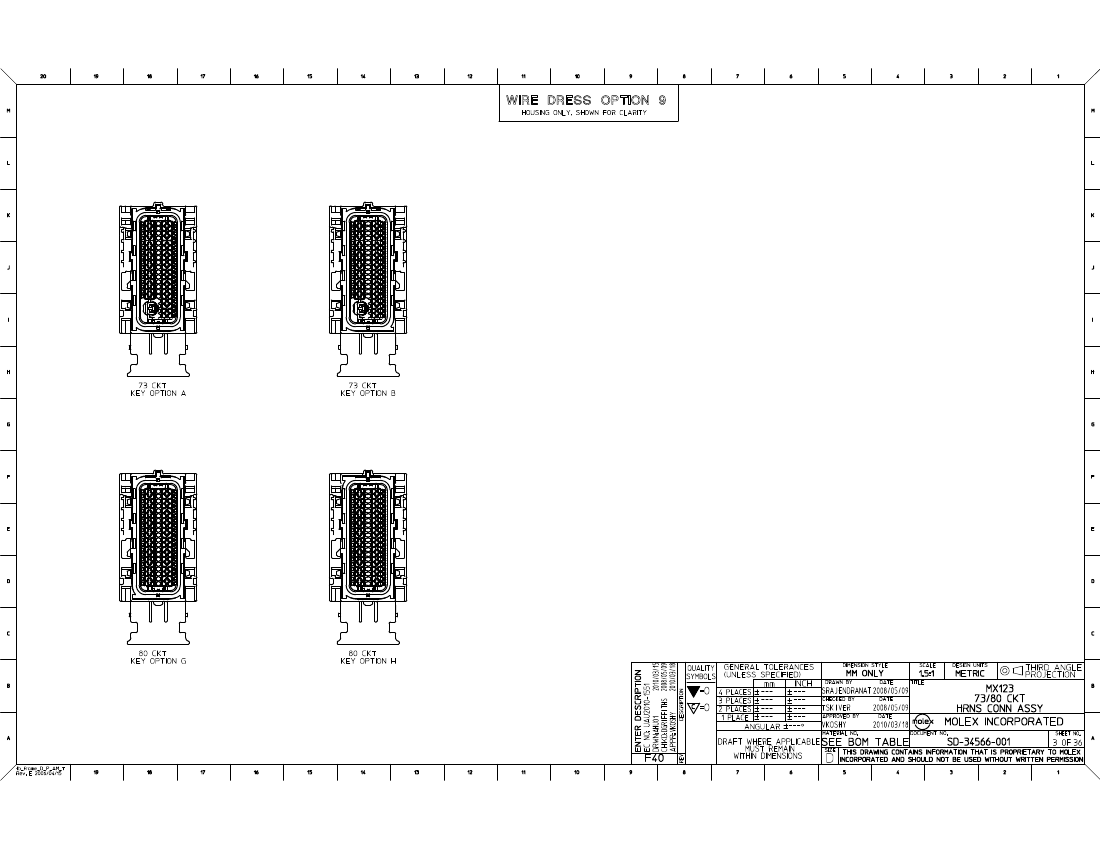

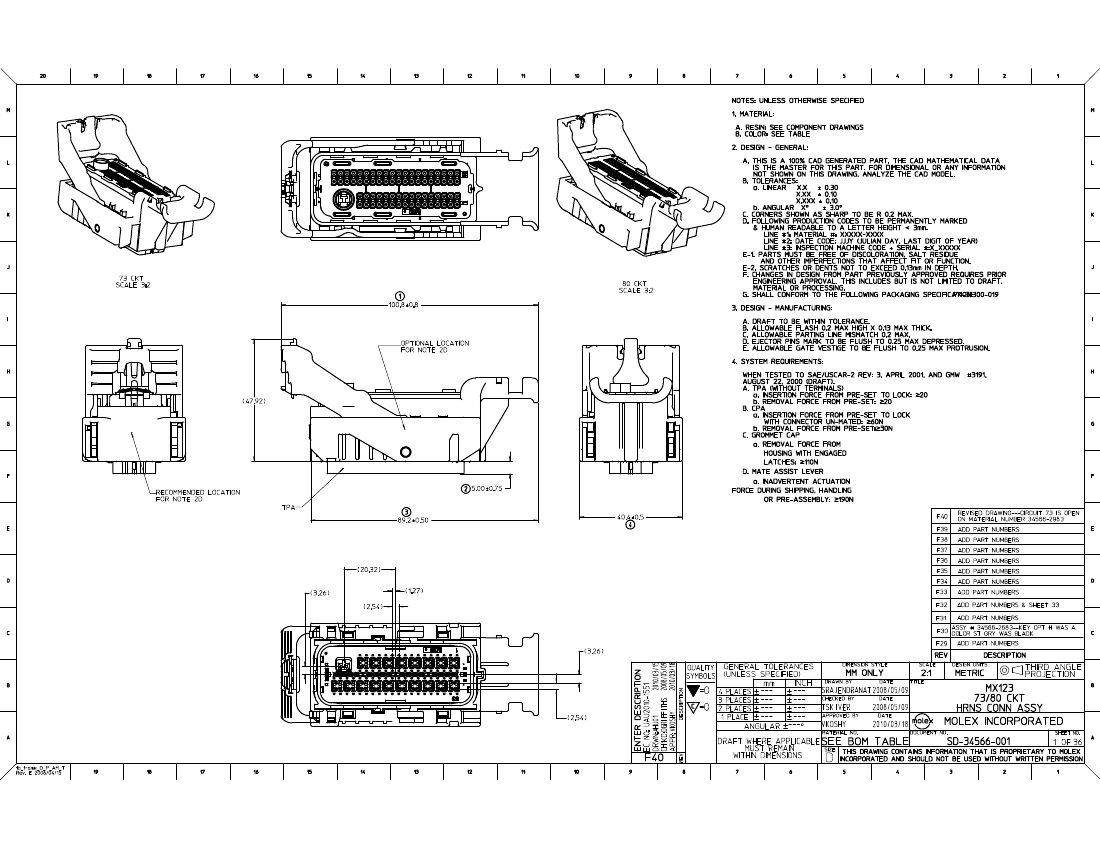

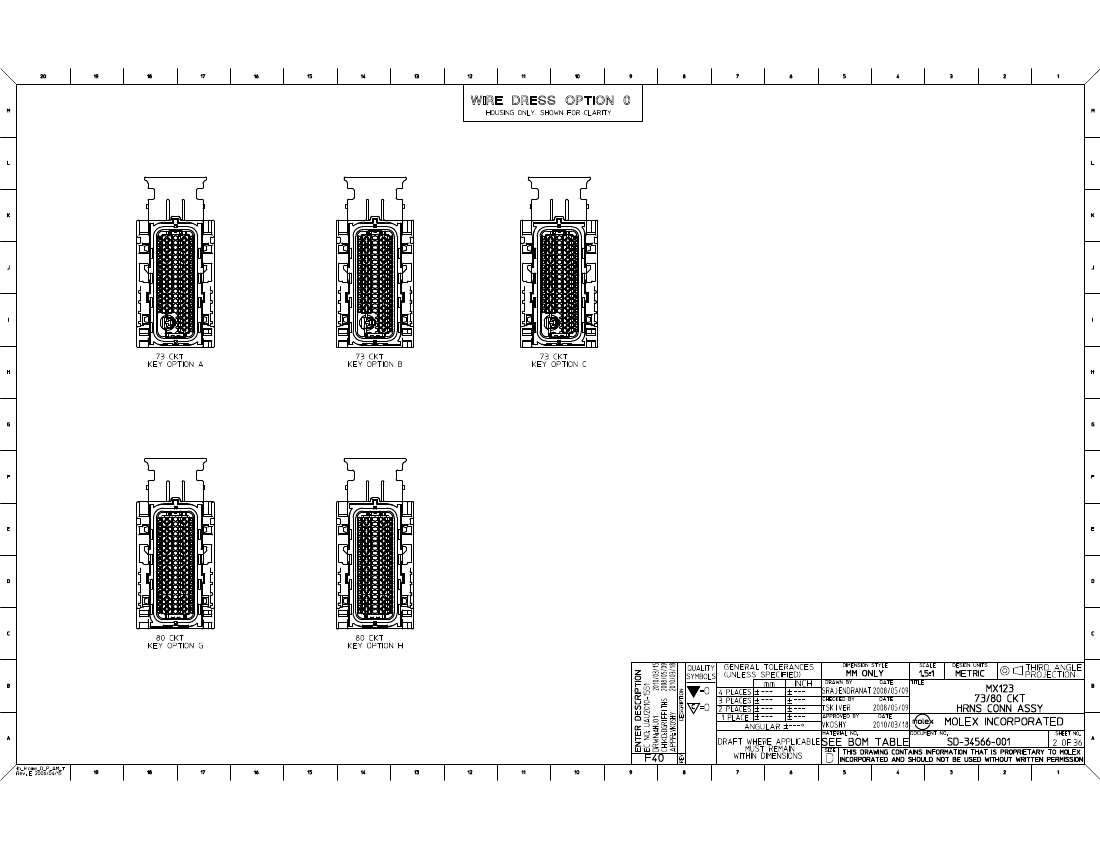

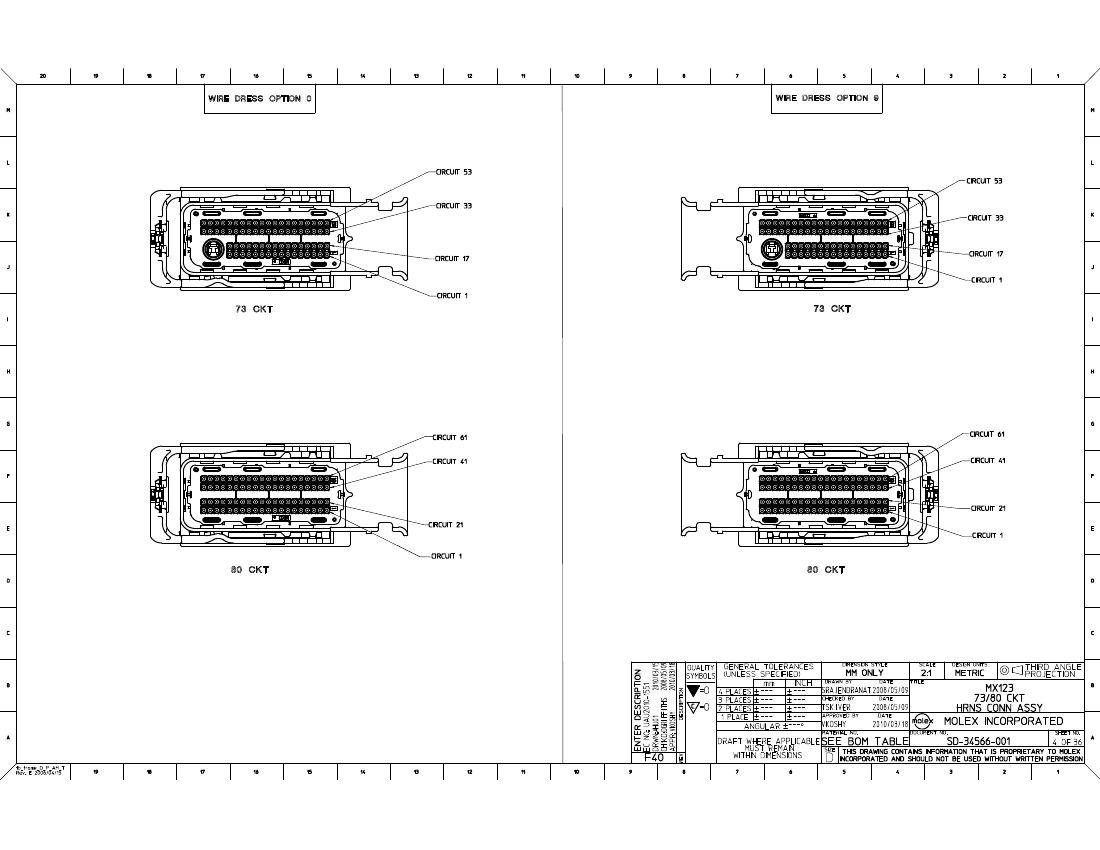

Drawing (PDF)
Product Specification PS-34566-0000 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
34566
See Sales Drawing for number of Open Circuits
mx123_sealed_connection_systems
MX123

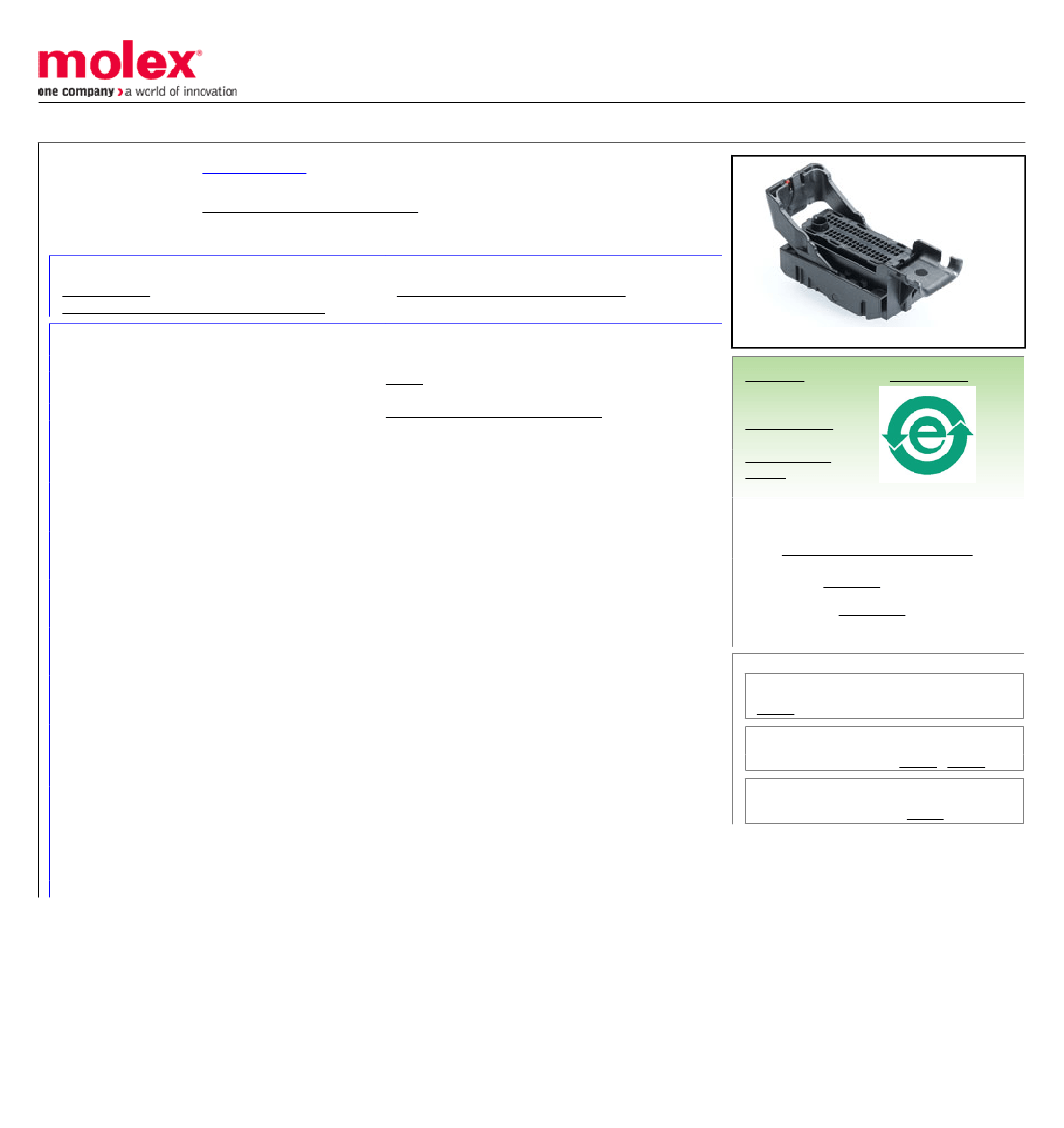

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
73
73
Blue
Female
No
Yes
Yes
Nylon
4
Tray
No
0.100 In
2.54 mm
0.100 In
2.54 mm
Yes
No
-40°C to +125°C
Search Parts in this Series
34566Series
Mates With
MX123 Female Header 31386 , 31387
Use With
MX64 Female Terminals 33467
Electrical
Current - Maximum per Contact
11A, 25A
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
AS-34566-001
PS-34566-0000
