71661-1030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71661-1030

71661-1030: Description30 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size221KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

71661-1030 Overview

30 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG

71661-1030 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Is Samacsys	N
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (50) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

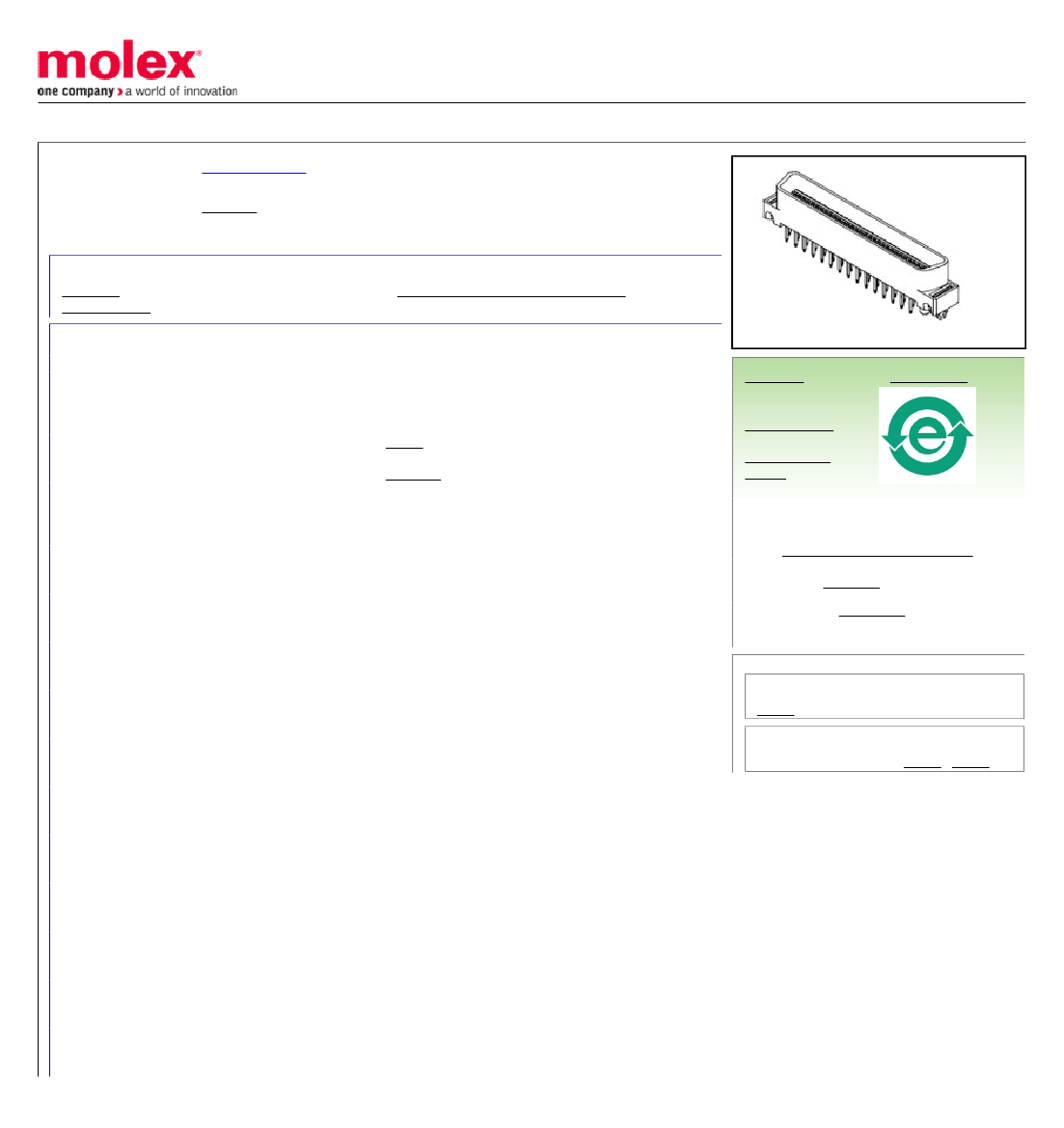

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015922030

Active

ebbi_50d

1.27mm (.050") Pitch EBBI™ 50D Plug, Vertical, without Latch, 30 Circuits, 3.40mm

(.134") PC Tail Length

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

71661

Board-to-Board, Wire-to-Board

ebbi_50d

EBBI™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Black

2,000

94V-0

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Vertical

0.134 In

3.40 mm

Yes

0.062 In

1.60 mm

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.76

1.91

Yes

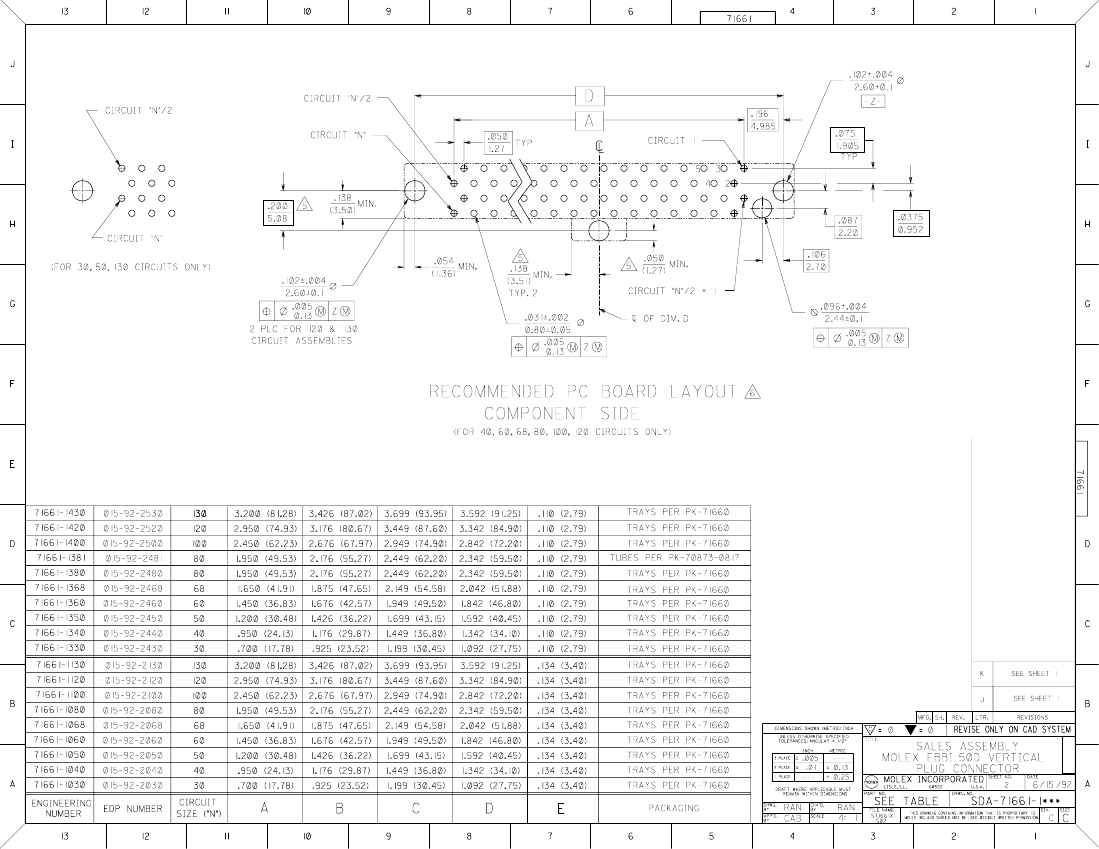

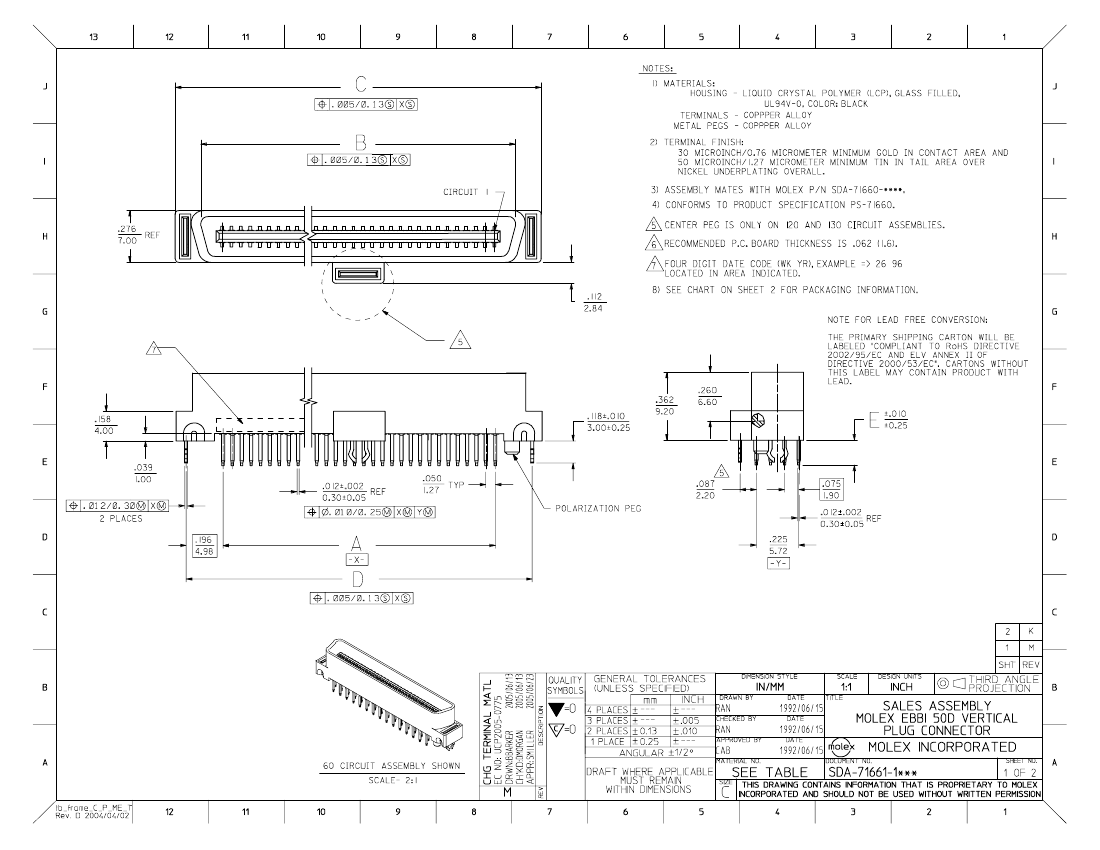

Search Parts in this Series

71661Series

Mates With

EBBI™ 50D Receptacle 71660 , 87552

71661-1030 Related Products

	71661-1030	015-92-2030	716611030
Description	30 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	30 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	30 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG
Maker	Molex	Molex	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-
Reach Compliance Code	unknow	compliant	-
Is Samacsys	N	N	-
Body/casing type	PLUG	PLUG	-
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-
Contact completed and terminated	TIN (50) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	-
Contact point gender	MALE	MALE	-
Contact material	NOT SPECIFIED	COPPER ALLOY	-
DIN compliance	NO	NO	-
empty shell	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
JESD-609 code	e3	e3	-
MIL compliance	NO	NO	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	-
Installation type	BOARD AND PANEL	BOARD AND PANEL	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-
Termination type	SOLDER	SOLDER	-
Total number of contacts	30	30	-
UL Flammability Code	94V-0	94V-0	-
Base Number Matches	1	1	-
