BB-827-10

Description
Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire
CategoryThe connector
File Size106KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

BB-827-10 Overview

Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire

BB-827-10 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesFORK TERMINAL
Conductor cross section2 mm2
Wire gauge14 AWG

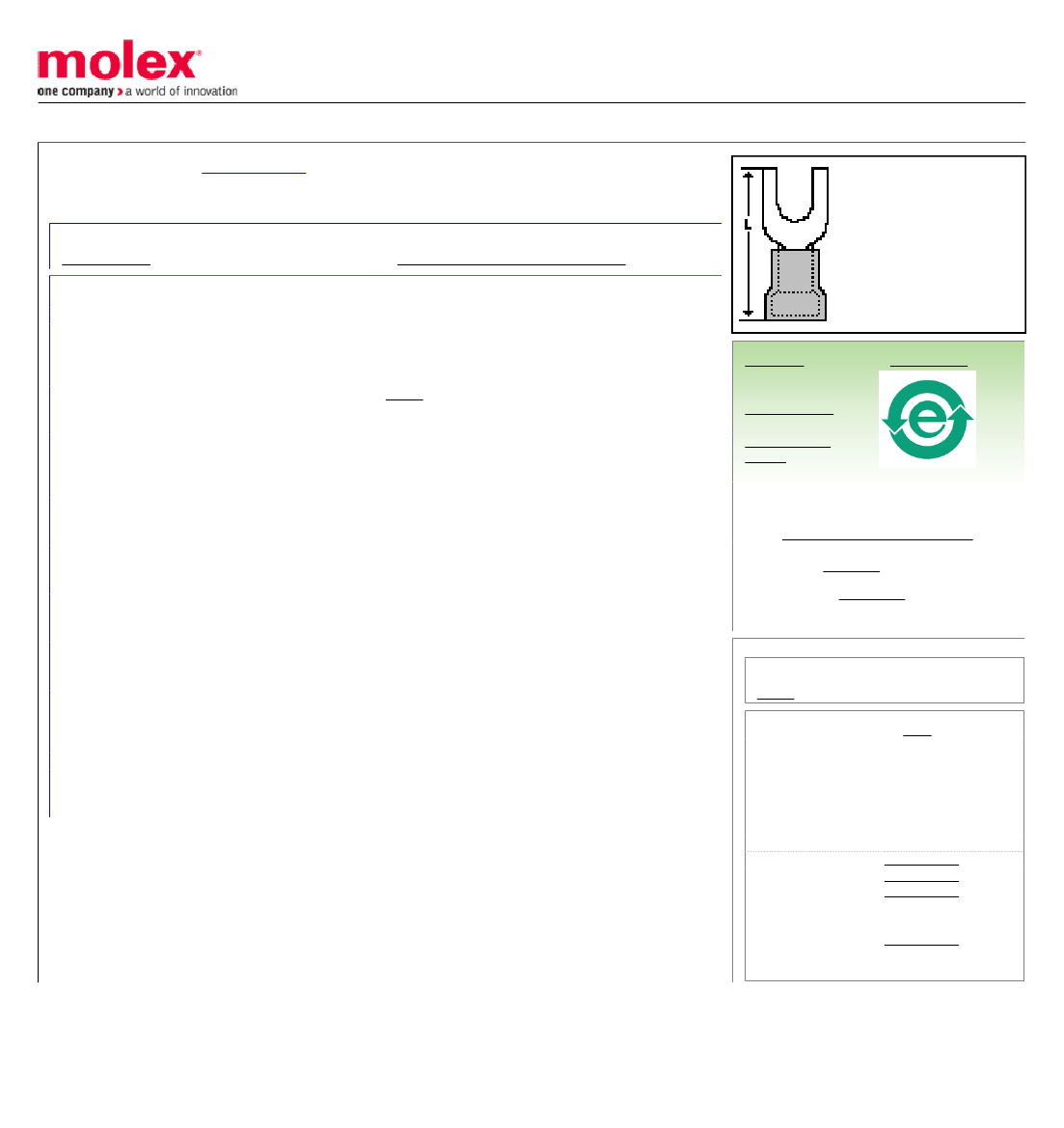

This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191980025
Active
Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19198
Yes
N/A
Avikrimp™
Spade
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-0
Nylon (PA)
Tin
Bag
100
2.5
100
2.5
10 (M5)
Crimp or Compression
4.30mm (.170") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19198Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
BB-827-10
Reference - Drawing Numbers

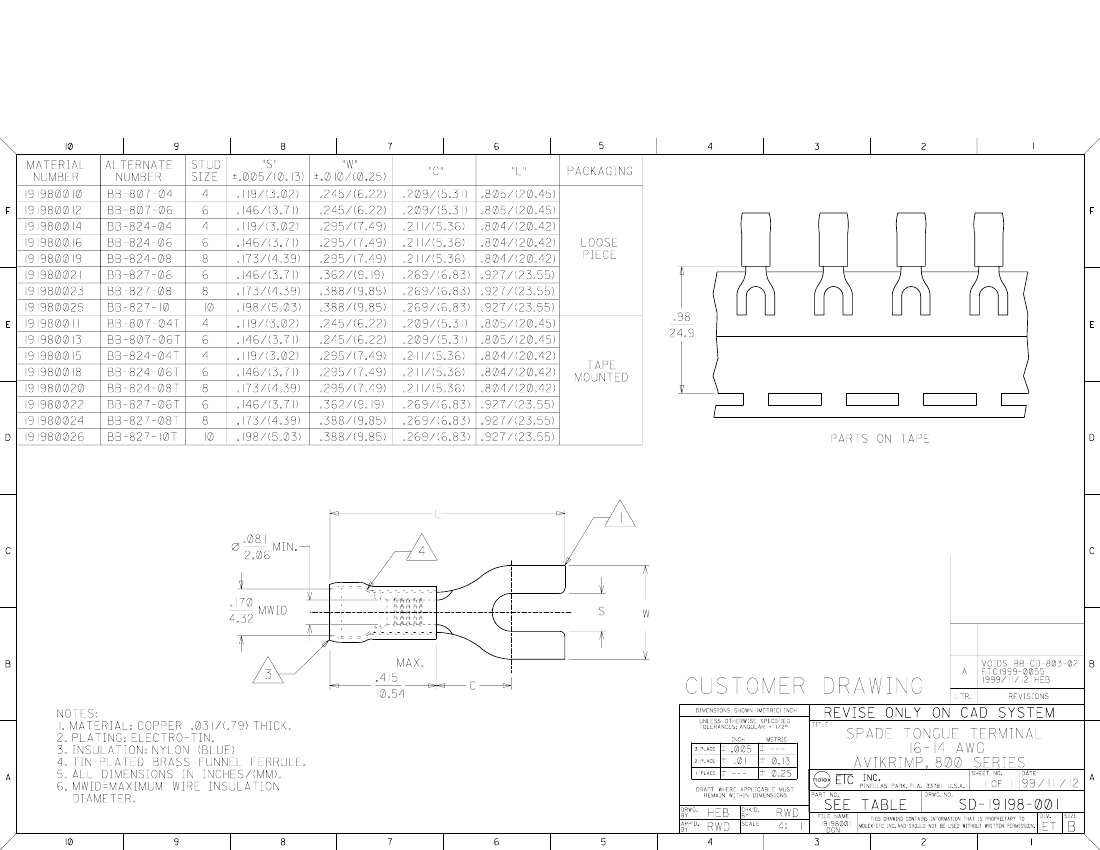

Sales Drawing
BBCD80302, SD-19198-001
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

BB-827-10 Related Products

BB-827-10 191980025 0191980025
Description Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire avikrimp? spade tongue terminal for 14-16 awg wire
Maker Molex - Molex
Reach Compliance Code unknow - compliant
ECCN code EAR99 - EAR99
Terminal and terminal strip types FORK TERMINAL - FORK TERMINAL
Conductor cross section 2 mm2 - 2 mm2
Wire gauge 14 AWG - 14 AWG
