Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191640053
Active
Perma-Seal™ Snap Plug Receptacle for 18-22 AWG Wire, Diameter 4.57mm (.180")
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19164
Yes
Perma-Seal™
Snap Receptacle
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
NiAc™
None
Brass
Tin
Tin
Nylon
Straight
Bag
100
2.5
100
2.5
N/A
N/A
-55°C to +125°C
Crimp or Compression
3.30mm (.130") max.
18, 20, 22
0.25 - 1.50
Search Parts in this Series
19164Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640014700
Crimp Head for the 0640054700
AT-200™ Pneumatic
Hand Tool
Electrical
CSA
Voltage - Maximum
LR18689
600V
Material Info
Old Part Number
SBRA-8180N

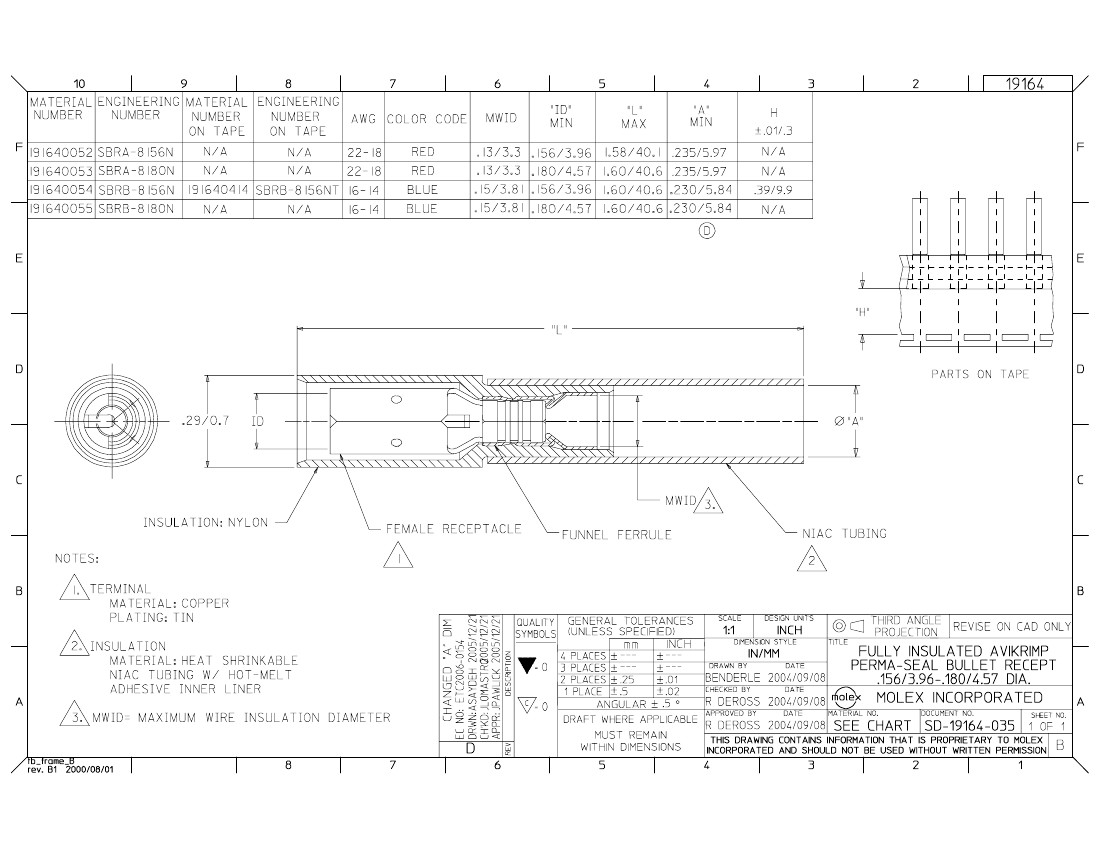

Reference - Drawing Numbers
Sales Drawing
SD-19164-035
