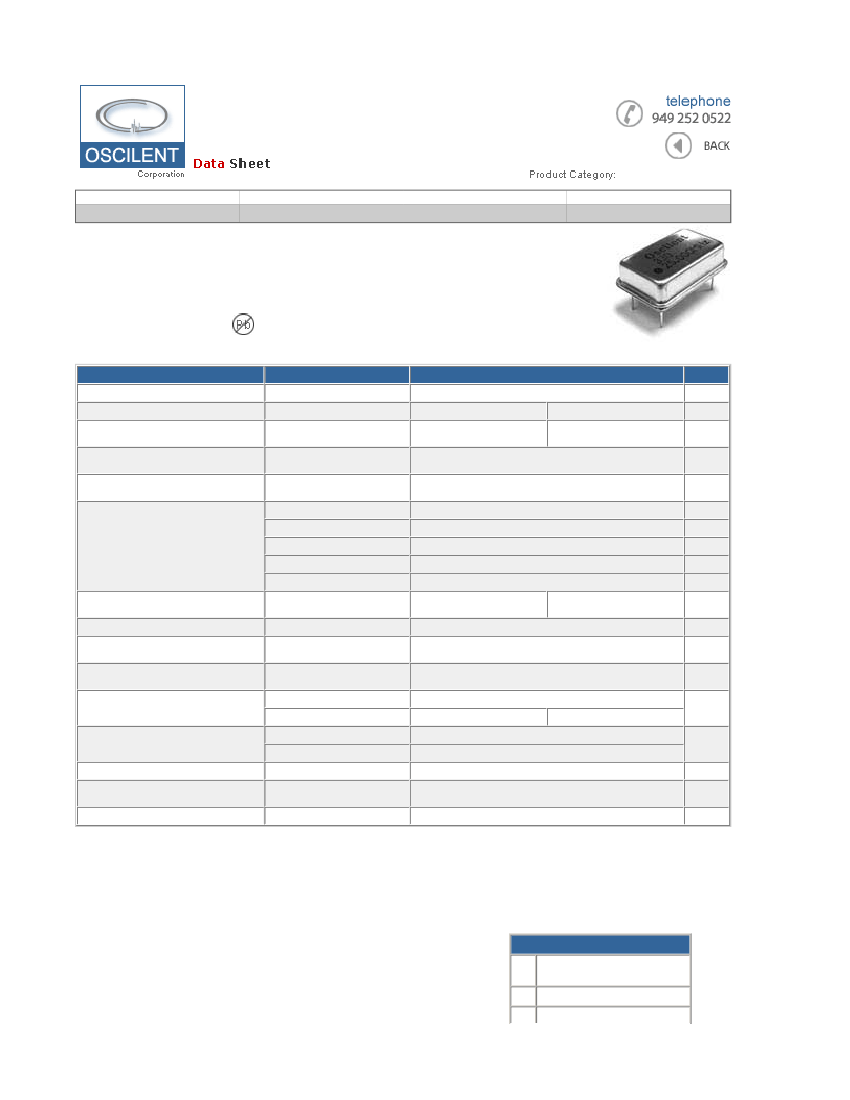

Oscilent Corporation | 330 Series Crystal Oscillator
Page 1 of 3
Crystal Oscillator
Series Number
Package
Description
Last Modified
330
FEATURES
- HCMOS/TTL logic compatible
- Wide frequency range
- Low power consumption
- 5V or 3.3V optional
- RoHs / Lead Free compliant
Metal Dip Full Size
Clock Oscillators
July 01 2005
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Output Logic
Input Voltage (VDD)
Frequency Range (f
O
)
Operating Temperature (T
OPR
)
Storage Temperature (T
STG
)
Overall Frequency Stability
CONDITIONS
-
-
-
-
-
a+b+c+d
(a) Frequency Tolerance
(b) Temperature Stability
(c) Input Voltage Stability
(d) Load Stability
Input Current (I
DD
)
Aging
Rise Time (T
R
) / Fall Time (T
F
)
Rise Time (T
R
) / Fall Time (T
F
)
Output Voltage High "1" VOH
Output Voltage Low "0" VOL
Duty Cycle
Start-Up Time (T
S
)
Jitter
-
@ 25°C
< 66.660 MHz
66.660 MHz
TTL Load
HCMOS Load
TTL Load
HCMOS Load
-
-
(One Sigma)
2.7 min.
0.4 max.
0.5 max.
50 ±10 (Std.) / 50 ±5 (Option)
10 max.
±25 max.
CHARACTERISTICS
HCMOS / TTL Output
3.3 ±10%
0.50 ~ 125.000
5.0 ±10%
0.50 ~ 125.000
UNITS
-
VDC
MHz
°C
°C
PPM
-
-
-
-
mA
PPM/Y
nS
nS
VDC
VDC
%
ms
ps
0 ~ +70 (Std.) / -40 ~ 85 (Option)
-55 ~ +125
±20, ±25, ±50, ±100 max.
Inclusive of Overall Stability
Inclusive of Overall Stability (Operating Temperature)
Inclusive of Overall Stability (VDD ±5%)
Inclusive of Overall Stability (RL ±5%)
10 ~ 45 max.
±5 max.
10 max. (0.4V to 2.4V w/ TTL, Waveform / HCMOS)
4 max. (0.4V to 2.4V w/ TTL, Waveform / HCMOS)
2.4 min.
VDD-0.5 min.
15 ~ 85 max.
PIN CONNECTIONS
#1
#7
No Connection or Tri-State
Enable High
Case Ground
Oscilent Corporation | 330 Series Crystal Oscillator
Page 2 of 3
#8
Output
#14 Vdd
PART NUMBER GUIDE
Series
Number
Frequency
Voltage
Supply
Option
Frequency
Tolerance &
Stability (max.)
Operating Temp.
(°C)
Duty Cycle
Pin 1
Connection
Gullwing
330
Oscilent
Clock
Oscillators
- 2.0 M
-3
D=
E=
F=
G=
H=
E
±100 PPM
±50 PPM
±25 PPM
±20 PPM
±10 PPM
N
Blank* = 0~+70
N = -40~+85
-T
Blank*= 50±10%
T = 50±5%
TS
NC = No
Connnection
TS = Tri-State
Enable High
G
Blank* = Std.
G = Gullwing
Enter your desired 5 = 5VDC
frequency
e.g.
3 = 3.3VDC
12.0M =
12.000MHz
See
table below for
standard
frequencies.
NOTE:
- Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
- Click on the characteristic names above for definitions of that particular characteristic.
*STANDARDS:
- "Blank" part number selections indicate standard variables for that particular characteristic.
PACKAGING:
- Standard tube packaging, add
-TR
for Tape/Reel. Click
here
for tape/reel specifications
STANDARD OSCILLATOR FREQUENCIES
-
GUIDE ONLY / OTHER FREQUENCIES AVAILABLE
FREQUENCY (1.000 - 9.8304MHz)
1.000
1.2288
1.8432
2.000
2.4576
3.579545
3.6864
4.000
4.9152
5.000
FREQUENCY (10.00 - 24.000MHz)
10.00
11.0592
12.000
12.288
12.800
14.31818
14.7456
15.9744
16.000
16.257
FREQUENCY (24.576 - 80.000MHz)
24.576
25.000
25.175
28.322
30.000
32.000
32.514
33.000
35.000
40.000
Oscilent Corporation | 330 Series Crystal Oscillator
Page 3 of 3
5.0688
6.000
6.144
7.3728
8.000
9.216
9.8304
16.384
17.734475
18.000
18.432
19.6608
20.000
24.000
48.000
50.000
64.000
65.000
66.666
80.000
-
NOTE:
Other frequencies available. PLEASE SPECIFY IN PART NUMBER GUIDE
Series No.:
330
Crystal Oscillators
|
Quartz Crystal
|
TCXO
|
VCXO
|
IF SAW Filter
|
RF SAW Filter
|
Ceramic Resonator
Crystal Filter
|
Ceramic Filter
|
SAW Filter / SAW Devices
|
