35164-0900

Description
9 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP
CategoryThe connector    The connector
File Size87KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

35164-0900 Online Shopping

Suppliers Part Number Price MOQ In stock
35164-0900 - - View Buy Now

35164-0900 Overview

9 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP

35164-0900 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Other featuresCOMPATIBLE CONTACTS: 35047-9802; 35047-9810
body width0.14 inch
subject depth0.264 inch
body length0.913 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance5 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
maximum insertion force15.1232 N
Minimum insulation diameter0.045 inch
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.098 inch
Plug information35047-9802
Mixed contactsNO
Installation option 1DETENT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value1.946 N
Base Number Matches1
This document was generated on 04/28/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0351640900
Active
2.50mm (.098") Pitch Board-In Housing, 9 Circuits, Natural
Product Specification PS-35164-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Product Name
Crimp Housings
35164
Board-In
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
9
9
Natural
94V-0
Male
No
None
No
Nylon
1
Bag
No
0.098 In
2.50 mm
No
No
-40°C to +105°C
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
35164Series
Mates With
350479802 Board-In Terminal
Electrical
Current - Maximum per Contact
3A
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

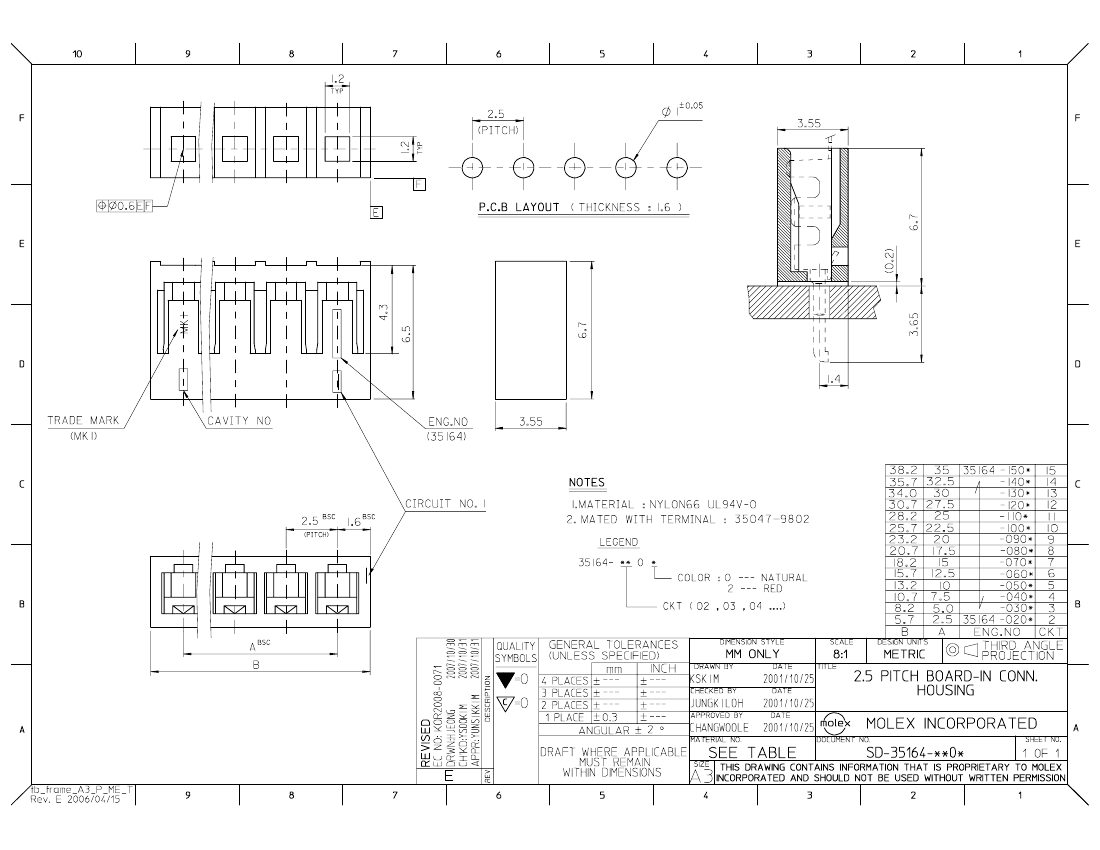

Sales Drawing
PK-35164-****
PS-35164-001
SD-35164-**0*
Use With
35407
This document was generated on 04/28/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
