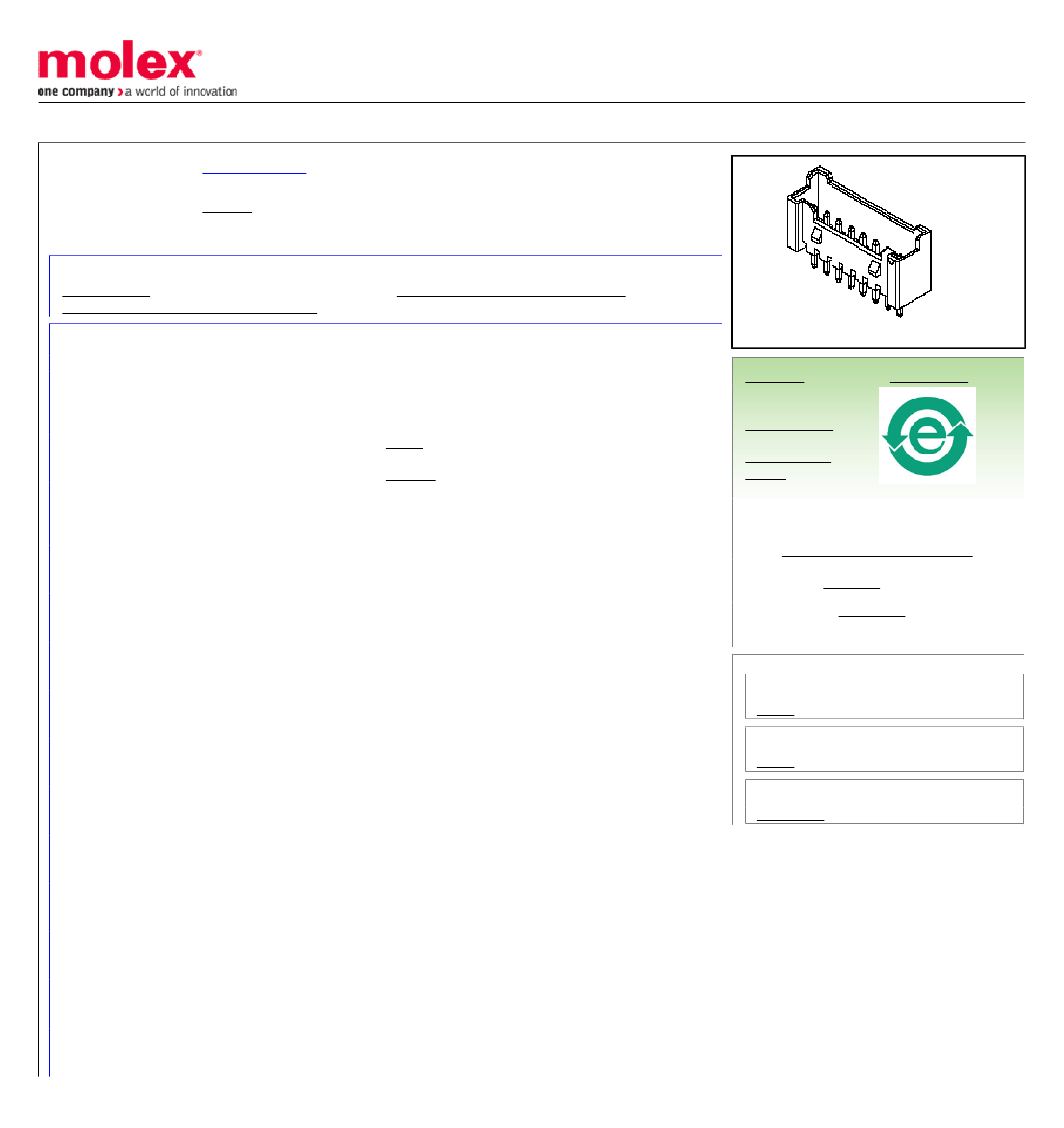

Part Number:
Status:
Overview:
Description:
0353620252
Active
sherlock
2.00mm (.079") Pitch Sherlock™ Wire-to-Board Header, Vertical, with Positive Lock, 2
Circuits, with Kinked PC Tails, Red
Documents:

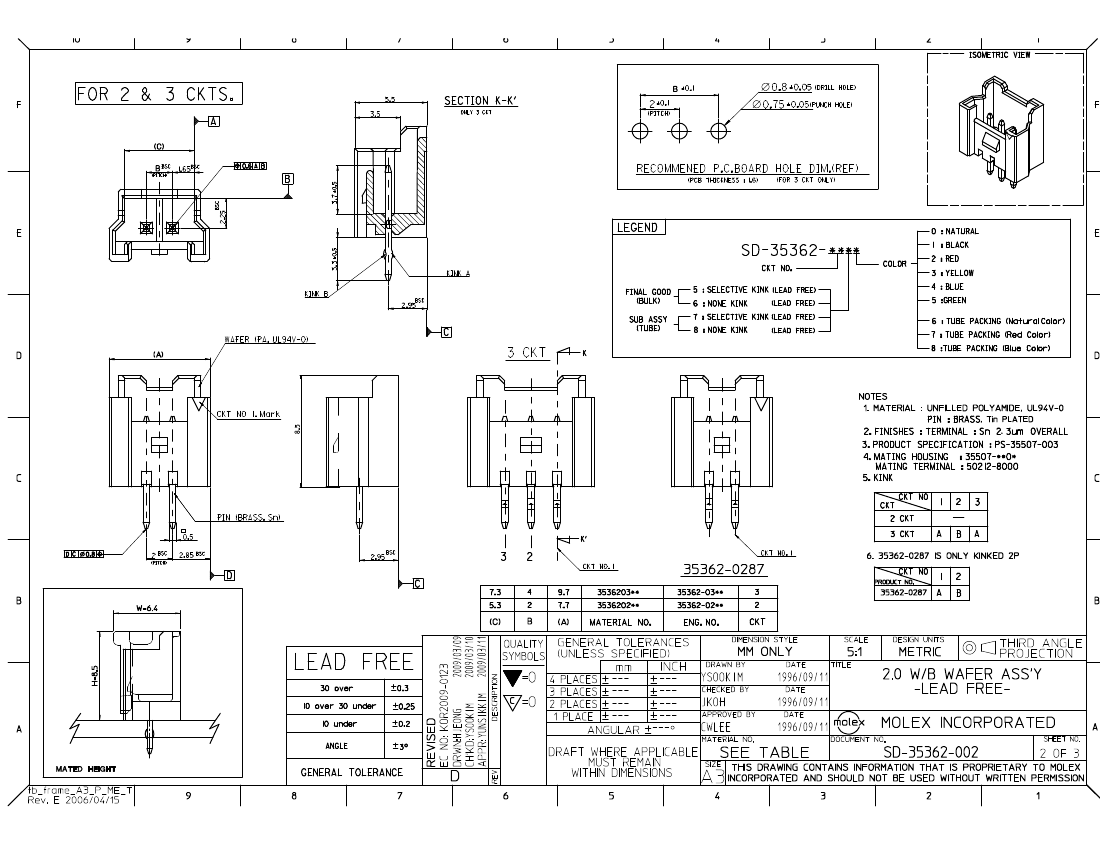

Drawing (PDF)
Product Specification PS-35507-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
35362
Wire-to-Board
sherlock
Sherlock™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
No
2
2
Red
30
No
94V-0
No
No
None
Yes
0.335 In
8.50 mm
Tin
Tin
Nylon
1
Vertical
0.130 In
3.30 mm
No
None
0.062 In
1.60 mm
Bag
0.079 In
2.00 mm
0.079 In
2.00 mm
Yes
No
Partial
No
No
Search Parts in this Series
35362Series
Mates With
35507 Sherlock™ Wire-to-Board Housing
Use With
502128000 Terminal
Temperature Range - Operating
Termination Interface: Style
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-35362-002
PS-35507-003, RPS-35507-005, RPS-35507-007,
RPS-35507-009
SD-35362-002, SD-35362-003
