Part Number:
Status:
Overview:
Description:
0038002405
Active
kk

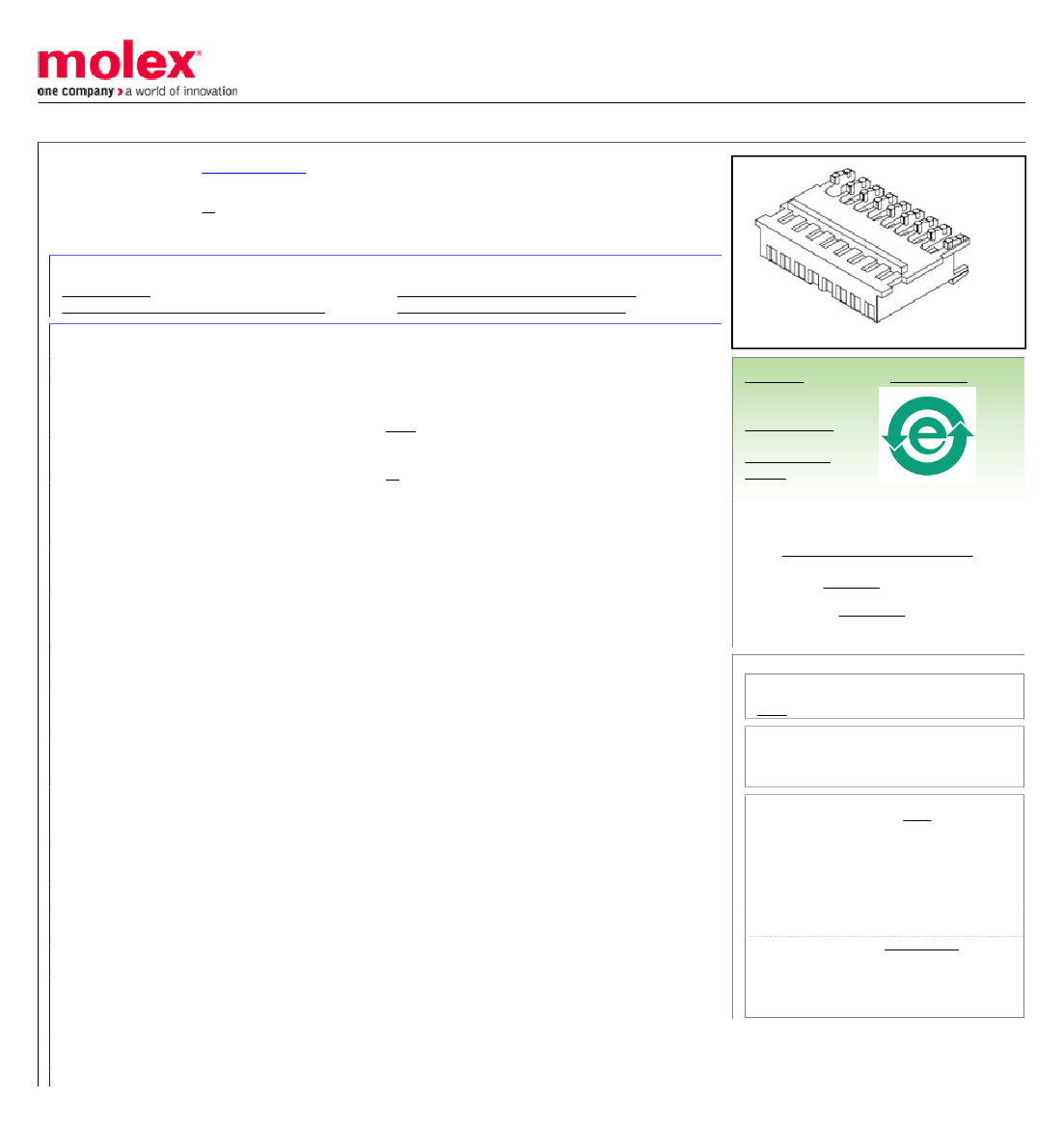

2.54mm (.100") Pitch KK® Connector, IDT, High Pressure Cat Ear Contact System,
Green ID Stripe, 15 Circuit
Documents:

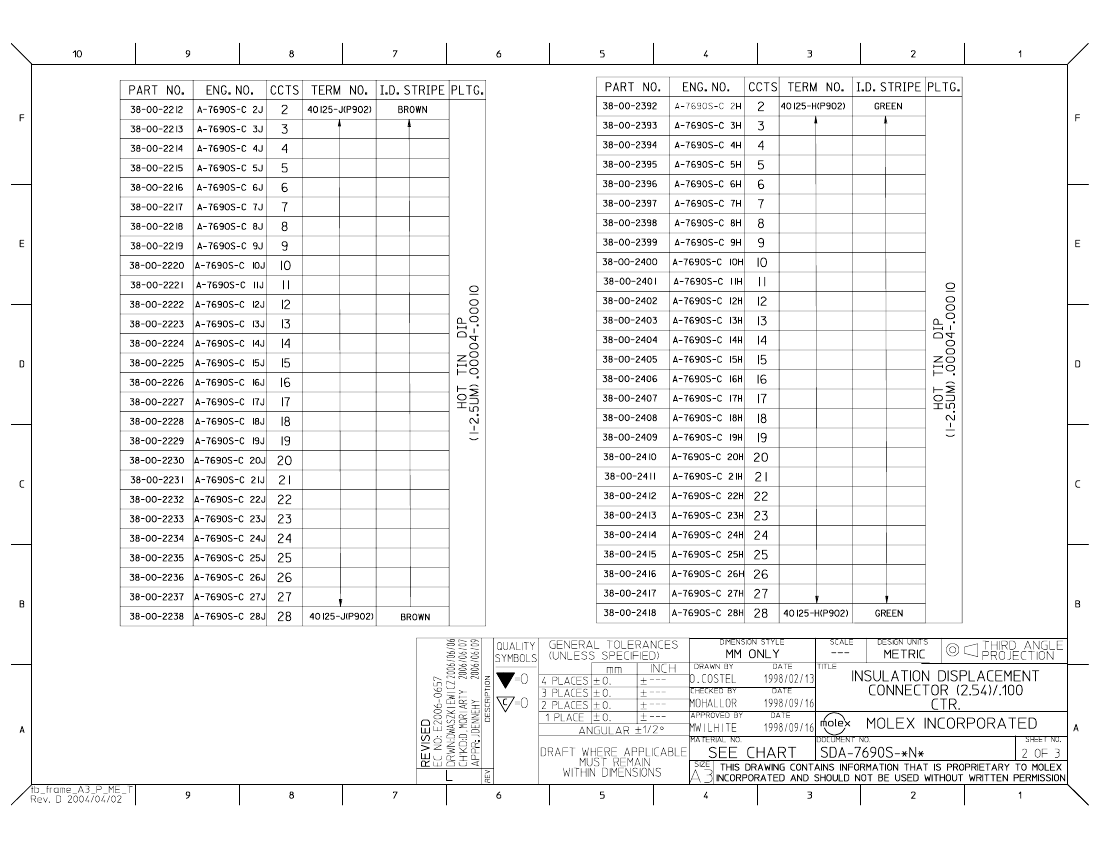

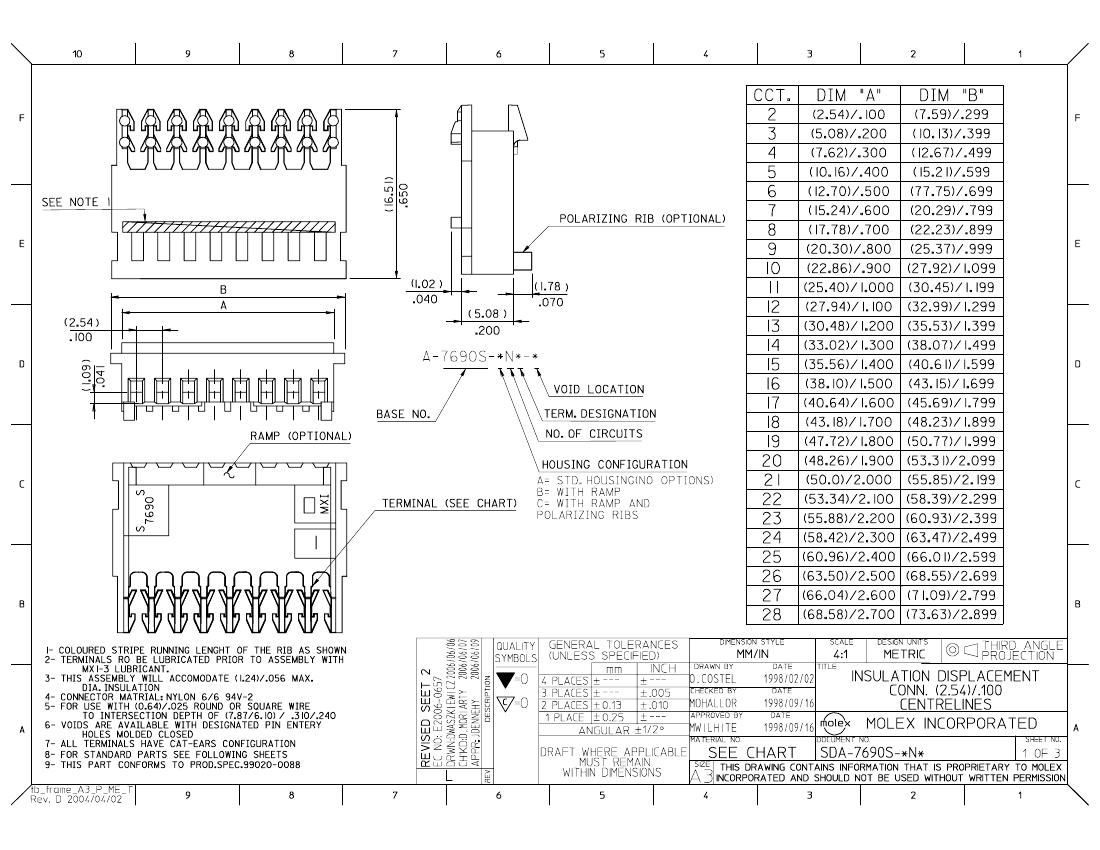

Drawing (PDF)
Product Specification PS-99020-0088 (PDF)
Product Specification PSX-7690S (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
IDT and Solder Connectors
7690
Version H
Yes
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Wire Size AWG
15
Natural
25
94V-2
Female
No
Yes
Brass
Tin
Tin
Nylon
1
Bag
No
0.100 In
2.54 mm
40
1.00
40
1.00
0°C to +75°C
24 Stranded, 26 Solid, 26 Stranded Topcoat
Search Parts in this Series
7690Series
Mates With
Molex KK® 2.54mm (.100") pitch headers
and 0.64mm (.025") pins
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Changehead for
0690080225
7720 and 7720s
Connector Range,
Colour Bar In, Feed-
To Only
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
7690SC15H
Reference - Drawing Numbers
Packaging Specification
PK-7690-001
