39-34-8163: Description4.20mm; File Size111KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

39-34-8163 Overview

4.20mm

Preview

Download Datasheet

View All

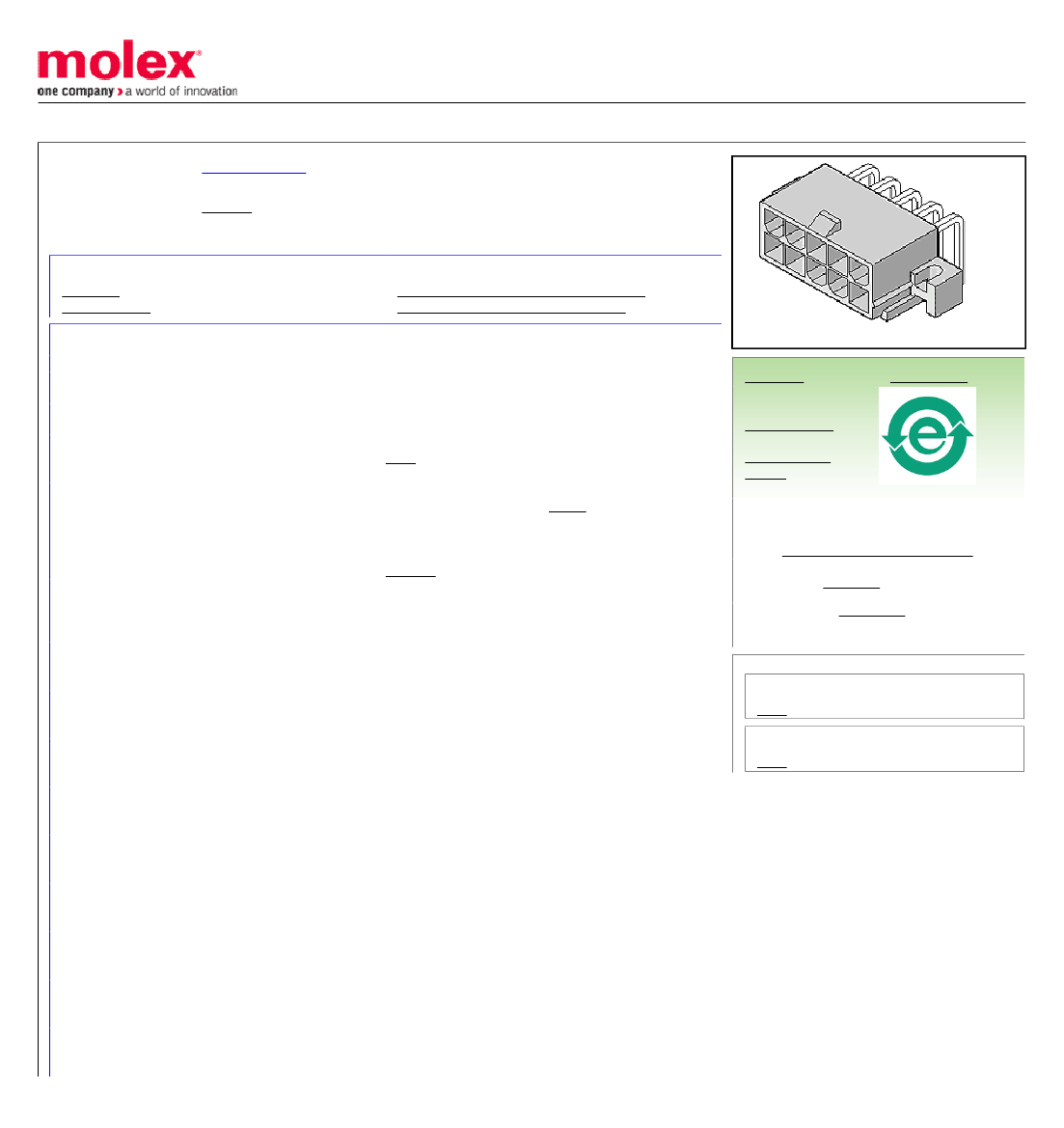

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039348163

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Flange, 16

Circuits, 66 Nylon 94V-0, Tin Plating

Documents:

3D Model

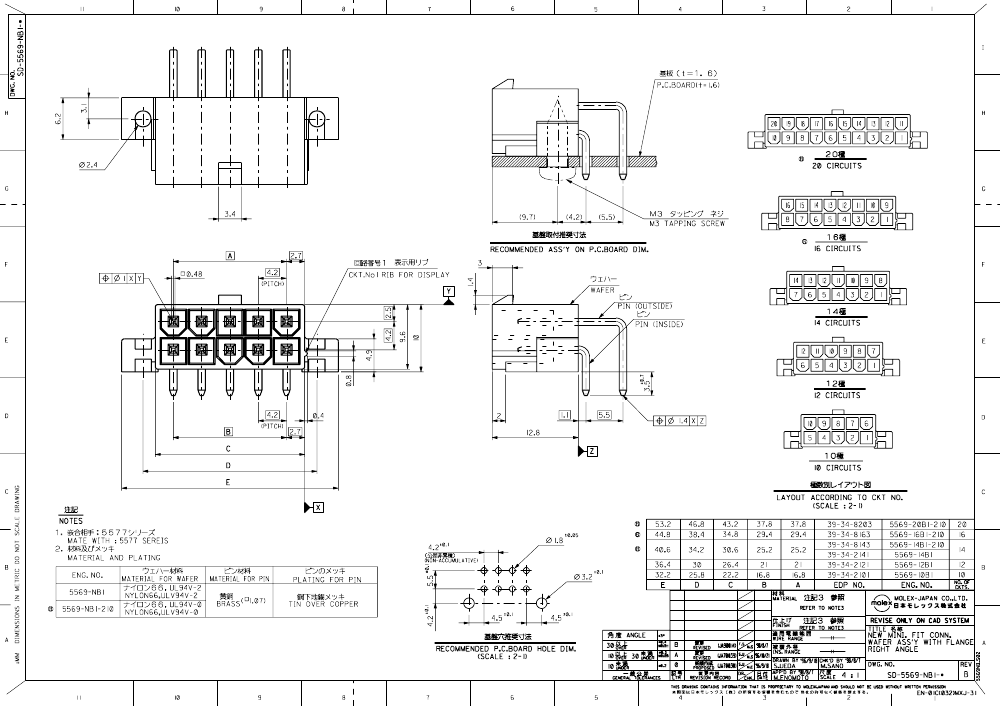

Drawing (PDF)

Product Specification PS-5557-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Comments

PCB Headers

5569

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex Product specification PS-5556-001 for additional

current de-rating information.

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Natural

94V-2

None

Yes

Brass

Tin

Nylon

Right Angle

0.138 In

3.50 mm

Yes

0.063 In

1.78 mm

Bag

0.165 In

4.20 mm

0.165 In

Search Parts in this Series

5569Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

39-34-8163 Related Products

	39-34-8163	0039348163	5569-16B1-210
Description	4.20mm	4.20mm	4.20mm (.165") pitch mini-fit Jr.? header, dual row, right angle, with flange, 16 circuits, 66 nylon 94v-0, tin Plating

Recommended Resources
